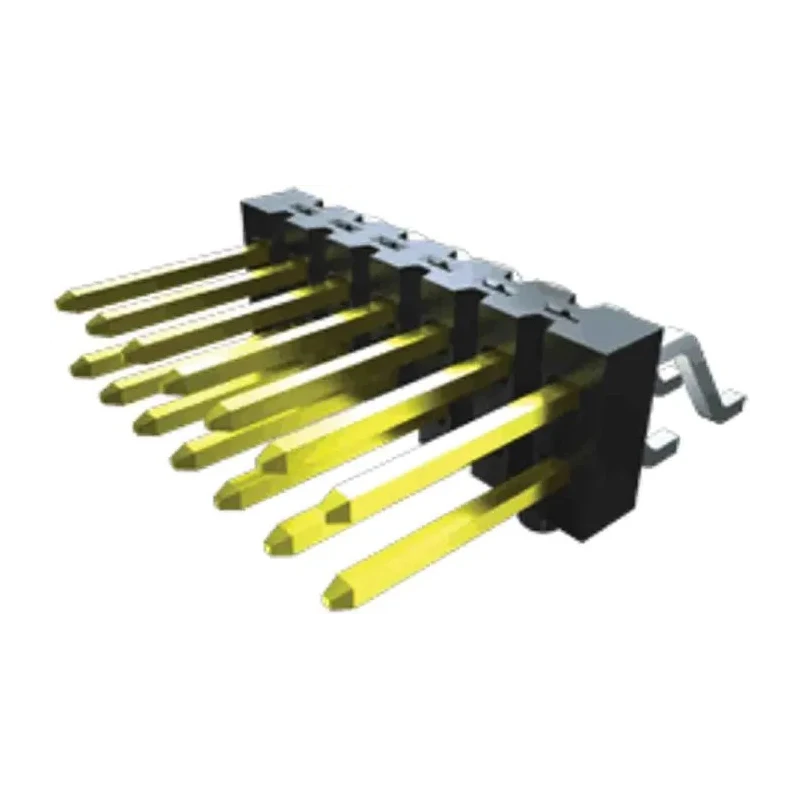

Samtec TSM Series Horizontal Surface Mount Pin Header 10 Contacts 2.54 mm Pitch 2 Rows Unshrouded TSM-105-02-T-DH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 5.4A |
| Model | TSM-105-02-T-DH |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Plating used | Au or Sn over 50 μ" (1.27 μm) Ni |
Key Features
- Features a 2.54 mm pitch and 2 rows for compact PCB layouts.
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze male contacts plated with gold for excellent conductivity.
- Capable of carrying 5.4A current at up to 475V voltage rating.
- Designed for surface mounting with solder termination for secure fixing.
- Operates reliably from -55°C to 125°C temperature range.
- Unshrouded design facilitates easy mating and inspection.
- RoHS compliant for environmental safety.
Product Description
Samtec TSM-105-02-T-DH is a high-quality horizontal surface mount pin header designed for printed circuit board (PCB) applications. This pin header features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, providing a compact and reliable board-to-board connector solution suited for industrial electronics, automotive, and telecommunications.
The housing is made of black liquid crystal polymer, offering excellent insulation and mechanical strength under demanding conditions. The contacts are fabricated from phosphor bronze and plated with gold over nickel to ensure low contact resistance and corrosion resistance.
This connector supports a current rating of 5.4 amperes and can handle voltages up to 475 volts, making it suitable for a wide range of electronic circuits requiring robust electrical performance. The operating temperature range from -55°C to +125°C ensures stable operation in harsh environments.
Termination is through soldering, allowing easy integration into surface mount PCB assemblies. The unshrouded layout of the header eases visual inspection and connector mating operations. The product fully complies with RoHS environmental directives, ensuring safe use in modern electronic equipment.
Applications include industrial automation equipment, communication devices, consumer electronics, and any PCB design requiring a dependable and compact horizontal pin header connector.
Features a 2.54 mm pitch and 2 rows for compact PCB layouts. Constructed with liquid crystal polymer housing for durability. Phosphor bronze male contacts plated with gold for excellent conductivity. Capable of carrying 5.4A current at up to 475V voltage rating.
Designed for surface mounting with solder termination for secure fixing. Operates reliably from -55°C to 125°C temperature range. Unshrouded design facilitates easy mating and inspection. RoHS compliant for environmental safety.
Explore our category for more PCB Pin Headers and connectors from Samtec to find the ideal component for your electronic assembly needs at EnvMart.
