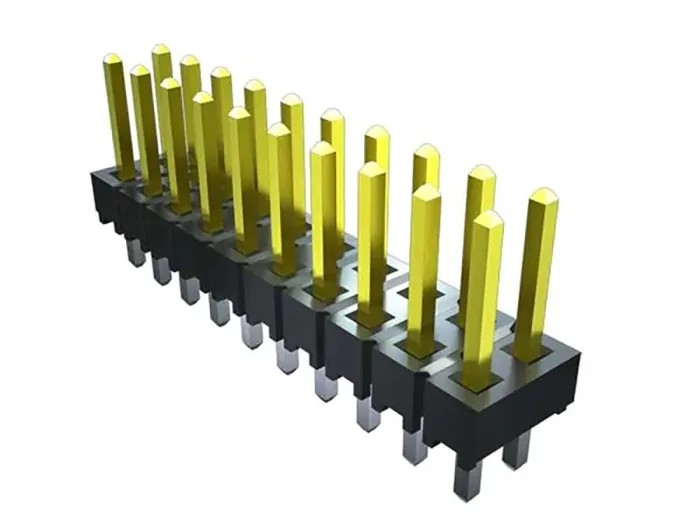

Samtec Pin Header 100 Contacts 2.54 mm Pitch 2 Row Unshrouded Through Hole TSW-150-07-F-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Model | TSW-150-07-F-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Constructed with glass filled polyester housing for durability.
- Features 2 rows of straight, unshrouded male contacts.
- Contacts made of phosphor bronze with gold plating for enhanced conductivity.
- Designed for through-hole mounting with solder termination.
- Operates within a temperature range from -55°C to 125°C.
- Supports voltage of up to 550 V.
- Implements a .025" (0.635 mm) square post contact system for secure connections.
- Ideal for electronic, industrial and power connector applications.
Product Description
Samtec TSW-150-07-F-D is a pin header designed for robust electronic connections in PCB assemblies. This model features 100 male contacts arranged in 2 rows with a 2.54 mm (0.1 inch) pitch, allowing for precise board-to-board interface in a wide range of electronic components and devices.
The housing is made from glass filled polyester, providing high mechanical stability and heat resistance. Contacts are fabricated from phosphor bronze and plated in gold to ensure excellent conductivity and corrosion resistance. This unshrouded connector supports through-hole solder termination, enhancing mechanical support during assembly.
Operating temperatures range from -55°C to 125°C, making it suitable for diverse industrial and commercial environments. It is rated for voltages up to 550 V, providing safe electrical performance in power distribution and industrial control applications.
The .025" square post contact system employed in this series contributes to high reliability with extended mating cycles, aligning well with demanding applications in industrial manufacturing, electronic testing equipment, and power connectors.
Constructed with glass filled polyester housing for durability. Features 2 rows of straight, unshrouded male contacts. Contacts made of phosphor bronze with gold plating for enhanced conductivity. Designed for through-hole mounting with solder termination.
Operates within a temperature range from -55°C to 125°C. Supports voltage of up to 550 V. Implements a .025" (0.635 mm) square post contact system for secure connections. Ideal for electronic, industrial and power connector applications.
This Samtec TSW series product is widely used in electronic component manufacturing, PCB assembly, industrial control systems, test instrumentation, and other applications requiring reliable board-to-board connectors. Its industry-standard pitch and pin count provide ease of integration and compatibility.
Explore more Samtec products and PCB Pin Headers on EnvMart to find the perfect fit for your industrial, commercial, and electronics projects.
