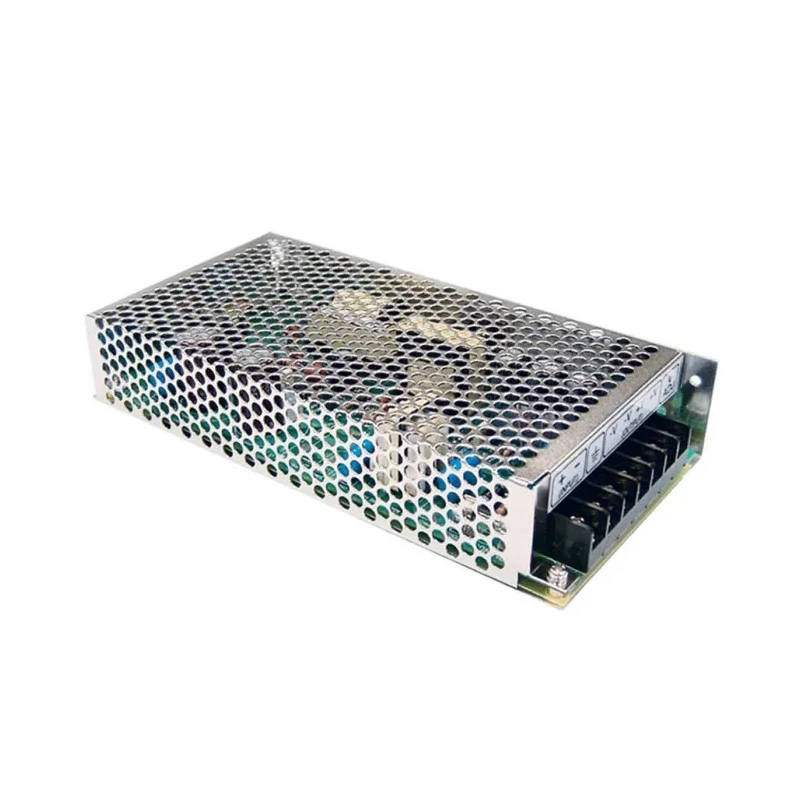

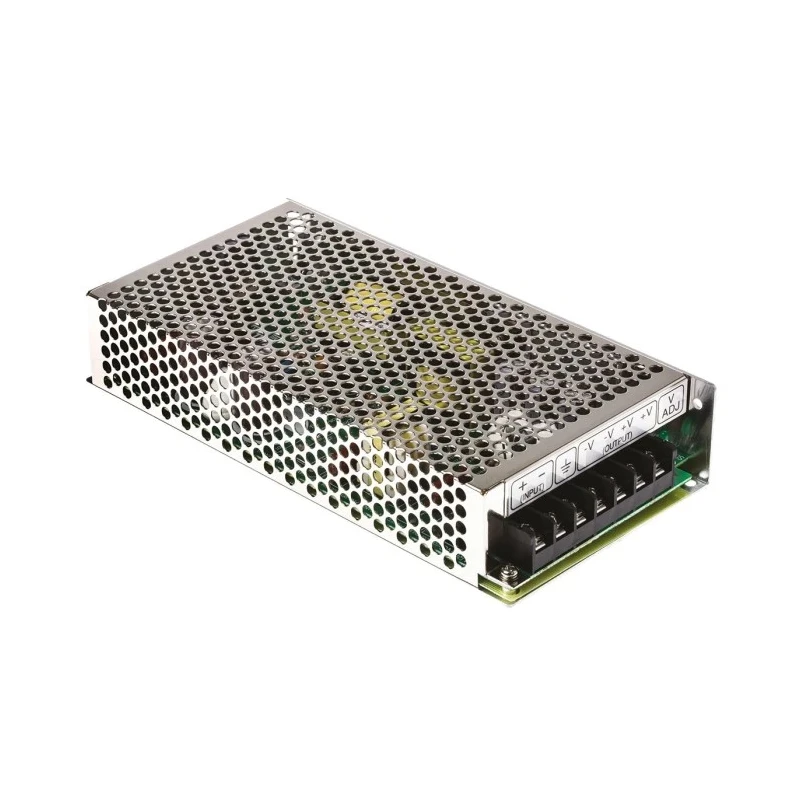

MEAN WELL DC/DC Converter, 12V DC Output, 36V to 72V Input Voltage, 102W Power, Surface Mount, -10°C to 60°C SD-100C-12

MEAN WELL SD-100C-12 DC/DC Converter is a single output, enclosed, regulated, and isolated converter designed to deliver a stable 12V DC output from a wide input voltage range of 36V to 72V DC. It provides a maximum output power of 102W with an output current capability up to 8.5A, making it suitable for various industrial, laboratory, and electronic applications requiring reliable power conversion.

This surface-mounted converter features a compact size with dimensions of 199mm in length, 98mm width, and 38mm depth, and weighs approximately 650 grams. It is designed to operate efficiently with 77% efficiency, ensuring reduced energy loss and less heat generation. The device supports a broad operating temperature range from -10°C minimum to 60°C maximum, allowing deployment in diverse environmental conditions.

The SD-100C-12 model comes with multiple protective features including short circuit, overload, and overvoltage protection, alongside a 1.5kV AC isolation voltage between input and output to enhance safety and device stability. The LED power-on indicator gives visual confirmation of operational status. The converter complies with EN and IEC standards for electromagnetic compatibility (EMC) and safety, ensuring dependable performance in demanding industrial and manufacturing settings.

Its wide 2:1 input voltage ratio enables adaptable input sources, making it ideal for power supplies in telecommunication equipment, industrial automation, and embedded systems. Installation is straightforward with screw terminal connections for secure wiring. The device is highly reliable with an MTBF calculated to 2,600,200 hours, underscoring its long service life and robustness.

MEAN WELL's SD-100C-12 DC/DC Converter is an excellent choice for power supply and distribution needs in industrial tools, laboratory instrumentation, water treatment controls, HVAC systems, and electronic system integration environments.

Wide input voltage range of 36V to 72V DC for flexible system compatibility. Stable 12V DC output with a maximum output power of 102W. Surface mount type with compact form factor (199 x 98 x 38 mm). Excellent operating temperature tolerance from -10 to 60°C.

Protection features for short circuit, overload, and overvoltage. High isolation voltage of 1.5kV AC between input and output. Meets EN/IEC safety and EMC standards ensuring reliable operation. LED indicator for power status monitoring.

For more options and details, explore MEAN WELL DC/DC Converter category on EnvMart.
