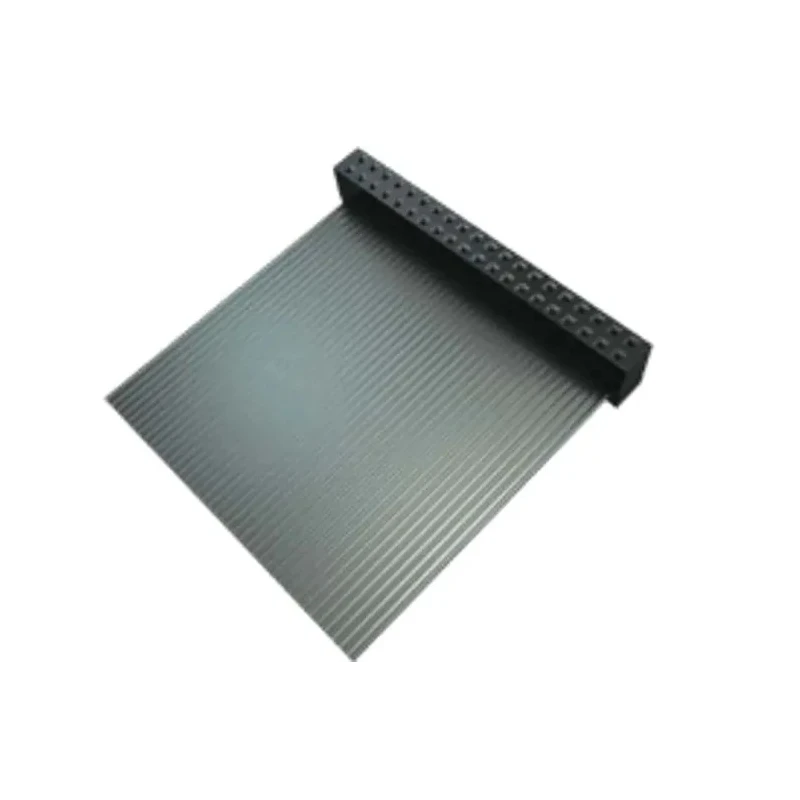

Samtec Slim Body Flat Ribbon IDC Ribbon Cable 2.54 mm Pitch 508 mm Length IDSD-05-D-20.00-T
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 425, 600V ac |
| Brand | Samtec |
| Model | IDSD-05-D-20.00-T |
| Cable Length | 508mm |
| Series | IDSD |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Tin Copper Wire |
| Cable Type | Slim Body Flat Ribbon IDC |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Glass Filled Polyester |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Jacket Colour | Grey |
| American Wire Gauge | 28AWG |
| Conductor Type | Stranded |
Key Features
- Features stranded tin copper wire conductor for enhanced conductivity.
- Constructed with glass filled polyester jacket material for durability and mechanical strength.
- Operates reliably within -40°C to +105°C temperature range.
- Complies with RoHS standards for environmental safety.
- Grey jacket color ensures easy identification and aesthetic appeal.
- Current rating is 3.4A per pin for robust electrical performance.
- Phosphor bronze terminal material ensures excellent corrosion resistance.
- Suitable for applications requiring slim body double row IDC cable assemblies.
Product Description
Samtec IDSD-05-D-20.00-T is a slim body flat ribbon IDC ribbon cable designed for high-quality electrical interconnections in electronics, automation, and industrial equipment. The cable utilizes stranded tin copper wire as the conductor, which provides excellent electrical conductivity and flexibility. The 2.54 mm pitch and 508 mm length make it suitable for precise connection layouts and varied mounting requirements.
This cable features a robust glass filled polyester jacket that offers mechanical protection and environmental resistance, enhancing durability in demanding operational environments. Its grey color jacket provides easy identification without compromising aesthetics.
The product is capable of operating in temperature ranges from -40°C to +105°C, ensuring reliable performance in harsh industrial and laboratory conditions. It supports a current rating of 3.4A per pin, making it suitable for applications requiring substantial electrical load handling.
Phosphor bronze terminal material enhances corrosion resistance and connection longevity. Moreover, the cable assembly is lead free solderable and RoHS compliant, ensuring environmental safety and compatibility with modern manufacturing standards.
This slim body double row IDC Ribbon Cable is ideal for use in electronics manufacturing, laboratory setups, industrial control systems, automation projects, and other commercial electrical wiring applications.
Features stranded tin copper wire conductor for enhanced conductivity. Rated voltage of 425 to 600 V AC suitable for industrial applications. Constructed with glass filled polyester jacket material for durability and mechanical strength.
Operates reliably within -40°C to +105°C temperature range. Complies with RoHS standards for environmental safety. Grey jacket color ensures easy identification and aesthetic appeal. Current rating is 3.4A per pin for robust electrical performance.
Phosphor bronze terminal material ensures excellent corrosion resistance. Suitable for applications requiring slim body double row IDC cable assemblies. Lead free solderable to support modern electronics manufacturing processes.
Explore more wire and cable solutions at EnvMart for your electronic and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ribbon cable has a pitch of 2.54 mm and a length of 508 mm.
It can operate reliably at a maximum temperature of 105°C.
The current rating is 3.4A per pin, suitable for substantial electrical load handling.
The cable features stranded tin copper wire as the conductor and a glass filled polyester jacket for durability.
Yes, it complies with RoHS standards for environmental safety.
The voltage rating is between 425 to 600V AC, making it suitable for industrial applications.
The jacket color is grey, which aids in easy identification.
It uses phosphor bronze terminal material, which enhances corrosion resistance.
The minimum operating temperature is -40°C, allowing reliable performance in harsh conditions.
It is suitable for electronics manufacturing, laboratory setups, industrial control systems, and automation projects.
The American Wire Gauge rating for this ribbon cable is 28AWG.
The country of origin for this ribbon cable is India.
