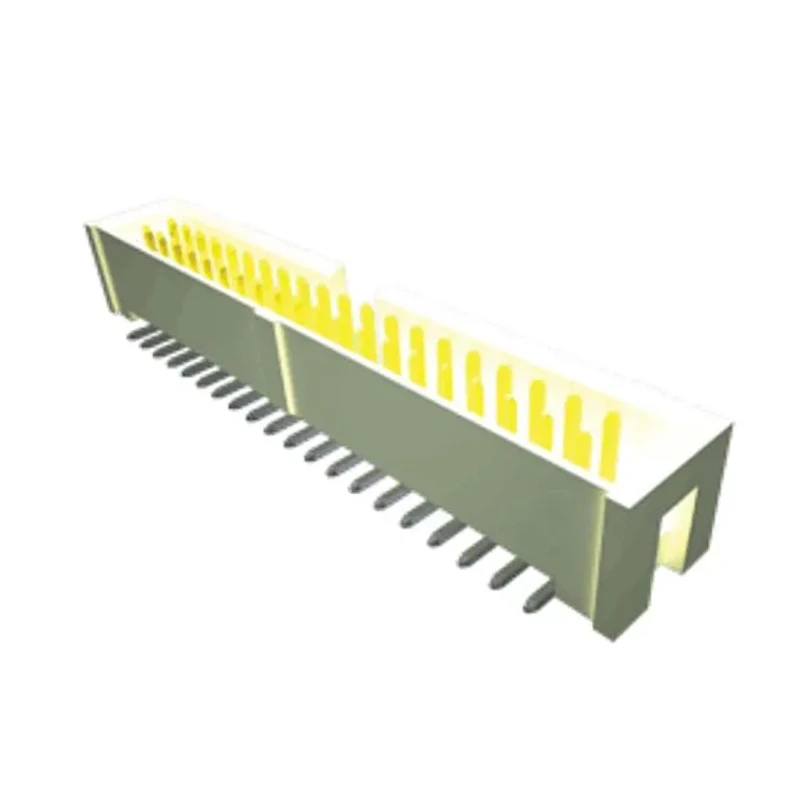

Samtec HTST Series Straight Surface PCB Header, 8 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded HTST-108-01-T-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | HTST-108-01-T-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | HTST |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a 2.54 mm pitch for precise spacing of pins.
- Constructed with phosphor bronze contacts plated with tin for durability.
- Housing made of liquid crystal polymer with UL 94V-0 flammability rating.
- Designed with 2 rows and a male shrouded connector orientation.
- Supports a current rating of 3.4 amperes per pin for robust electrical performance.
- Operates efficiently in temperatures from -55°C to 125°C.
- Surface mount type ensuring easy PCB assembly.
- Rated for voltages up to 600 volts.
Product Description
Samtec HTST-108-01-T-DV is a high temperature, shrouded straight surface PCB header designed to provide dependable board-to-board connections in various electronic assemblies.
It features 8 phosphor bronze male contacts with tin plating that ensures excellent conductivity and corrosion resistance. The housing is made from durable liquid crystal polymer material with a flammability rating of UL 94V-0, suitable for demanding industrial and commercial environments.
This PCB header supports a fine 2.54 mm pitch and 2-row configuration, enabling compact circuit layouts without sacrificing performance. Rated for 3.4 amps current per contact and voltage up to 600 volts, it performs reliably in operating temperatures ranging from -55°C up to 125°C.
The surface mount termination with solder type connections facilitates seamless PCB integration, making the HTST series ideal for use in electronic components, power connectors, and board-to-board systems in industrial, manufacturing, and electronics applications.
2.54 mm pitch ensures exact pin spacing. Phosphor bronze contacts with tin plating provide durability. Liquid crystal polymer housing with UL 94V-0 rating enhances safety. 2-row, male, shrouded design supports secure connections.
3.4 amp current rating per pin supports robust electrical loads. Wide temperature range from -55°C to 125°C offers versatility. Surface mount solder termination ensures PCB assembly efficiency. 600 volts voltage rating for industrial applications.
This Samtec HTST PCB header is RoHS compliant and lead-free solderable, making it suitable for environmentally conscious manufacturing processes. Explore our electronics components category for advanced connectors and PCB assemblies to optimize your industrial or laboratory solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm, ensuring precise spacing of the pins for compact circuit layouts.
It supports a current rating of 3.4 amperes per pin, allowing for robust electrical performance in various applications.
This model is rated for voltages up to 600 volts, making it suitable for industrial applications.
The contacts are made of phosphor bronze with tin plating, and the housing is constructed from liquid crystal polymer.
It operates efficiently within a temperature range of -55°C to 125°C, providing versatility in various environments.
This header features 8 male contacts, designed for secure board-to-board connections.
It utilizes a solder termination type, facilitating easy PCB assembly and integration.
Yes, this model is RoHS compliant and lead-free solderable, making it suitable for environmentally conscious manufacturing processes.
The orientation of this header is straight, designed for ease of connection in electronic assemblies.
The housing material has a UL 94V-0 flammability rating, enhancing safety in demanding environments.
It supports a board-to-board connector system, ideal for various electronic applications.
This PCB header is manufactured in India, contributing to its global availability.
