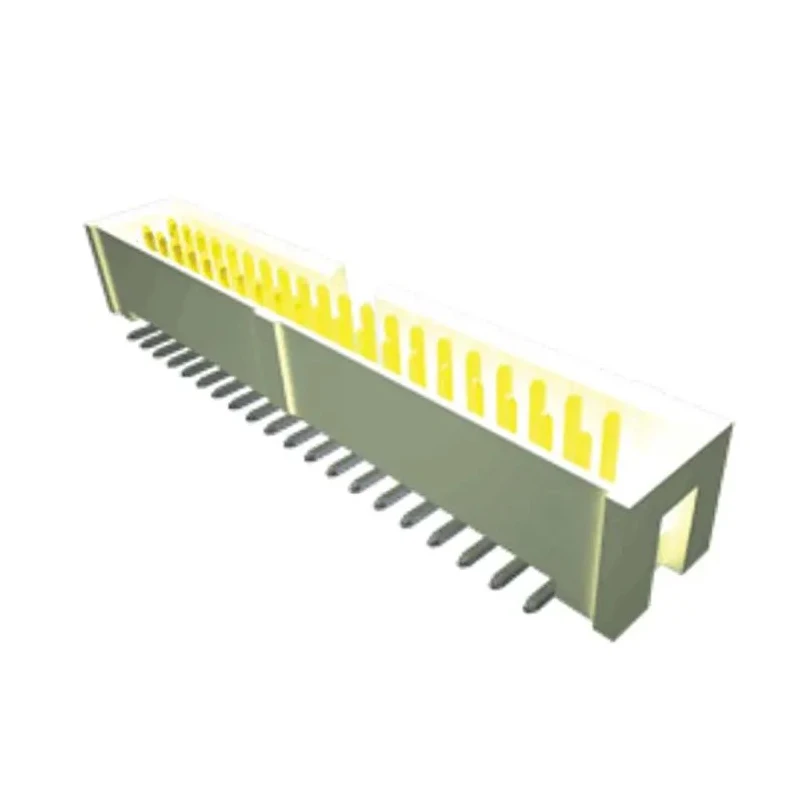

Samtec HTST Series Straight Surface PCB Header, 12 Contacts, 2 Row, 2.54 mm Pitch, Shrouded HTST-112-01-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | HTST-112-01-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | HTST |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a phosphor bronze contact material with gold plating for superior corrosion resistance.
- Supports a maximum operating voltage of 600V with a current rating of 3.4A per pin.
- Constructed with a liquid crystal polymer housing material with UL 94V-O flammability rating.
- Designed to operate safely in temperatures ranging from -55°C to 125°C.
- Mount type is surface mount, ideal for board-to-board connector applications.
- Includes polarization notch for proper connection alignment and shrouded design for added protection.
- Terminated by solder with male contact gender suited for PCB headers.
Product Description
Samtec HTST-112-01-L-DV is a high-temperature shrouded surface PCB header designed for reliable electronic board-to-board connections. This PCB header has 12 male phosphor bronze contacts plated with gold ensuring excellent electrical conductivity and durability. The housing is manufactured from liquid crystal polymer providing excellent heat and chemical resistance. It is compliant with RoHS directives and free from lead, suitable for modern environmental standards.
With a pitch of 2.54 mm between contacts arranged in 2 rows, this connector supports current ratings of 3.4A per pin and a maximum voltage of 600V, making it suitable for demanding electronic and industrial applications where compact, reliable connections are required. The operating temperature range extends from -55°C to 125°C, thus capable of withstanding harsh environmental conditions.
The shrouded design with polarization notch ensures secure mating orientation and protection against misalignment or damage during assembly. It is surface-mounted, facilitating easy installation on printed circuit boards.
This component is extensively used in industrial electronics, telecommunications, instrumentation, and electrical assembly manufacturing. It provides an ideal solution for high-reliability and high-performance PCB connector applications.
Phosphor bronze gold-plated contacts enhance corrosion resistance and connectivity. Liquid crystal polymer housing offers robust thermal and chemical resistance. High current (3.4A) and voltage (600V) ratings for industrial use.
Wide operating temperature range supports diverse conditions. Shrouded, polarized header supports correct and secure mating. Surface mount type for efficient PCB integration. Explore more electronic component solutions from Samtec and other leading brands at EnvMart for your industrial needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this PCB header is 600V.
This model has a current rating of 3.4A per pin.
The pitch between the contacts is 2.54 mm.
The housing is made from liquid crystal polymer, which provides excellent heat and chemical resistance.
This PCB header has 12 contacts arranged in 2 rows.
It operates safely in temperatures ranging from -55°C to 125°C.
The termination type for this model is solder.
This model is shrouded, which provides added protection and ensures correct mating orientation.
The contacts are made from phosphor bronze and are gold-plated for enhanced corrosion resistance.
It is suitable for board-to-board connector applications in industrial electronics, telecommunications, and instrumentation.
The orientation of this model is straight.
The country of origin for this PCB header is India.
