Display Visions EA DOG LCD LED LCD Monochrome Display 4 x 16 Characters White on Grey EA DOGS164W-A

Free Delivery in India | Lowest Global Shipping Charges

Display Visions EA DOG LCD LED LCD Monochrome Display 4 x 16 Characters White on Grey EA DOGS164W-A

Name: Display Visions EA DOG LCD LED LCD Monochrome Display 4 x 16 Characters White on Grey EA DOGS164W-A
Brand: Display Visions
SKU: 162290
Price: 27.56 USD
Availability: InStock



Category LCD Monochrome Display Brand Display Visions Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	Display Visions
Model	EA DOGS164W-A
Series	EA DOG
Character height	4.8mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
External Width	0.7mm
External Depth	30.48mm
External Height	40mm
Interface Type	I2C/SPI
Standards/Approvals	RoHS
Illumination Colour	White
Viewing Area Dimensions	32.18 x 14.88 mm
Backlight Type	LED
Character Matrix	4 x 16

Key Features

The display features a high contrast LCD supertwist panel for sharp character rendering.
It is designed for operation on 3.3 V systems without auxiliary power, ensuring low power consumption.
The interface supports I2C and SPI communication protocols for versatile connectivity.
The product includes integrated LED backlighting with white illumination for improved readability.
Its ultra-flat profile with dimensions 66 x 40 mm enables use in space-constrained designs.
Operating temperature ranges from -20°C to 70°C, suitable for various industrial environments.
The controller includes SSD1803A with integrated graphic RAM, facilitating display management.
No bezel is required, and it can be directly soldered onto PCBs for easy mounting.

Product Description

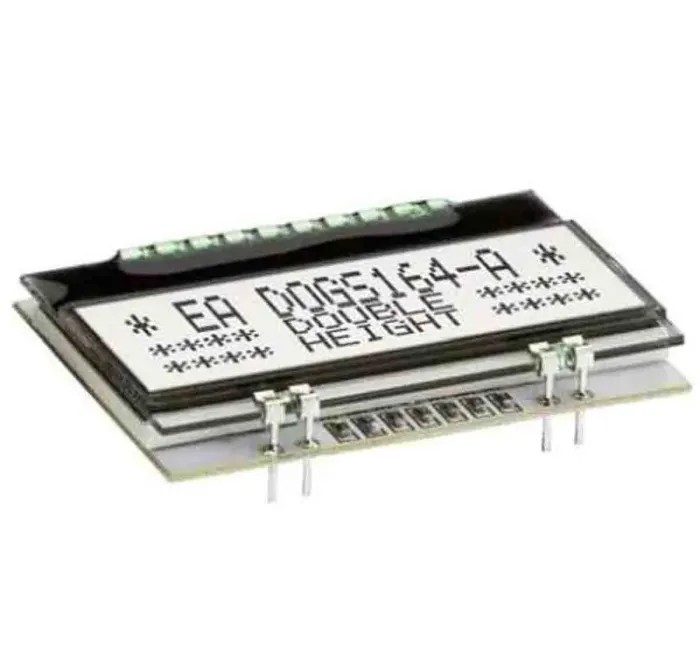

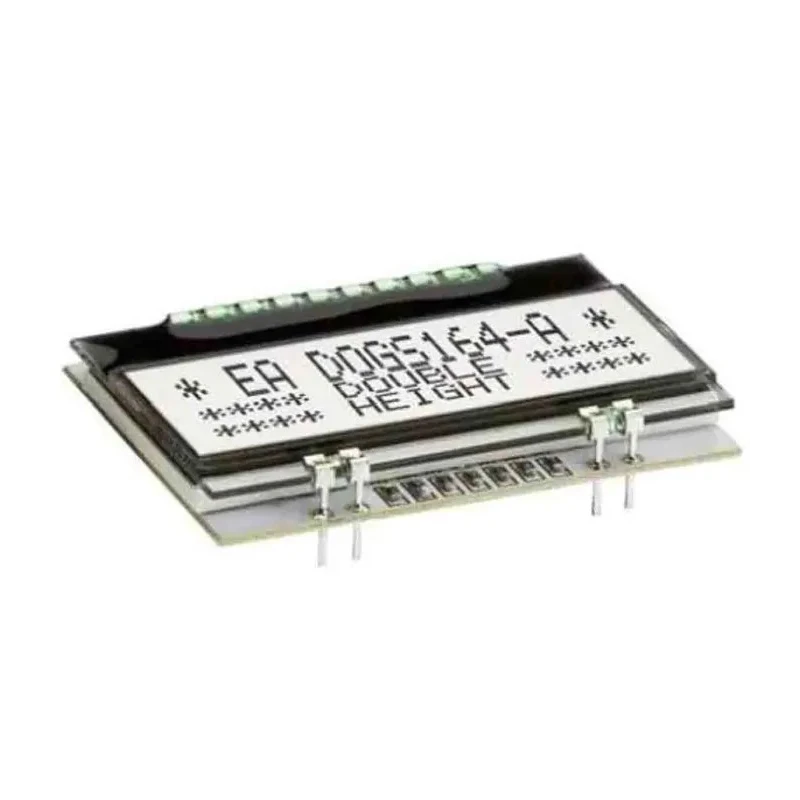

Display Visions EA DOGS164W-A is a premium LCD Monochrome Display module featuring a 4 x 16 character matrix with white characters on a grey background. This LED-backlit display is engineered for embedded electronics systems requiring compact size and low voltage operations, supporting 3.3 V systems without auxiliary power. Its ultra-flat design measures 66 x 40 mm with a depth of 2.0 mm without backlight and 5.8 mm including the LED backlight.

The display utilizes an SSD1803A controller integrated with graphic RAM to deliver high contrast and sharp character images through a supertwist LCD panel technology. Its communication interfaces include both I2C and SPI protocols, providing flexible integration options with various microcontrollers and embedded platforms.

The LED backlight emits white illumination with a current rating of 45 mA, enhancing visibility across different lighting environments. Designed for reliability, the display operates effectively within a temperature range from -20°C to 70°C, making it suitable for industrial, laboratory, and commercial applications.

Installation is simplified by the absence of the need for a bezel and the capability to be soldered directly onto printed circuit boards (PCB), allowing seamless PCB-level integration. This display module is ideal for instrument panels, measurement devices, consumer electronics, and control systems requiring clear alphanumeric displays in a compact footprint.

High contrast supertwist LCD with integrated SSD1803A controller and graphic RAM. Supports 3.3 V system operation without auxiliary power supply. Communication via I2C and SPI interfaces for flexible connectivity. White LED backlight with 45 mA current rating for enhanced readability.

Ultra-flat and compact dimensions of 66 x 40 x 2 mm make it suitable for tight spaces. Operational temperature range from -20°C to 70°C covers diverse industrial environments. No bezel required and simple solder-on PCB mounting design.

Applications include industrial instrumentation, laboratory equipment, and commercial displays. Explore more components and advanced display solutions in EnvMart’s Electronics Components catalog.
