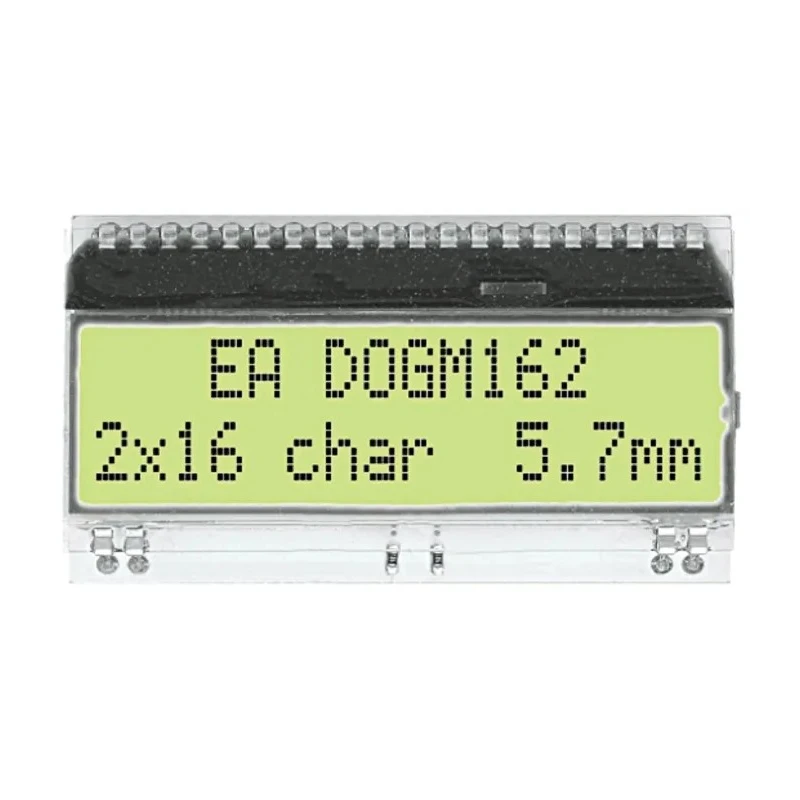

Display Visions EA DOG Alphanumeric LED LCD Monochrome Display, Yellow Green on Black, 2 x 16 EA DOGM162E-A
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Alphanumeric |
| Brand | Display Visions |
| Model | EA DOGM162E-A |
| Series | EA DOG |
| Character height | 5.6mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 55mm |
| External Depth | 2mm |
| External Height | 27.9mm |
| Interface Type | SPI, 4 Bit, 8-Bit |
| Standards/Approvals | RoHS |
| Character Width | 2.5mm |
| Illumination Colour | Yellow, Green |
| Viewing Area Dimensions | 51 x 15 mm |
| Backlight Type | LED |
| Character Matrix | 2 x 16 |
Key Features
- The module features a high-contrast LCD supertwist display for clear readability.
- Uses ST 7036 controller supporting SPI, 4-bit, and 8-bit interfaces.
- Operates on single 3.3V or 5V power supply for versatile integration.
- Compact design with viewing area 51 x 15 mm and overall external dimensions of 55 x 27.9 x 2 mm.
- Character height of 5.6 mm and width of 2.5 mm ideal for compact displays.
- Built to operate in temperatures ranging from -20°C to 70°C for industrial use.
- Backlight employs LED in yellow and green colors for optimal illumination.
- RoHS compliant for environmentally safe usage.
Product Description
Display Visions EA DOGM162E-A alphanumeric LED LCD monochrome display module featuring a 2 x 16 character matrix with yellow and green illumination on a black background. This compact module is designed for integration into electronic assemblies requiring clear alphanumeric display in limited space.
The module employs the ST 7036 controller, supporting SPI, 4-bit, and 8-bit interface types, providing flexible connectivity options. It operates efficiently on a single 3.3V or 5V power supply.
With a viewing area of 51 x 15 mm and overall external dimensions of 55 mm width, 27.9 mm height, and 2 mm depth, the display suits compact handheld and embedded applications. Character dimensions are 5.6 mm height and 2.5 mm width, ensuring legibility.
Designed for demanding environments, it supports operating temperatures from -20°C to 70°C. The LED backlight in yellow and green enhances readability under various lighting conditions.
The EA DOG series presents a high-contrast LCD supertwist display, suitable for industrial, electronic assembly, and instrumentation applications where alphanumeric data visualization is required. The backlight is optional and can be clipped on separately for added illumination effects.
This module is RoHS compliant, reflecting adherence to environmental regulations. The module features a high-contrast LCD supertwist display for clear readability. Uses ST 7036 controller supporting SPI, 4-bit, and 8-bit interfaces.
Operates on single 3.3V or 5V power supply for versatile integration. Compact design with viewing area 51 x 15 mm and overall external dimensions of 55 x 27.9 x 2 mm. Character height of 5.6 mm and width of 2.5 mm ideal for compact displays.
Built to operate in temperatures ranging from -20°C to 70°C for industrial use. Backlight employs LED in yellow and green colors for optimal illumination. RoHS compliant for environmentally safe usage. Explore our comprehensive range of LCD Monochrome Display modules for diverse electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EA DOGM162E-A features a character matrix of 2 x 16, allowing it to display 32 alphanumeric characters in total.
The external dimensions of the EA DOGM162E-A are 55 mm in width, 27.9 mm in height, and 2 mm in depth.
The viewing area of the EA DOGM162E-A measures 51 x 15 mm, providing a clear space for character visibility.
This display operates on a single power supply of either 3.3V or 5V, allowing for versatile integration into various systems.
The EA DOGM162E-A supports SPI, 4-bit, and 8-bit interface types, providing flexible connectivity options for integration.
The EA DOGM162E-A is designed to operate in temperatures ranging from -20°C to 70°C, making it suitable for industrial use.
The backlight of the EA DOGM162E-A features yellow and green colors, enhancing visibility under various lighting conditions.
The character height is 5.6 mm and the character width is 2.5 mm, ensuring legibility for alphanumeric data.
Yes, the EA DOGM162E-A is RoHS compliant, reflecting adherence to environmental regulations for safe usage.
This model utilizes an alphanumeric LCD supertwist display technology, providing high contrast for clear readability.
The EA DOGM162E-A is suitable for industrial, electronic assembly, and instrumentation applications requiring alphanumeric data visualization.
The EA DOGM162E-A is manufactured in India, indicating its origin for sourcing purposes.
