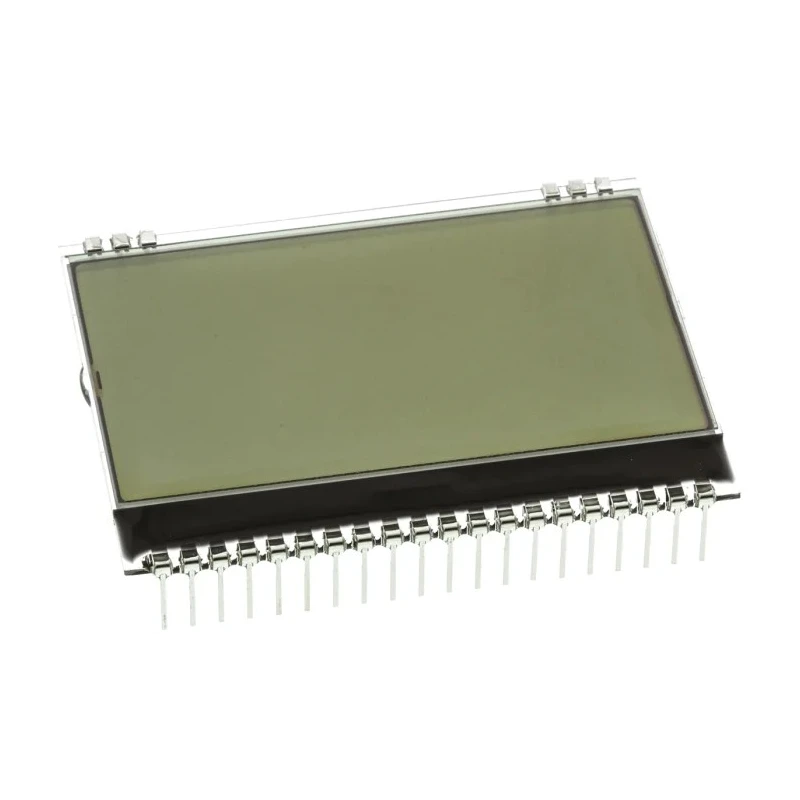

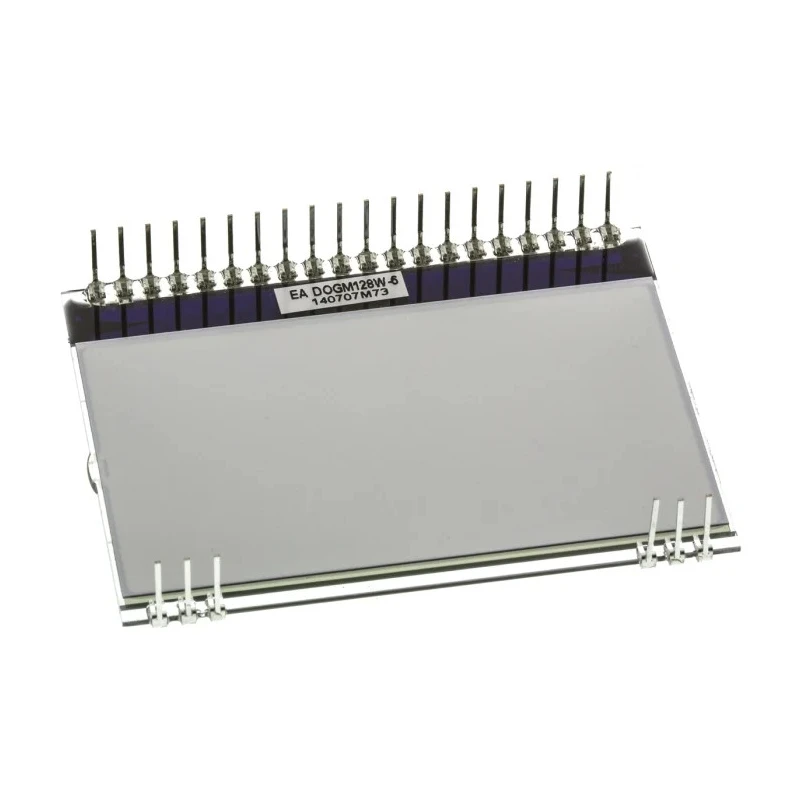

Display Visions EA DOG Graphic LED LCD Monochrome Display 128 x 64 pixel 3.3V EA DOGM128W-6
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Graphic |
| Brand | Display Visions |
| Model | EA DOGM128W-6 |
| Series | EA DOG |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 55mm |
| External Depth | 2mm |
| External Height | 43mm |
| Interface Type | SPI |
| Screen Resolution | 128 x 64 pixel |
| Standards/Approvals | RoHS |
| Illumination Colour | White |
| Viewing Area Dimensions | 51 x 31 mm |
| Backlight Type | LED |
| Lascar MDM-1 Alphanumeric LCD DisplayBrand | Lascar |
Key Features
- Monochrome graphic display with high contrast white on black visuals.
- LED backlight illumination enhances readability with white light output.
- Compact viewing area dimensions of 51 x 31 mm suitable for hand-held devices.
- Interface type SPI supports efficient communication with microcontrollers.
- Robust operating temperature range from -20°C to 70°C for industrial environments.
- Ultra-thin external depth of 2mm and external size 43mm height by 55mm width.
- Complies with RoHS standards ensuring environmental safety.
- Designed for easy soldering directly onto PCB without additional assembly.
Product Description
Display Visions EA DOGM128W-6 is a Graphic LED monochrome LCD display module mainly designed for low-power handheld electronic applications operating at a single 3.3V supply. This display provides a crisp 128 x 64 pixel resolution with high contrast white-on-black visuals, making it highly readable in diverse environments.
The module features a compact viewing area of 51 x 31 mm, with an ultra-thin external depth of just 2mm and overall dimensions of 43mm height and 55mm width, allowing integration into compact electronic assemblies. It uses a fast SPI interface for efficient communication with microcontroller units.
An LED backlight provides white illumination, significantly enhancing screen visibility in low light conditions. The display is rated to operate reliably in a wide temperature range from -20°C up to 70°C, suitable for industrial and commercial electronics.
The product complies with RoHS environmental directives and solders directly onto PCBs without requiring additional mechanical assembly, supporting streamlined manufacturing processes.
Typical applications include embedded instrumentation, industrial equipment displays, and handheld device interfaces, where a compact, power-efficient monochrome graphic display is ideal.
Monochrome graphic display with white LED backlight. 128 x 64 pixel resolution providing detailed graphics capability. SPI interface for simple and fast data communication. Compact and thin form factor for small device integration.
Wide operating temperature range: -20°C to 70°C. Compliance with RoHS environmental standards. Designed for direct PCB mounting without extra assembly. White-on-black display for enhanced contrast and readability. Suitable for industrial, laboratory, and consumer electronic applications.
Explore additional display modules and related electronic components on EnvMart to meet diverse project specifications and industrial requirements.
Explore more products in our LCD Monochrome Display category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this display is 128 x 64 pixels, providing detailed graphics capability.
It uses an SPI interface for efficient communication with microcontrollers.
The external dimensions are 55mm in width, 43mm in height, and an ultra-thin depth of 2mm.
This model operates reliably in a temperature range from -20°C to 70°C.
It features a white LED backlight that enhances visibility in low light conditions.
The viewing area dimensions are 51mm in width and 31mm in height.
Yes, it complies with RoHS environmental standards, ensuring safety and compliance.
It is suitable for embedded instrumentation, industrial equipment displays, and handheld device interfaces.
It is a graphic monochrome LCD display, providing high contrast white on black visuals.
It is designed for direct soldering onto PCBs without requiring additional mechanical assembly.
The country of origin for the EA DOGM128W-6 is India.
The illumination color of the backlight is white, which enhances the display's readability.
