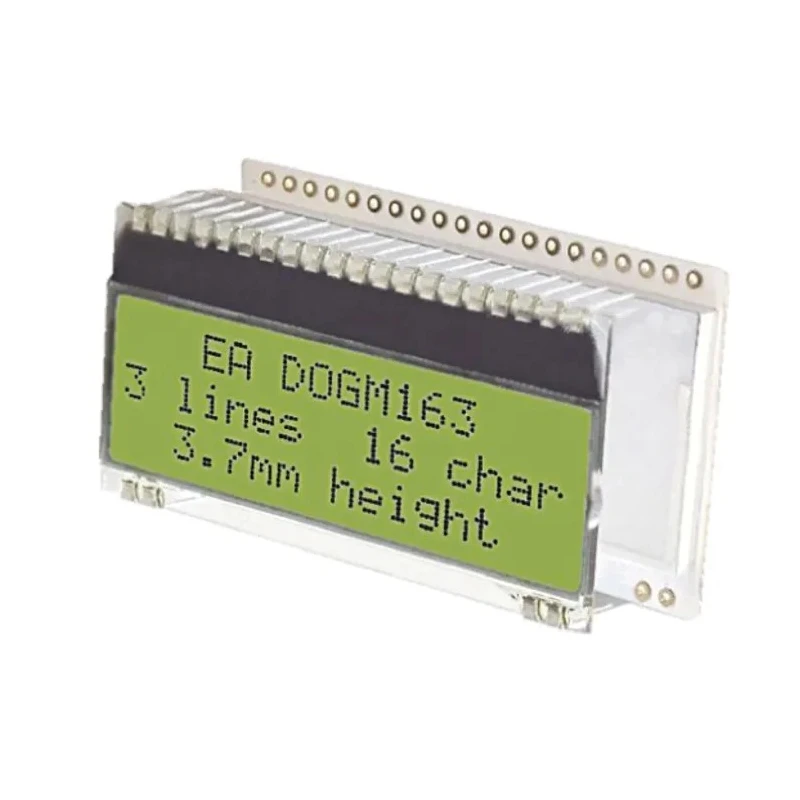

Display Visions Alphanumeric LED LCD Monochrome Display 3 x 16 Characters Yellow Green on Black 3.3V Germany EA DOGM163E-A

Display Visions EA DOGM163E-A is a high-contrast alphanumeric LED LCD Monochrome Display module featuring a 3 x 16 character matrix with yellow and green illumination on a black background. It is designed for integration into compact handheld electronic devices and industrial equipment requiring clear visual indicators with low power consumption.

The module supports multiple interface types including 4 Bit, 8-Bit parallel and SPI for flexible integration in diverse embedded systems. The character matrix dimensions deliver clear and legible characters with a height of 3.7 mm and width of 2.5 mm within a viewing area of 51 x 15 mm, ensuring good readability in various lighting conditions.

This display includes an LED backlight that allows illumination in yellow and green, enhancing contrast and visibility against the black background. The module's external dimensions (55 mm width, 27.9 mm height, 2 mm depth) offer a compact footprint suitable for space-constrained applications.

Designed to operate reliably in harsh environments, the display functions effectively within a temperature range from -20°C to 70°C. It complies with RoHS environmental standards and is manufactured in Germany, reflecting premium build quality and durability.

The EA DOG series utilizes the ST 7036 controller, facilitating seamless communication with microcontrollers and embedded systems. The module demands a low voltage single supply of 3.3 V or 5 V, providing energy efficiency crucial in battery-operated handheld devices.

Its applications span industrial controls, instrumentation panels, laboratory equipment, and other electronic devices requiring a compact, clear, and robust alphanumeric display output.

The display features a character matrix of 3 rows by 16 columns. It uses a 4 Bit, 8-Bit, or SPI interface for versatile connectivity. The viewing area measures 51 x 15 mm with character height of 3.7 mm and width of 2.5 mm.

LED backlight illumination in yellow and green colors enhances visibility. The display operates in temperatures from -20°C to 70°C, suitable for industrial environments. Compact dimensions: 55 mm width, 27.9 mm height, and 2 mm depth.

Manufactured in Germany, ensuring high-quality standards and RoHS compliance. Explore the Display Visions EA DOGM163E-A in EnvMart's Electronics Components category for advanced industrial and embedded electronics solutions.
