Amphenol Industrial AT Automotive Connector Male Green Panel Mount 12 Way Crimp Termination AT04-12PC-BL05

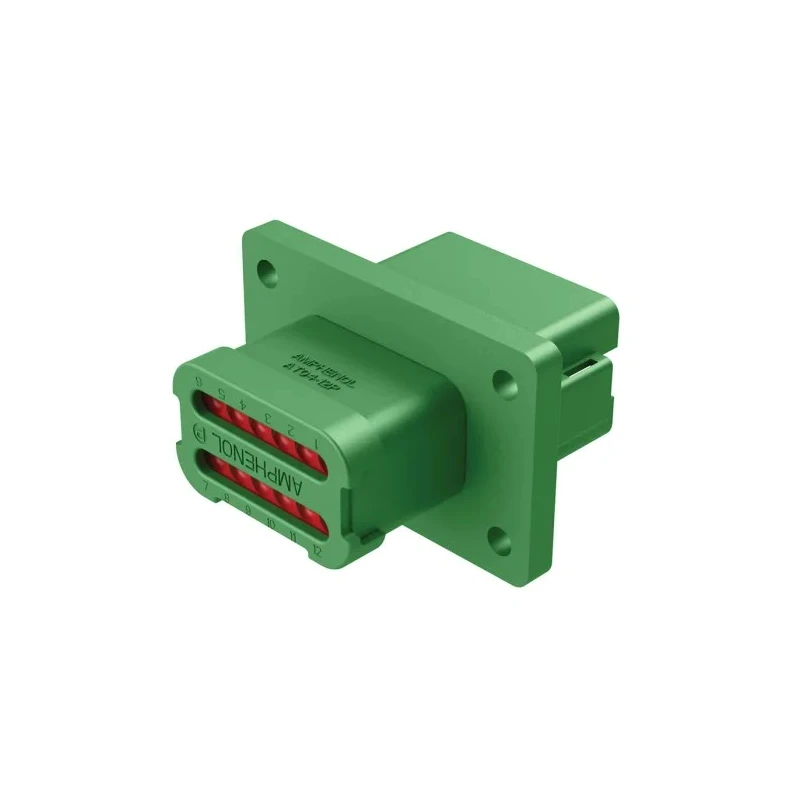

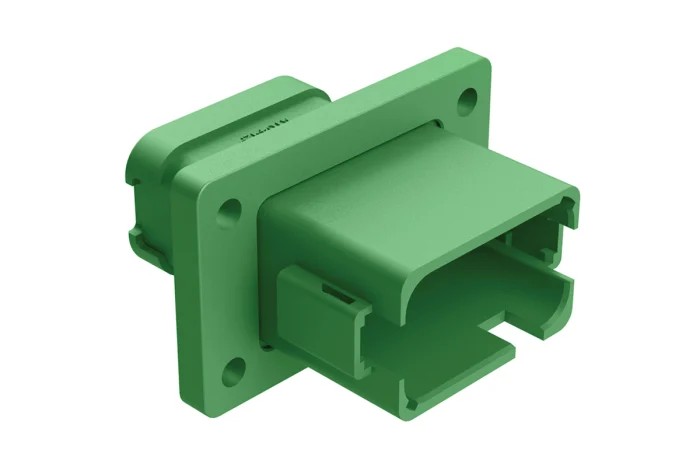

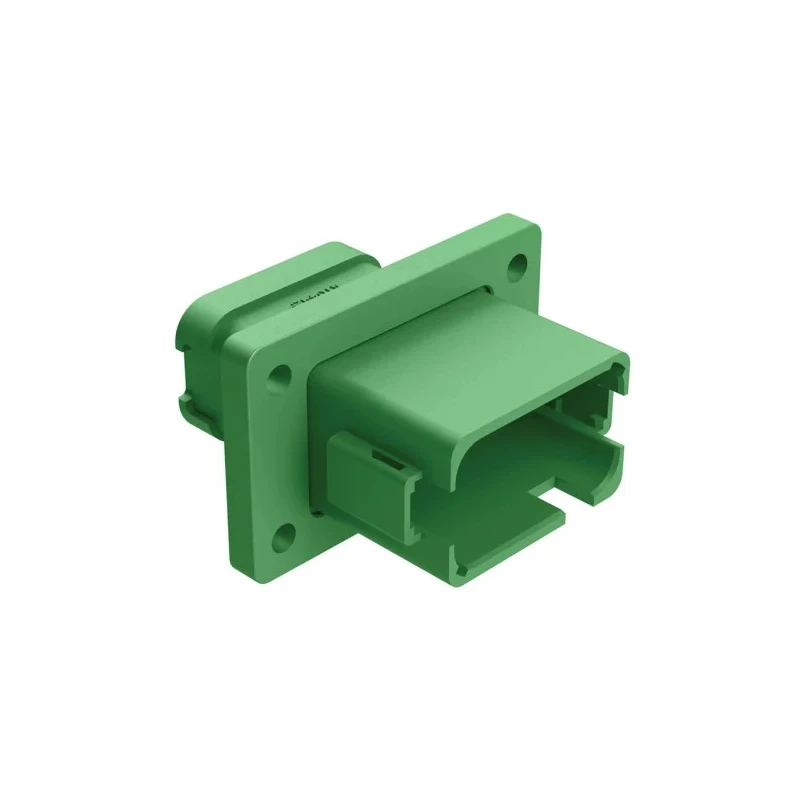

Amphenol Industrial AT04-12PC-BL05 is a male automotive connector featuring 12 way crimp termination in a green thermoplastic housing designed for panel mount use. It provides excellent reliability and durability for automotive and industrial electrical systems.

This connector series AT supports 12 contacts arranged in 2 rows and is designed with Crimp termination ensuring secure and lasting electrical connections. Rated for 13A current, it can withstand operating temperatures ranging from -55°C to +125°C, making it suitable for use under extreme temperature conditions in automotive environments.

The connector has an IP67 ingress protection rating, providing resistance against dust and water ingress, key for harsh outdoor or engine compartment applications. Its integrated latch with enhanced keying (Keyed C, Enhanced Key) prevents mismating and ensures ease of installation.

It meets RoHS standards, ensuring environmentally responsible manufacturing. Mechanical performance is verified with resistance to vibration, shock, and pull-out forces according to stringent automotive standards. The connector is capable of surviving multiple thermal cycles and underwater immersion tests without degradation in electrical or mechanical properties.

Features 12 silver-plated contacts arranged in 2 rows for robust electrical connection. Thermoplastic housing with green color coding for panel mount use and easy identification. IP67 rated sealing ensures dust tight and water-resistant performance.

Supports wire ranges: size 12 contacts accept 12-14 AWG, size 16 contacts accept 14-20 AWG wires. Operating temperature from -55°C to 125°C at rated current for extreme environment durability. Mechanical retention tested to resist 25 lb pull-out force per contact, up to 100 lb max.

Tested for electrical continuity under vibration and shock conditions to ensure reliability. Designed for 1000 megohms minimum insulation resistance at 25°C to reduce leakage currents. Connector design prevents latch disengagement under extreme mechanical stresses.

Ideal for automotive, industrial, and transportation applications requiring robust and reliable wire-to-wire connections.

This AT automotive connector is manufactured in China and is suitable for automotive, industrial machinery, transportation, and other harsh condition electrical connector needs. Its robust mechanical and environmental characteristics make it a dependable solution for engineers and OEMs looking for high-quality Automotive Connectors.
