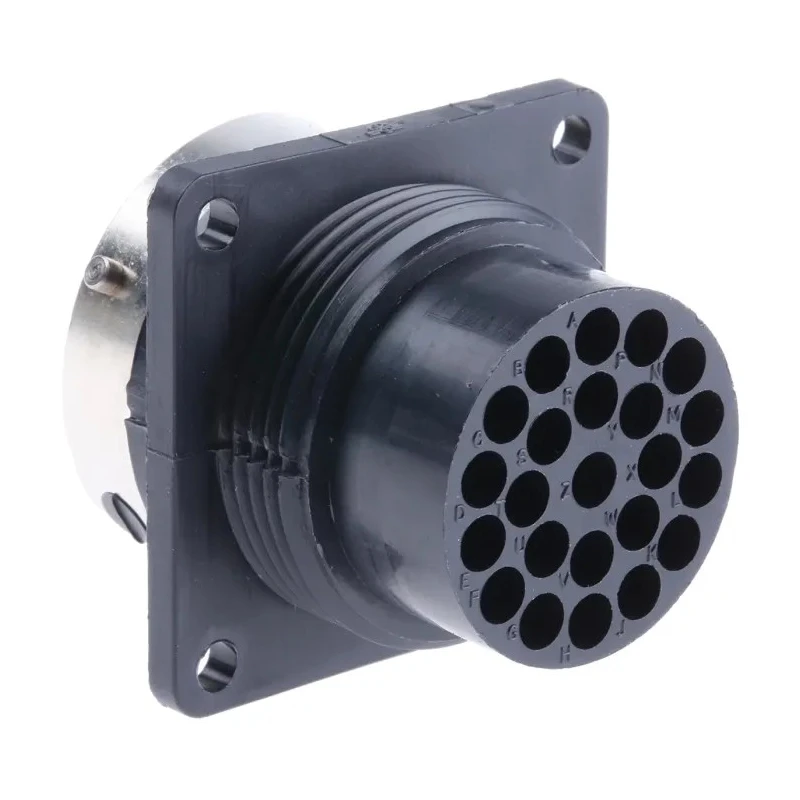

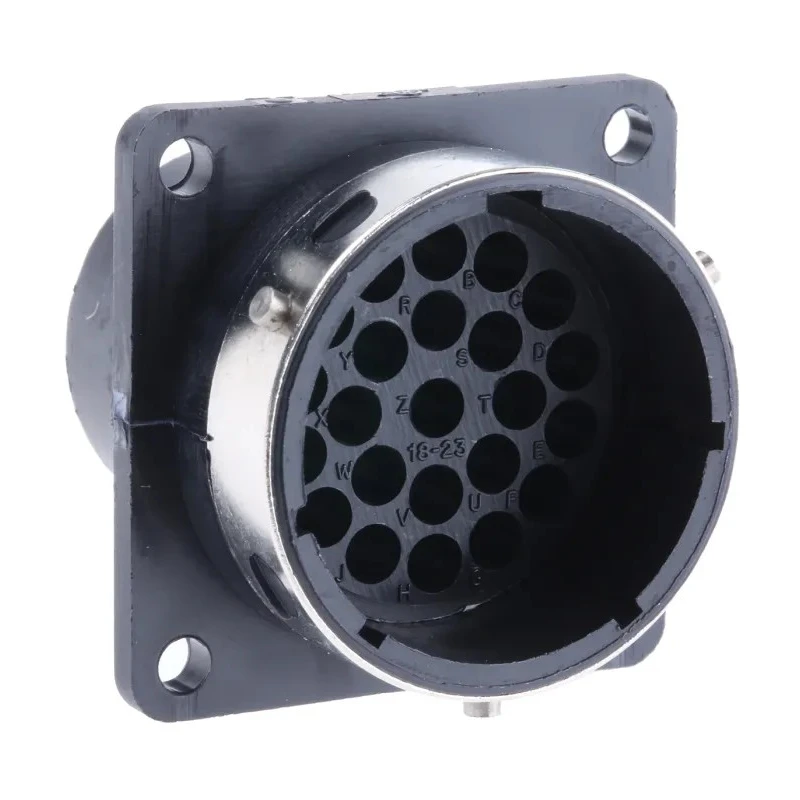

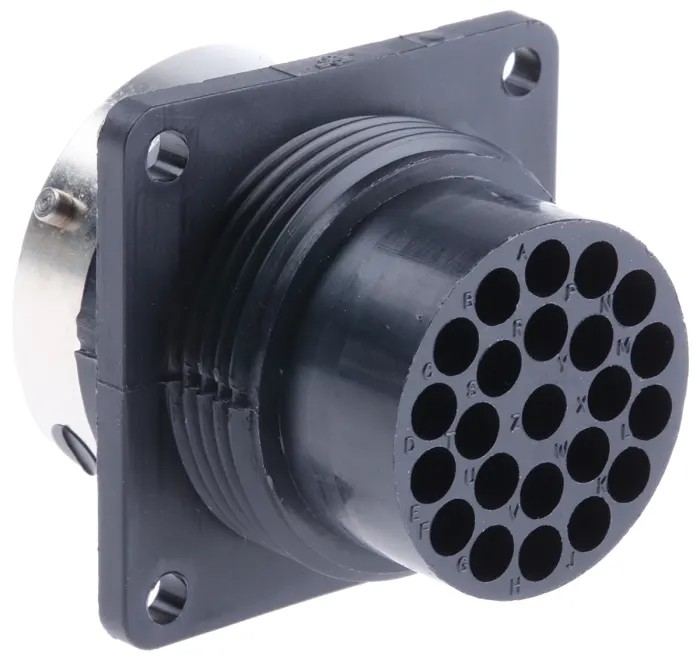

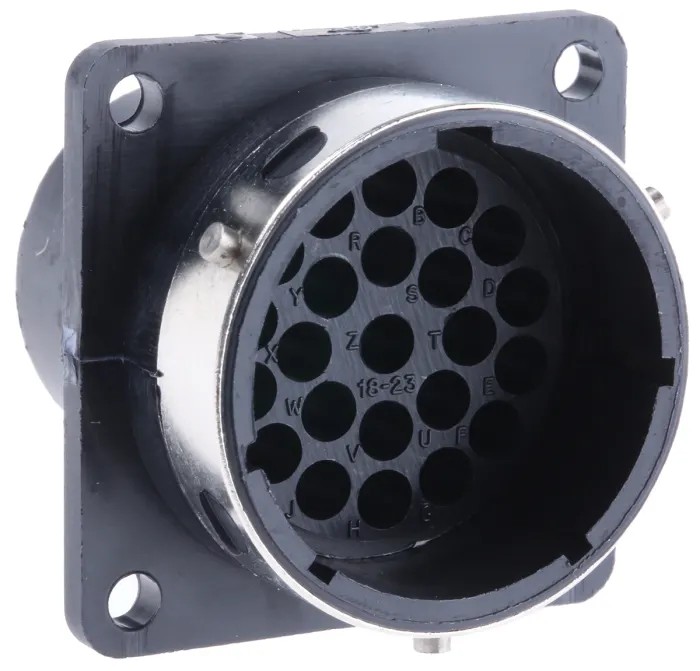

ITT Cannon Circular Connector Panel Mount 23 Contacts Socket Male IP65 250V Trident Ringlock TR1823RMS1NB / 192990-1350

Free Delivery in India | Lowest Global Shipping Charges

ITT Cannon Circular Connector Panel Mount 23 Contacts Socket Male IP65 250V Trident Ringlock TR1823RMS1NB / 192990-1350

Name: ITT Cannon Circular Connector Panel Mount 23 Contacts Socket Male IP65 250V Trident Ringlock TR1823RMS1NB / 192990-1350
Brand: ITT CANNON
SKU: 161033
Price: 38.58 USD
Availability: InStock



Category Industrial Circular Connectors Brand ITT CANNON Condition New

Specifications

Country of Origin	Hungary
Voltage	250V
Brand	ITT Cannon
Orientation	Straight
Current	16A
Model	TR1823RMS1NB / 192990-1350
IP Rating	IP65
Mount Type	Panel Mount
Housing Material	Polymer
Contact Material	Copper Alloy
Series	Trident Ringlock
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pole Format	23
Contact Plating	Nickel
Number of Contacts	23
Contact Gender	Male
Shell Size	18 mm
Mating Type	Bayonet
Connector Size	Standard
Plug/Socket	Socket

Key Features

The connector is panel mount with a standard size shell and male socket contacts.
Rated for 16 amps current and 250 volts operating voltage.
It uses a positive bayonet locking system ensuring secure mating and unmating.
Constructed with a durable black nylon UL94 V-0 polymer housing and nickel-plated copper alloy contacts.
Operates in a wide temperature range from -55°C to +105°C.
Trident Ringlock series offers rugged, vibration and shock resistant connections for harsh environments.
IP65 ingress protection rating delivers dust-tight and waterproof sealing when mated.
Contact termination is by crimp type for reliable connection.

Product Description

ITT Cannon TR1823RMS1NB / 192990-1350 Circular Connector is a robust industrial-grade panel mount connector with 23 male socket contacts. It is designed for demanding environments requiring reliable power and signal integrity. The connector is rated at 250 volts and 16 amps, making it suitable for various industrial, automation, and process control applications.

Its black nylon UL94 V-0 polymer housing provides excellent resistance to fire and high temperatures ranging from -55° to +105° Celsius. The nickel-plated copper alloy contacts ensure excellent conductivity and corrosion resistance, essential for harsh and industrial conditions.

The Trident Ringlock series features a metal bayonet coupling mechanism that ensures quick and secure mating with just one rotation, allowing for easy assembly and quick field repairs. The IP65 rating guarantees protection against dust ingress and water jets when mated with the appropriate counterpart.

This connector supports a wide range of industrial use cases including industrial electronics, robotic systems, instrumentation, machine building, industrial automation, process control, and manufacturing equipment. Its rugged construction is highly resistant to vibration and thermal shocks, ensuring dependable performance even in punishing environments.

The connector provides a positive bayonet locking system for enhanced security. Shell-to-shell keying prevents mismating and supports system integrity. It accepts both two-piece and three-piece crimp contacts, simplifying onsite assembly and maintenance.

Panel receptacles can accept female or male contacts depending on shell type. Designed and manufactured in Hungary, affirming high quality standards.

This connector is an excellent solution for engineers and technicians requiring a durable, high-performance connection option for industrial circular connector applications. Explore the full range of ITT Cannon connectors at EnvMart for compatible components and accessories.
