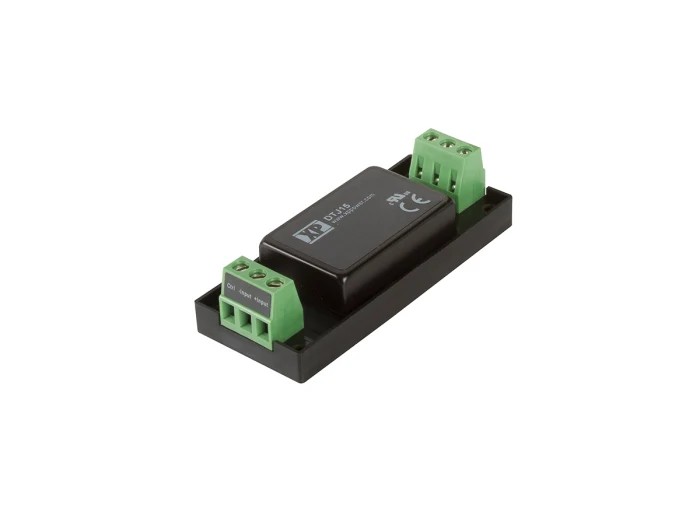

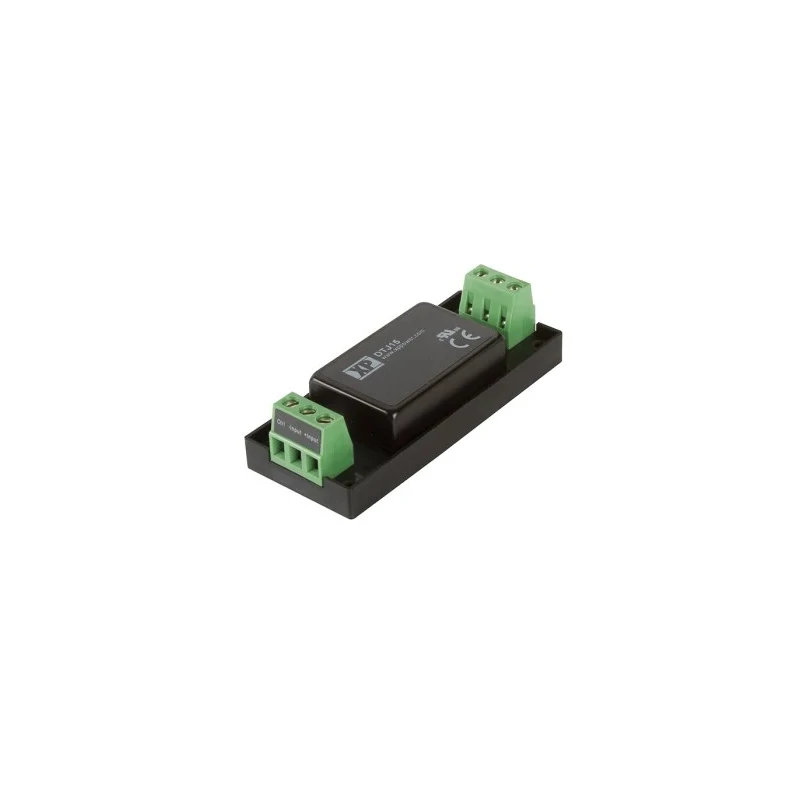

XP Power Chassis Mount DC/DC Converter Dual Output 15V dc 500 mA 36V dc Input Wide 4 to 1 Input Range DTJ15

The XP Power DTJ15 model is a chassis mount DC/DC converter designed for industrial and commercial power supply applications requiring dual regulated outputs. It offers a nominal output voltage of 15 V dc at 500 mA output current, powered by a wide input voltage range from 9 V to 36 V dc with a 4:1 nominal input ratio, making it suitable for various nominal voltage systems including 12 V, 24 V, and 48 V applications.

This device is encapsulated in a copper case chassis mount package, providing excellent thermal conductivity and mechanical robustness. It is compact with dimensions of 76.2 mm length, 31.4 mm width, and 19.4 mm depth, making it ideal for integration into constrained spaces. The converter also supports optional DIN rail mounting for convenient installation.

The DTJ15 converter is engineered for industrial-grade reliability and safety, featuring electrical isolation of 3 kV dc, and protections against short circuit, input reverse polarity, and includes a soft start to protect the input circuitry. It can operate over a broad temperature range from -40 °C to 100 °C with full power maintained up to 80 °C, suitable for challenging thermal environments.

The device achieves an efficiency of approximately 88%, aiding in energy conservation and lowering operating temperatures. It exhibits a high MTBF of over 4 million hours according to MIL-HBDK-27F standards, underscoring its suitability for critical applications.

This DC/DC converter is suitable for industrial power supplies, control systems, instrumentation, and other electronics requiring regulated dual outputs with high reliability in tough environmental conditions. The copper chassis also aids heat dissipation and mechanical protection.

Dual regulated outputs with 15 V dc at 500 mA current rating. Wide 9 V to 36 V dc input voltage range with 4:1 input ratio. Chassis mount with copper case and DIN rail clip option. High efficiency of 88% for energy savings.

3 kV dc isolation voltage for safety. Operating temperature range -40 °C to 100 °C, full power to 80 °C. Short circuit, reverse polarity, and soft start protections. Compact size: 76.2 mm x 31.4 mm x 19.4 mm. MTBF exceeding 4 million hours for reliable operation.

Constructed in Taiwan, Province Of China. Explore more power supply solutions in the XP Power range and related DC/DC Converters on EnvMart for your industrial or commercial project needs.
