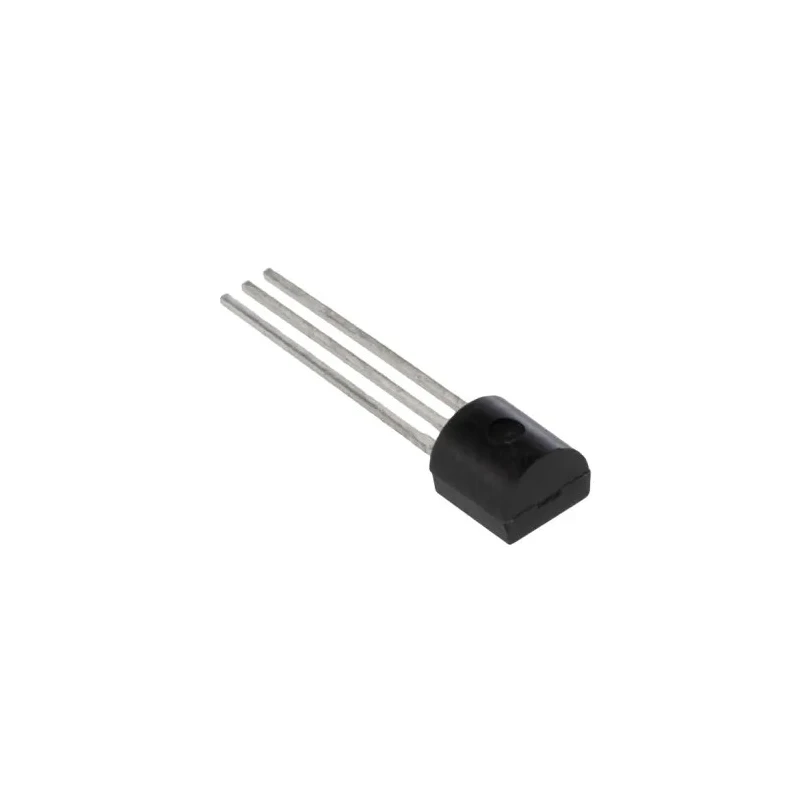

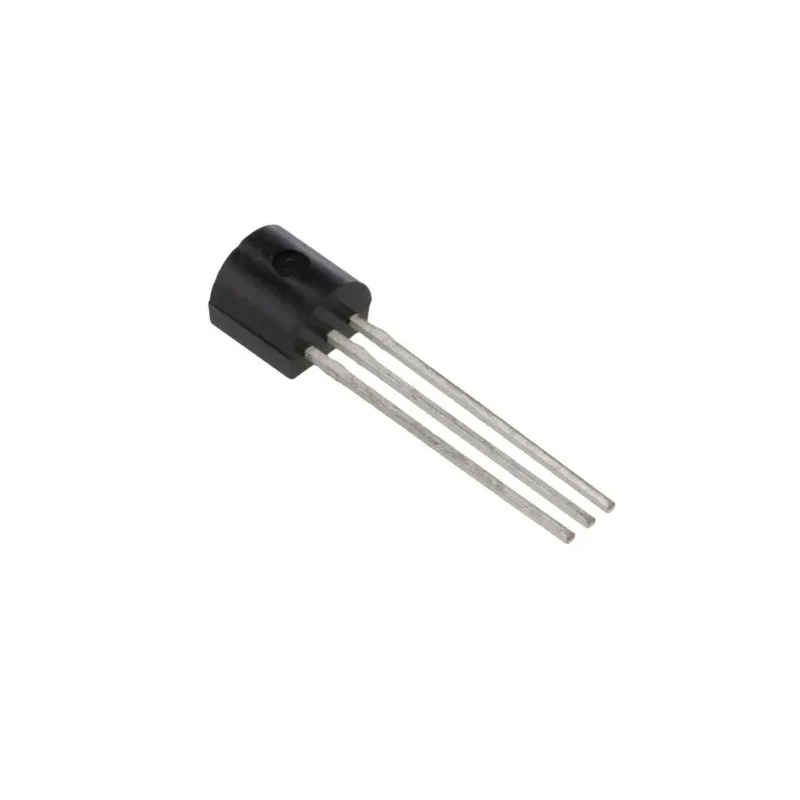

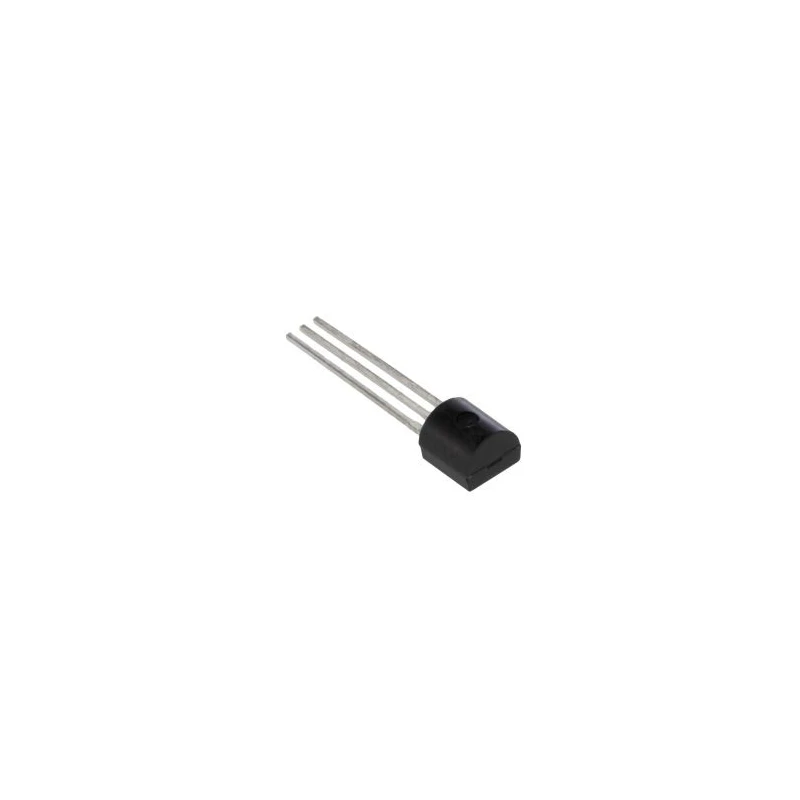

Microchip 5-Channel Low Dropout Voltage Regulator 250mA 3.3V TO-92 3-Pin MCP1702
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP1702 |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MCP1702 |
| Output Current | 250mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Load Regulation | 1 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 13.2V |
| Output Voltage | 3.3V |
| Quiescent Current | 2μA |
| Line Regulation | 0.1 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- The regulator features low dropout voltage ensuring efficient performance.
- It provides 5 outputs suitable for multiple voltage regulation needs.
- Through hole mount type facilitates easy PCB integration.
- Quiescent current of only 2 microamperes minimizes power consumption.
- Supports input voltages ranging from 2.7V to 13.2V.
- Operates reliably between -40°C to 125°C temperature range.
- Package dimensions are compact, measuring approximately 4.71mm length, 4.62mm height, and 3.62mm width.
- Ensures positive polarity fixed output voltage regulation.
Product Description
Microchip MCP1702-3302E/TO is a highly efficient 5-channel low dropout (LDO) voltage regulator designed to deliver a stable fixed output voltage of 3.3V at a maximum output current of 250mA. Housed in a TO-92 3-pin package, this device is compact and suited for through-hole mounting on printed circuit boards.
This voltage regulator boasts a low quiescent current of only 2μA, enabling minimal power loss and making it ideal for battery-powered and portable electronic devices.
The MCP1702 features a wide input voltage range from 2.7V to 13.2V and maintains excellent line and load regulation (0.1 %/V and 1 % respectively) to ensure consistent output voltage under varying input and load conditions. Its positive polarity output type and fixed output voltage simplify design requirements for power management in circuits.
Operating reliably between -40°C and 125°C, this device is suitable for demanding industrial, electronics manufacturing, automotive (non-automotive standard compliant), and commercial applications that require robust voltage regulation solutions.
Low dropout voltage operation for efficient power regulation. Five outputs provide flexibility for multiple voltage regulation points. Through hole mount TO-92 package aids in straightforward PCB integration and prototyping.
Minimal quiescent current reduces energy consumption improving battery life. Wide operating input voltage caters to varied power supply conditions. Wide operating temperature range supports harsh environment use. Complies with RoHS standards for environmental safety.
Compact package dimensions optimize board space usage. Fixed output voltage design enhances circuit simplicity. Positive polarity ensures compatibility with standard circuit designs.
This Microchip MCP1702 voltage regulator is crafted to meet rigorous power management requirements in electronic components, power connectors, semiconductor devices, and general voltage regulator use cases. It is suitable for designing reliable power supply systems in industrial controls, embedded systems, instrumentation, telecommunications, and consumer electronics.
Discover a wide selection of Voltage Regulators and power management ICs within EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 3.3V.
The MCP1702 can deliver a maximum output current of 250mA.
It supports input voltages ranging from 2.7V to 13.2V.
The quiescent current is only 2 microamperes, which helps minimize power consumption.
This voltage regulator is housed in a TO-92 3-pin package, designed for through-hole mounting.
It features five outputs, allowing for multiple voltage regulation points.
The package dimensions are approximately 4.71mm in length, 4.62mm in height, and 3.62mm in width.
Yes, it complies with RoHS standards for environmental safety.
The output type is positive polarity, which ensures compatibility with standard circuit designs.
It is suitable for industrial controls, embedded systems, instrumentation, telecommunications, and consumer electronics.
