Microchip MCP6XXXEV-AMP2 Operational Amplifier Evaluation Board for MCP6XXX Amplifier Evaluation Board 2 MCP6XXXEV-AMP2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MCP6XXXEV-AMP2 |
| For Use With | MCP6XXX Amplifier Evaluation Board 2 |
| Kit Classification | Evaluation Board |
| Featured Device | MCP6XXX |
| Kit Name | MCP6XXXEV |
| Analogue Function | Operational Amplifier |
| Supports all Microchip single op amps | 8-pin PDIP package (e.g., MCP6021) is socketed, 8-pin SOIC package can be accommodated |
Key Features
- The board supports inverting and non-inverting summing amplifiers configurations.
- All amplifier resistors and capacitors are socketed for easy replacement.
- Component labels on the board match the schematic generated in the Mindi™ Amplifier Designer.
- The board supports all Microchip single op amps in 8-pin PDIP and accommodates 8-pin SOIC packages.
- Includes test points for easy connection to laboratory equipment.
- Operates in a single supply configuration suitable for various testing applications.
Product Description

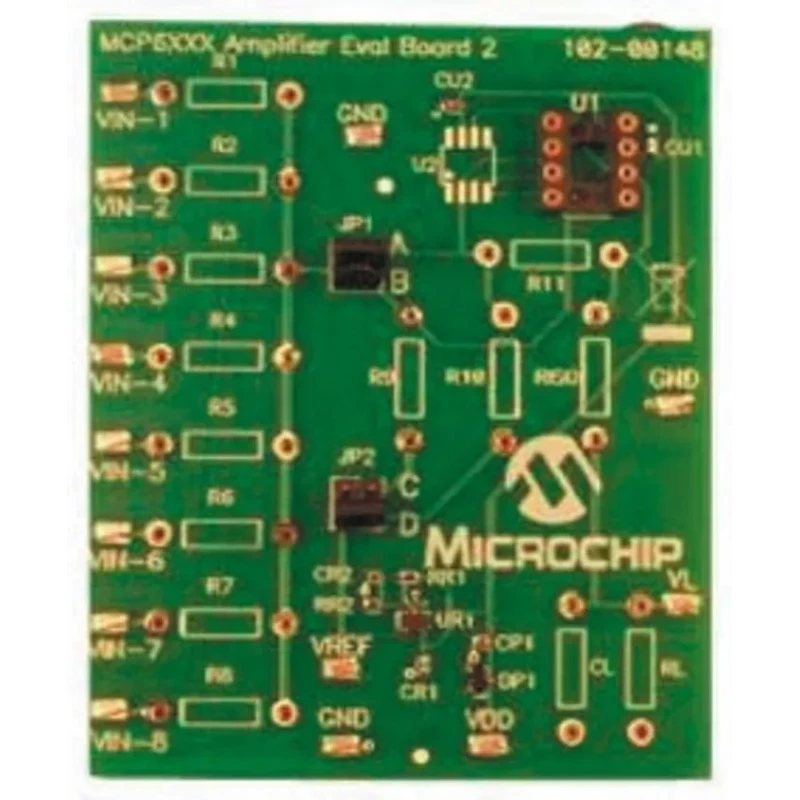

Microchip MCP6XXXEV-AMP2 Operational Amplifier Evaluation Board is designed specifically to work with the MCP6XXX Amplifier Evaluation Board 2 kits. It offers a versatile platform for engineers and designers to test and evaluate operational amplifier circuits.
The evaluation board supports both inverting summing amplifiers and non-inverting summing amplifiers, providing flexibility in circuit testing. All amplifier resistors and capacitors are socketed, enabling easy component substitution and experimentation.
Component labeling on the board is consistent with schematics generated using Microchip's Mindi™ Amplifier Designer software, which facilitates easy reference and assembly.
This evaluation board is compatible with all Microchip single operational amplifiers featuring the 8-pin PDIP package, such as the MCP6021, and can also accommodate the 8-pin SOIC package variants. Test points are strategically placed to connect laboratory measurement equipment efficiently for performance analysis.
The design allows single supply operation, simplifying power requirements and enhancing convenience during laboratory and industrial testing scenarios. The board supports inverting and non-inverting summing configurations for operational amplifiers.
Socketed resistors and capacitors enhance configurability and testing capabilities. Component labels correspond exactly with Mindi™ Amplifier Designer schematics. Compatible with 8-pin PDIP and SOIC package Microchip op amps.
Includes test points allowing straightforward lab equipment connections. Operates under single supply configuration for versatile use. This evaluation board is suitable for applications in electronics development, laboratory testing, and semiconductor amplifier evaluation in research and industrial environments.
Explore more Microchip Operational Amplifier evaluation boards and related development tools on EnvMart for a comprehensive selection of electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6XXXEV-AMP2 evaluation board supports both inverting and non-inverting summing amplifier configurations, providing flexibility for circuit testing.
This model is compatible with all Microchip single operational amplifiers in the 8-pin PDIP package and can also accommodate 8-pin SOIC package variants.
The socketed resistors and capacitors allow for easy replacement and experimentation, enhancing configurability and testing capabilities.
The evaluation board includes strategically placed test points that allow for straightforward connections to laboratory measurement equipment for performance analysis.
It operates in a single supply configuration, simplifying power requirements for various testing applications.
Yes, the component labeling on the board matches the schematics generated by Microchip's Mindi™ Amplifier Designer software, facilitating easy reference and assembly.
The MCP6XXXEV-AMP2 evaluation board is manufactured in India.
This board is suitable for applications in electronics development, laboratory testing, and semiconductor amplifier evaluation in both research and industrial environments.
The evaluation board includes socketed amplifier resistors and capacitors, but specific additional components are not detailed in the provided information.
The model name of this evaluation board is MCP6XXXEV-AMP2.
The featured device for this evaluation board is the MCP6XXX operational amplifier series.
This product is classified as an Evaluation Board, specifically designed for testing operational amplifiers.
