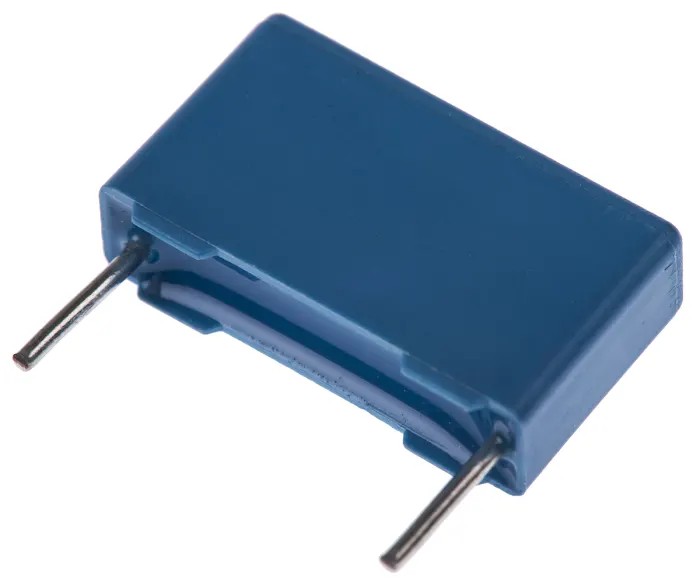

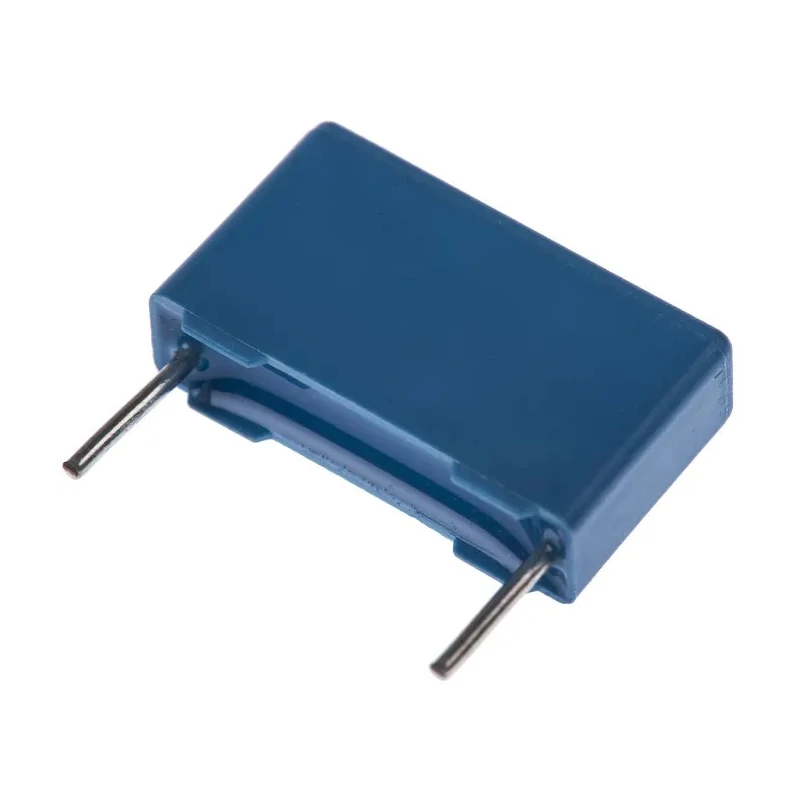

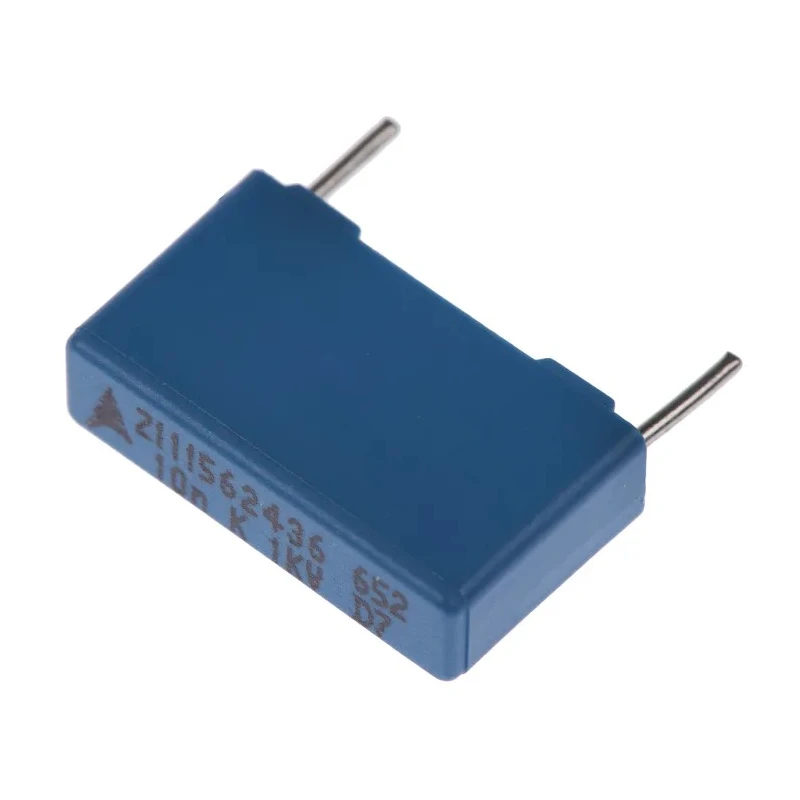

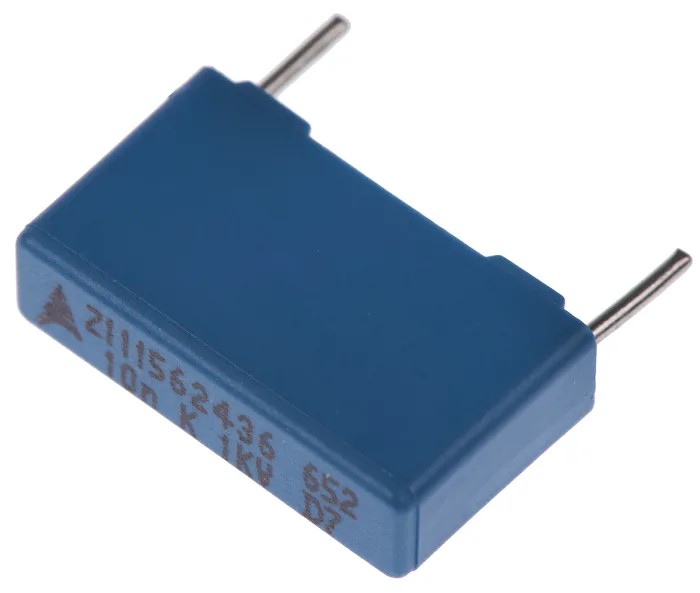

TDK Film Capacitor 10 nF 250V AC 1 kV DC Through Hole 2 Pin B32652A0103K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 10 nF 250V AC 1 kV DC Through Hole 2 Pin B32652A0103K000



Category Film Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	18mm
Model	B32652A0103K000
Width	5mm
Mount Type	Through Hole
Series	B32654
Maximum Operating Temperature	100°C
Capacitance	10nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	250V ac
Rated DC Voltage	1kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
KEMET PHE450 Film Capacitor, ±5 %, 10 nF 1 kV dc 180V ac, Through HoleBrand	KEMET

Key Features

Wound capacitor technology with internal series connection for voltage ratings ≥1250V DC.
Encapsulated in a flame retardant plastic case compliant with UL 94 V-0 standard.
High pulse strength and high contact reliability for demanding electronics applications.
Compact dimensions with 18mm length, 10.5mm height, and 5mm width.
Lead pitch of 15mm with 0.8mm lead diameter suitable for through-hole PCB mounting.
Maximum operating temperature up to 100°C ensures reliable performance.
Certified to automotive standard AEC-Q200 Rev D for dependable use in automotive applications.
Complies with RoHS and UL safety standards.

Product Description

The TDK B32652A0103K000 is a precision Film Capacitor designed for use in electronic components requiring reliable and stable capacitance performance. Featuring a capacitance of 10 nF, this capacitor supports an AC voltage rating of 250V and a DC voltage rating of 1 kV, making it suitable for high voltage applications.

Constructed using wound capacitor technology with an internal series connection, it achieves voltage resistance of 1250Vdc or higher. The capacitor is housed in a flame retardant plastic case certified to UL 94 V-0, sealed with epoxy resin for enhanced durability and environmental protection.

Designed for through-hole mount applications, it features 2 pins with a 15mm lead pitch and a lead diameter of 0.8mm. With compact physical dimensions of 18mm length, 10.5mm height, and 5mm width, it is ideally suited for space-constrained PCB designs. It is rated to operate reliably up to 100°C and complies with the automotive AEC-Q200 Rev D standard, ensuring suitability for automotive and other demanding environments.

This capacitor meets RoHS and UL standards, affirming its compliance with safety and environmental regulations. Typical industrial uses include TV S-correction circuits, TV flyback circuits, and electronic ballast circuits, where high pulse strength and contact reliability are essential.

Wound capacitor technology with internal series connection for voltage rating ≥1250V DC. Plastic case with UL 94 V-0 flame retardant rating and epoxy resin sealing. High pulse strength and contact reliability for robust performance.

Compact dimensions: 18mm length, 10.5mm height, 5mm width. Lead pitch 15mm and lead diameter 0.8mm for through-hole mounting. Maximum operating temperature of 100°C. Certified to automotive standard AEC-Q200 Rev D. Compliant with RoHS and UL standards.

Applications in TV S-correction, flyback, and electronic ballast circuits. Explore a wide range of capacitors and electronic components on EnvMart for industrial, automotive, and electronic manufacturing sectors.
