TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Crimp, 2.79 x 0.51 mm Tab Size 165565-1

Free Delivery in India | Lowest Global Shipping Charges

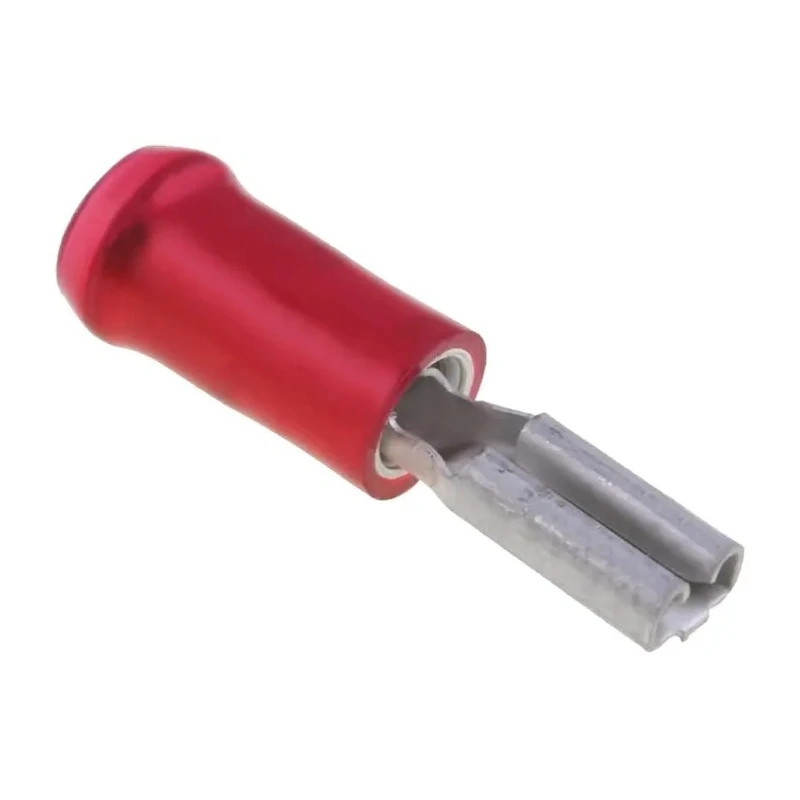

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Crimp, 2.79 x 0.51 mm Tab Size 165565-1

Name: TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Crimp, 2.79 x 0.51 mm Tab Size 165565-1
Brand: TE Connectivity
SKU: 158995
Price: 1.21 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
Orientation	Straight
Model	165565-1
Gender	Female
Insulation	Insulated
Overall Length	19.8mm
Contact Material	Brass
Series	PIDG FASTON .250
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	15AWG
Tab Width	2.79mm
Tab Thickness	0.51mm
Tab Size	2.79 x 0.51 mm

Key Features

Crimp termination provides secure and reliable electrical connections.
Female gender design ensures compatibility with male terminals.
Red nylon insulation sleeve allows easy color coding and enhances safety.
Constructed with brass contact material plated with tin for durability and excellent conductivity.
Straight orientation facilitates straightforward installation in various applications.
Overall length of 19.8 mm ensures compact fitting in electrical assemblies.
Compatible with wire sizes ranging from 0.3 mm² to 1.5 mm² (22 AWG to 15 AWG).

Product Description

TE Connectivity 165565-1 PIDG FASTON .250 Red Insulated Female Spade Connector is a precision-engineered crimp terminal designed for quick disconnect applications in electrical and electronic assemblies. Featuring a 2.79 x 0.51 mm tab size, it is suitable for wire sizes from 22 AWG to 15 AWG, providing versatile connectivity solutions.

This connector incorporates a brass contact body plated with tin to prevent corrosion and maintain excellent electrical conductivity. The nylon red insulation sleeve is color-coded for easy identification and safety compliance. The straight orientation makes it ideal for use in compact spaces or panel wiring where space-saving is critical.

The design includes a precision-formed metal barrel with serrations that ensure maximum contact and tensile strength once crimped. The PIDG FASTON series is known for its reliable performance in automotive, industrial, and electronic equipment wiring.

Applications include wiring harnesses, panel wiring, and quick disconnect needs in industrial, automotive, HVAC, and manufacturing settings. This component meets the functional needs of electrical engineers and technicians seeking durable, easy-to-assemble connectors.

Crimp termination for robust electrical connections. Female spade configuration enhances compatibility. Red nylon insulation sleeve for safety and color coding. Brass contact with tin plating for corrosion resistance. Straight orientation for flexible installation.

Accepts wire sizes 0.3 to 1.5 mm², 22 AWG to 15 AWG. Compact overall length of 19.8 mm. Discover more PIDG FASTON series connectors in the Electronics & Electricals category at EnvMart for your industrial and commercial wiring projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The tab size of this connector is 2.79 x 0.51 mm.

It is compatible with wire sizes ranging from 0.3 mm² to 1.5 mm², which corresponds to 22 AWG to 15 AWG.

The overall length of this spade connector is 19.8 mm.

This connector uses crimp termination for secure electrical connections.

The contact material is brass, which is plated with tin to enhance conductivity and prevent corrosion.

The insulation of this connector is red, allowing for easy color coding and safety compliance.

The connector features a straight orientation, making it suitable for compact installations.

This model is suitable for applications including wiring harnesses, panel wiring, and quick disconnect needs in automotive, industrial, HVAC, and manufacturing settings.

This connector is designed as a female spade connector, ensuring compatibility with male terminals.

The insulation material is nylon, which provides safety and durability.

The country of origin for this connector is India.

This connector is part of the PIDG FASTON .250 series.
