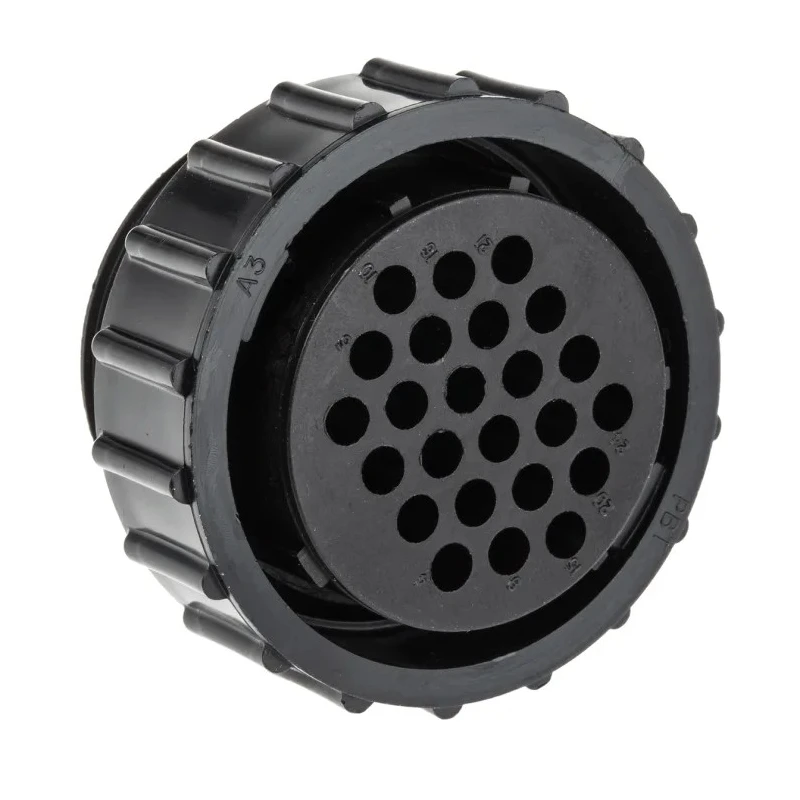

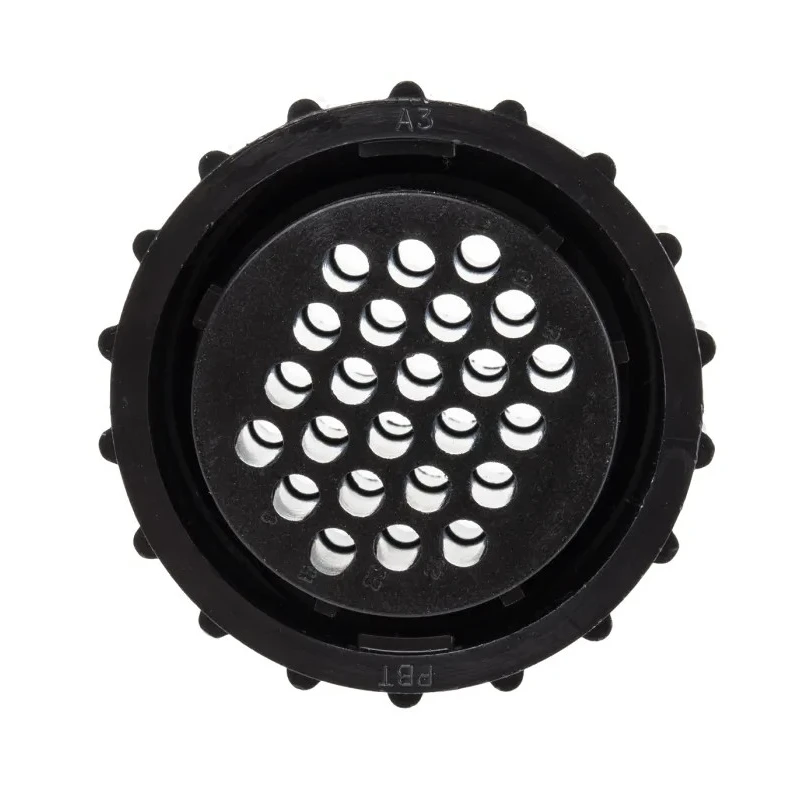

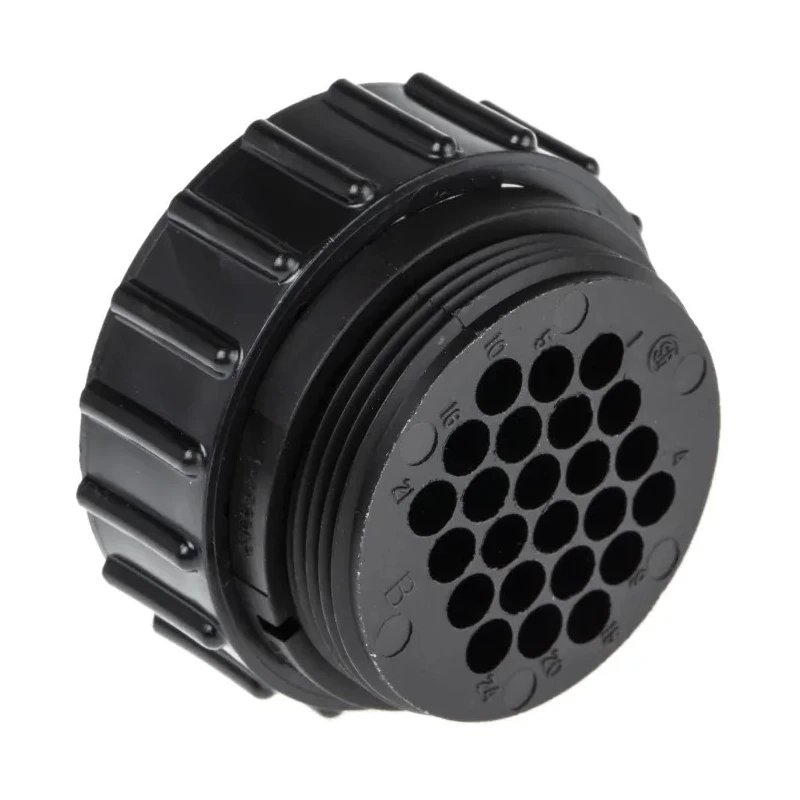

TE Connectivity Circular Connector 24 Contacts Cable Standard Connector Plug Female CPC Series 206837-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 206837-1 |
| Mount Type | Cable |
| Housing Material | Glass Filled Nylon |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, RoHS, UL 94V-0 |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Shell Size | 23 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | A |
| Toughcon Connector, 24 Contacts, Cable Mount, Plug, Female, IP65, TM SeriesBrand | Toughcon |
Key Features
- Designed for cable mount with a threaded mating type for secure connection.
- Operates at a voltage rating of 600V and current capacity of 13A.
- Constructed from glass-filled nylon housing material for heat resistance and durability.
- Supports crimp termination and suitable for rugged industrial environments.
- Rated for operation between -55°C to 105°C with UL 94V-0 standards compliance.
- Features positive lock coupling and knurled ring to prevent accidental disengagement.
- Compatible with Series 1 CPC connectors, suitable for signal and low current applications.
- Ideal for use in rail systems, HVAC, industrial automation, and transportation industries.
Product Description
TE Connectivity 206837-1 Circular Connector is a high-quality cable-mounted connector with 24 female contacts, part of the CPC (Circular Plastic Connector) Series. It is engineered for reliable electrical connections in industrial and automation applications, capable of handling signals up to 13A at 600V.
The connector features a straight orientation plug design with a rugged glass-filled nylon housing rated UL 94V-0 for self-extinguishing properties, ensuring safety and durability. It supports crimp termination for easy field assembly and repair, making it suitable for rapid maintenance.
The CPC series connectors provide a positive locking mechanism with a knurled coupling ring, preventing accidental disconnections during use. Rated to operate reliably in harsh environments with temperatures ranging from -55°C to 105°C, this connector is built to withstand vibration and shock.
Applications of this connector include rail and transit vehicles, industrial automation, HVAC systems, commercial building equipment, and transportation machinery such as buses and off-road vehicles.
Designed for cable mount with threaded mating type for secure connection. Rated voltage: 600V; current capacity: 13A. Glass-filled nylon housing for heat resistance and robustness. Enables quick assembly and repair with crimp termination.
Positive lock prevents accidental disengagement.
This connector is manufactured in Mexico and meets CSA, RoHS, and UL 94V-0 standards, ensuring compliance and quality assurance. The CPC series from TE Connectivity offers solutions tailored for industrial, process control, and transportation applications with high reliability.
Explore more industrial connectors and related products in EnvMart’s Electronics & Electricals category.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates at a voltage rating of 600V and has a current capacity of 13A.
It is rated for operation between -55°C and 105°C, making it suitable for harsh environments.
This model supports crimp termination, allowing for easy field assembly and repair.
The housing is constructed from glass-filled nylon, which provides heat resistance and durability.
This connector features 24 female contacts, designed for reliable electrical connections.
It has a threaded mating type, ensuring a secure connection during use.
Yes, it meets CSA, RoHS, and UL 94V-0 standards, ensuring compliance and quality assurance.
It is ideal for use in rail systems, HVAC, industrial automation, and transportation industries.
This connector features a straight orientation plug design.
The shell size for this model is 23.
This connector is manufactured in Mexico.
Yes, it features a positive lock coupling with a knurled ring to prevent accidental disengagement.
