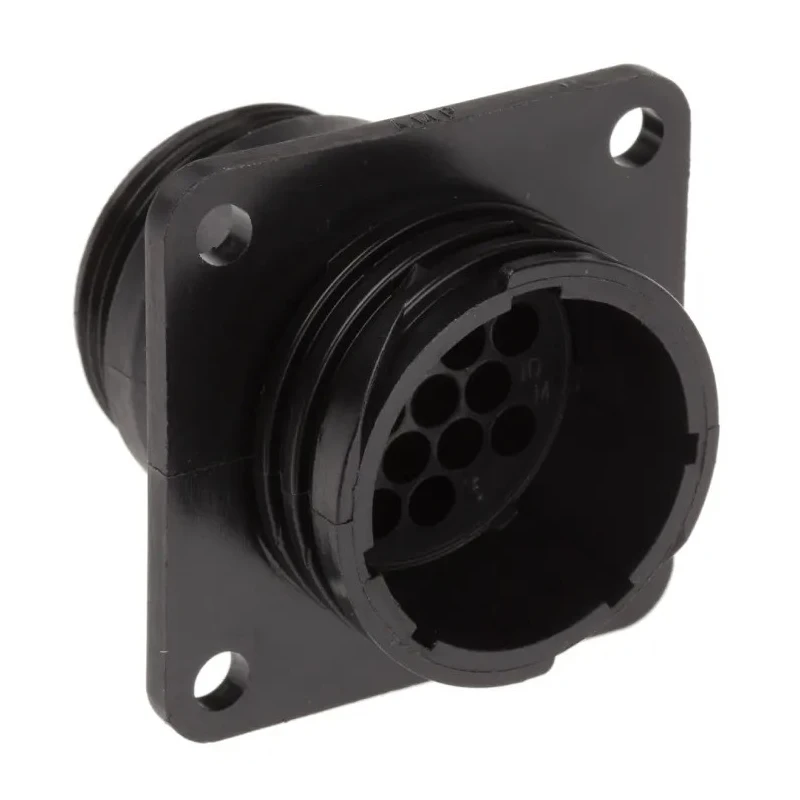

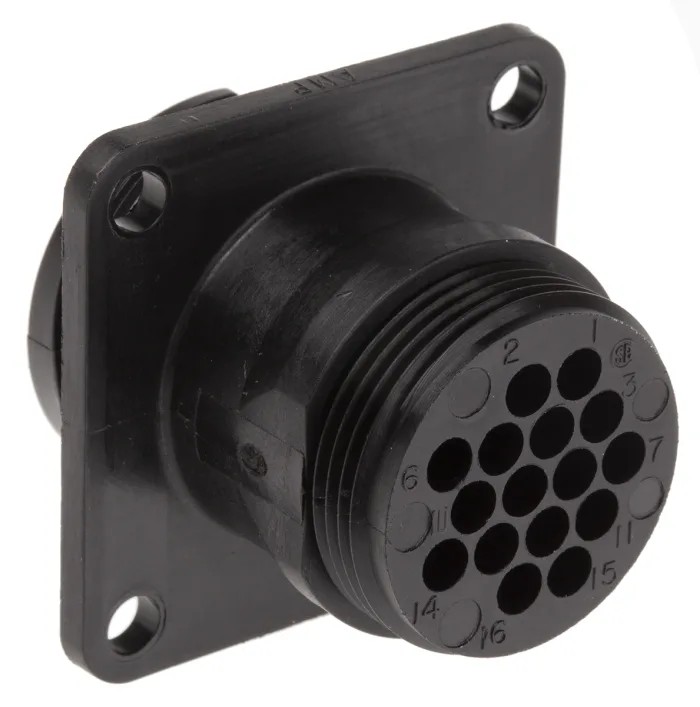

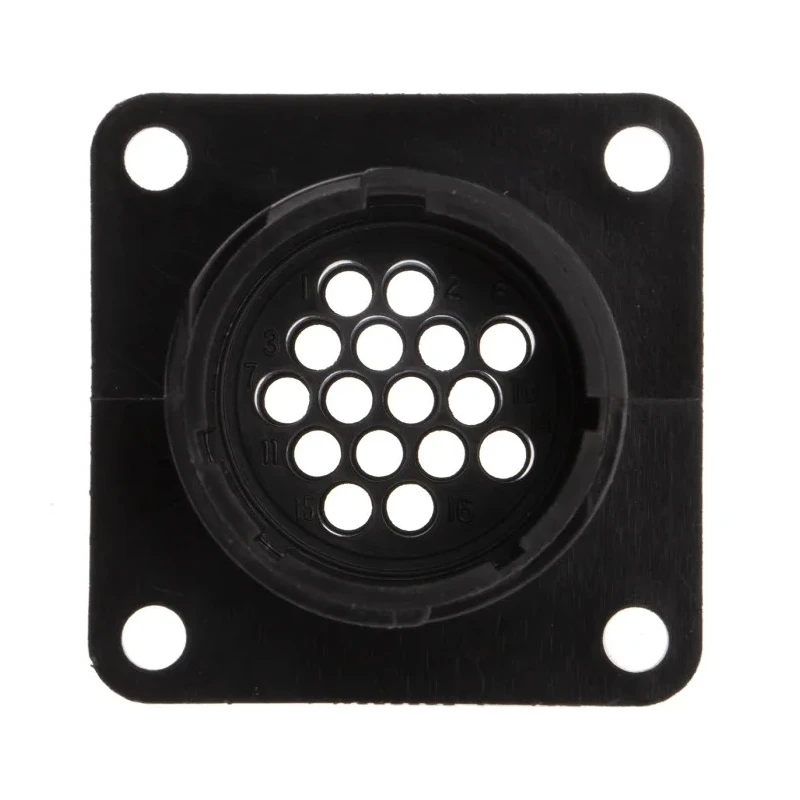

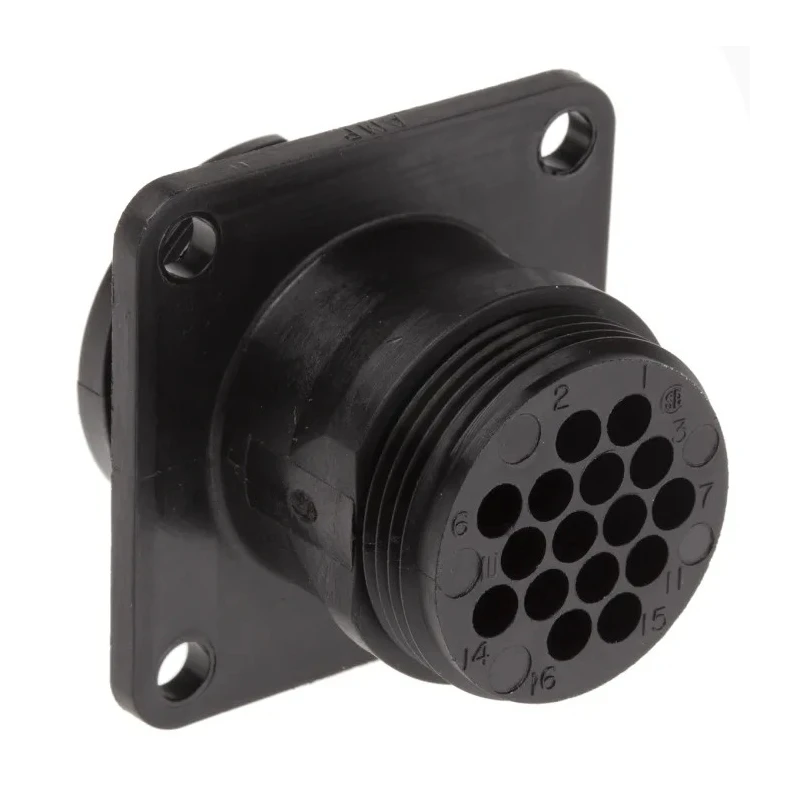

TE Connectivity Circular Connector, 16 Contacts, Panel Mount, Standard Size, Plug, Female, 13A, 600V, Nylon 206036-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 206036-1 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Shell Size | 17 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Series 1 | Standard density. Specifically designed for signal and low power current applications. Series 1 connectors are available in 4-37 pole with signals up to 13A |
Key Features
- Constructed from UL94V-0 rated nylon housing for high durability.
- Designed for industrial and commercial applications requiring reliable and rugged connectors.
- Features bayonet mating type providing secure and quick connect/disconnect.
- Suitable for signal and low power current applications up to 13A.
- Operating temperature range from -55°C to 105°C.
- Polarized to ensure proper mating and prevent misconnection.
- Terminated via crimp contacts, facilitating easy field repairs.
- Shell size 17 with a straight orientation for easy panel installation.
Product Description
TE Connectivity 206036-1 Circular Connector is a panel mount plug type connector featuring 16 female contacts. Designed for industrial, process control, agricultural, HVAC, automotive, and instrumentation applications, this connector supports currents up to 13A at 600 volts. The nylon housing material complies with UL94V-0 flammability standards, ensuring ruggedness and heat resistance across an operating temperature range of -55°C to 105°C.
This connector is part of the CPC series, known for its reliable, quick connect and disconnect functionality using a bayonet mating type. The polarized design guarantees correct connection while minimizing accidental disengagement risks. Crimp termination enables rapid onsite installation and maintenance by allowing damaged contacts to be replaced easily.
Its standard size and shell size 17 with straight orientation make it well-suited for panel mount applications demanding durable, vibration and shock-resistant connectors. The lightweight, fully plastic construction provides an economical alternative to metal connectors while maintaining industrial strength and performance.
Constructed from UL94V-0 rated nylon housing for durability and heat resistance. Supports up to 13A current with voltage rating of 600 volts. Panel mount connector with crimp termination for quick field assembly and repair.
Polarized bayonet mating system ensures secure and accurate connections. Suitable for industrial machinery, HVAC, automotive, and industrial automation applications. Operating temperature range from -55°C to 105°C for harsh environments.
Series 1 standard density connector designed for low power and signal applications. Shell size 17 with straight orientation easing panel installation. Lightweight and cost-effective all-plastic design.
The TE Connectivity CPC series connectors are widely used in industrial and commercial sectors requiring robust and reliable circular connectors that withstand vibration, shock, and environmental stress. This connector offers easy repairability and quick assembly to minimize downtime. Explore more options and specifications in the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 13A.
The voltage rating for this connector is 600V.
It operates within a temperature range of -55°C to 105°C.
This connector features 16 female contacts.
It uses crimp termination for easy field repairs and maintenance.
The housing is constructed from nylon that complies with UL94V-0 flammability standards.
This connector has a straight orientation for easy installation.
It features a bayonet mating type, allowing for secure and quick connect/disconnect.
It is designed for industrial, process control, agricultural, HVAC, automotive, and instrumentation applications.
This model has a shell size of 17.
The country of origin for this connector is India.
It belongs to the CPC series, which is known for its reliability in industrial applications.
