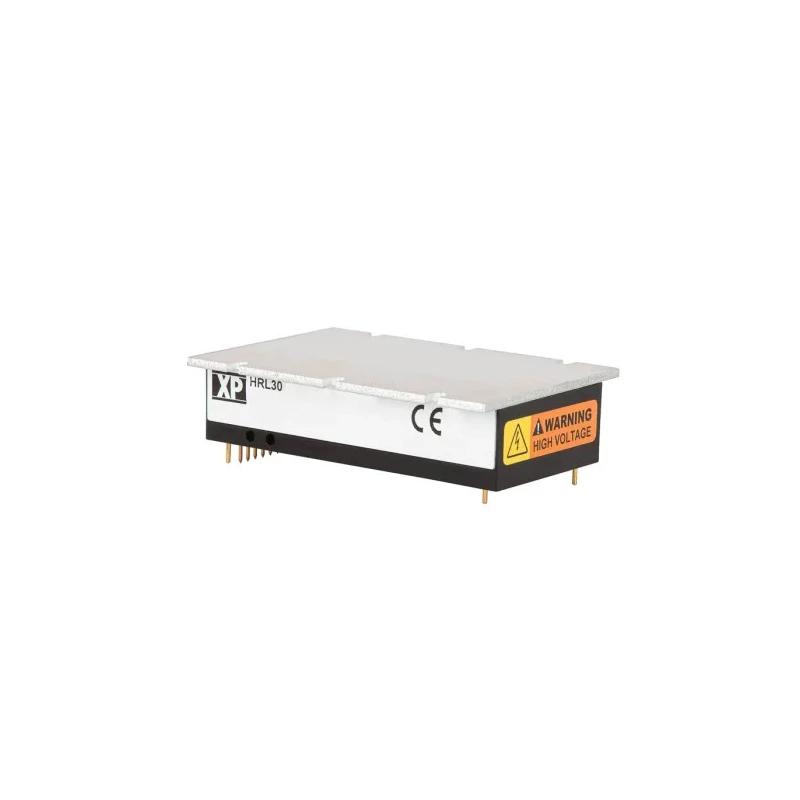

XP Power High Voltage DC/DC Converter 6000V Output 30W 30V DC Input Through Hole HRL30
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power HRL30 DC/DC Converter, 6000V dc/, 30V dc |
| Brand | XP Power |
| Efficiency | 85% |
| Operating Temperature | -40°C to +70°C |
| Length | 76.2mm |
| Model | HRL30 |
| Depth | 18.6mm |
| Gross Weight | 120g |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | HRL30 |
| Maximum Operating Temperature | 70°C |
| Package Type | DAP Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 1mH |
| Number of outputs | 1 |
| Ripple and Noise | 5% |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 30V dc |
| Minimum Input Voltage | 22V |
| Number of Pins | 14 |
| Output Voltage 1 | 6000V dc |
| Output Current 1 | 300mA |
Key Features
- Provides a regulated high voltage output up to 6000V DC for precise applications.
- Operates with a low ripple noise of 5%, ensuring stable power delivery.
- Features a through-hole mounting type for easy installation.
- Wide operating temperature range from -40°C to 70°C suitable for harsh environments.
- Includes short circuit, arc, and overload protections for enhanced safety.
- Efficiency of approximately 85% supports energy-efficient operation.
- Equipped with voltage and current mode controls and monitors for convenient usage.
- Compact size with dimensions of 76.2mm length, 50.8mm width, and 18.6mm depth.
Product Description
XP Power HRL30 DC/DC Converter model HRL30 is a high voltage, 30 watt DC-to-DC conversion solution designed for demanding industrial and scientific applications. It provides a regulated output voltage up to 6000V DC with an input voltage range of 22 to 30V DC. The unit features a through-hole mount design and a DAP case package type ensuring robust mechanical stability.
This converter delivers high efficiency of 85% with low electromagnetic interference, featuring a proprietary topology that supports both voltage and current mode controls with digital compatible monitoring outputs. It automatically switches to current limiting mode to protect against overcurrent conditions, making it optimal for sensitive equipment.
The HRL30 operates reliably in extreme temperature environments, ranging from -40°C to +70°C, making it suitable for industrial, laboratory, HVAC, manufacturing, water treatment, and other commercial use cases requiring precise high voltage DC power supply.
Additional protective features include short circuit, arc, and overload protection, safeguarding connected devices. The compact footprint (76.2mm x 50.8mm x 18.6mm) and robust 14-pin configuration enable seamless integration into electronic systems.
High voltage output up to 6000V DC with programmable voltage and current settings. Low ripple and noise within 5% for stable power output. Designed for high efficiency and low EMI operation. Wide operating temperature capability from -40°C to 70°C.
Robust protections against short circuit, arcs, and overloads. Convenient digital compatible voltage and current monitoring. Compact through-hole package with DAP case design. One output channel with 14 pins for reliable connections.
Manufactured in the United States adhering to RoHS 2 and 3, CE, UL, and EN safety directives.
This XP Power DC/DC converter is ideal for precision, high voltage applications across multiple industries. For more DC/DC Converters and power supplies, explore related products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 6000V DC.
This unit supports an input voltage range of 22V to 30V DC.
The efficiency of this converter is approximately 85%.
It operates reliably in a temperature range from -40°C to +70°C.
It features a through-hole mounting type for easy installation.
This model includes short circuit, arc, and overload protections for enhanced safety.
The dimensions of this unit are 76.2mm in length, 50.8mm in width, and 18.6mm in depth.
This converter has one output channel.
It has a low ripple and noise specification of 5%.
It is packaged in a DAP case type, ensuring robust mechanical stability.
The maximum output current of this model is 300mA.
This unit is manufactured in the United States.
