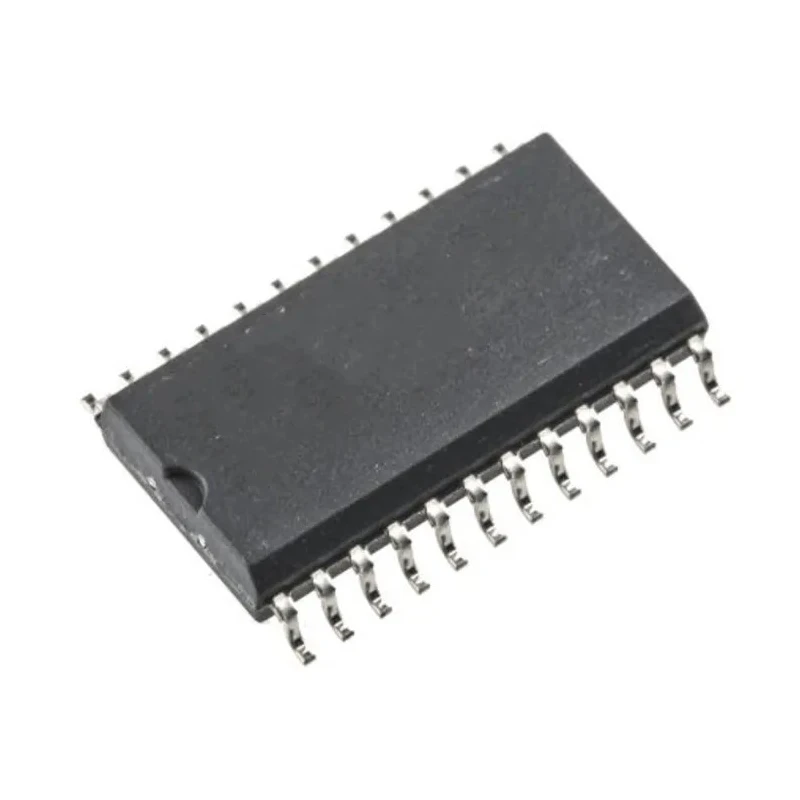

STMicroelectronics 16 Output Surface Mount LED Display Driver, 20V, 5 to 90 mA Constant Current 0 to 100% STP16CPC26MTR

The STMicroelectronics STP16CPC26MTR is a monolithic low-voltage 16-output LED display driver designed for applications requiring precise constant current LED control and high integration. It features sixteen regulated current outputs that sink 5 mA to 90 mA per channel, set externally with a resistor, enabling detailed brightness control from 0 to 100% dimming via the output enable (OE) pin.

Operating under a supply voltage range of 3 to 5.5 V, this device ensures efficient power consumption while delivering a driving capability up to 20 V, allowing multiple LEDs to be connected in series per output channel. The STP16CPC26MTR includes a 16-bit shift register and data latch for converting serial input into parallel LED driving signals with a maximum clock frequency of 30 MHz, supporting high-speed data transmission.

Integrated thermal shutdown circuitry protects the device by triggering shutdown at 170 °C with hysteresis, thus preventing damage due to overheating during demanding operation conditions. The product is available in multiple surface mount packages including QSOP24, SO-24, TSSOP-24, and HTSSOP-24 (with exposed pad), providing flexibility for PCB assembly and thermal performance.

This LED driver is ideal for industrial, electronic display, and LED lighting applications requiring precise brightness control and multiple LED outputs, commonly used in instrumentation, signage, and automotive lighting. Its compliance with RoHS standards contributes to environmentally responsible manufacturing and safety in deployment.

Monolithic 16-bit constant current LED sink driver for precise LED control. Outputs sixteen regulated current channels adjustable via external resistor. Supports dimming operation from 0% to 100% with the OE pin. Rated for 20 V output voltage enabling series connection of multiple LEDs.

Operates with input voltage from 3 to 5.5 V for efficient power use. High clock frequency up to 30 MHz suitable for fast data rates. Thermal shutdown protection activates at 170 °C to prevent overheating. Available in QSOP24, SO-24, TSSOP-24, and HTSSOP-24 package types.

Compliant with RoHS standards ensuring environmental safety. Explore more electronic components and LED Drivers at EnvMart to find components suited to your industrial or commercial LED display projects.
