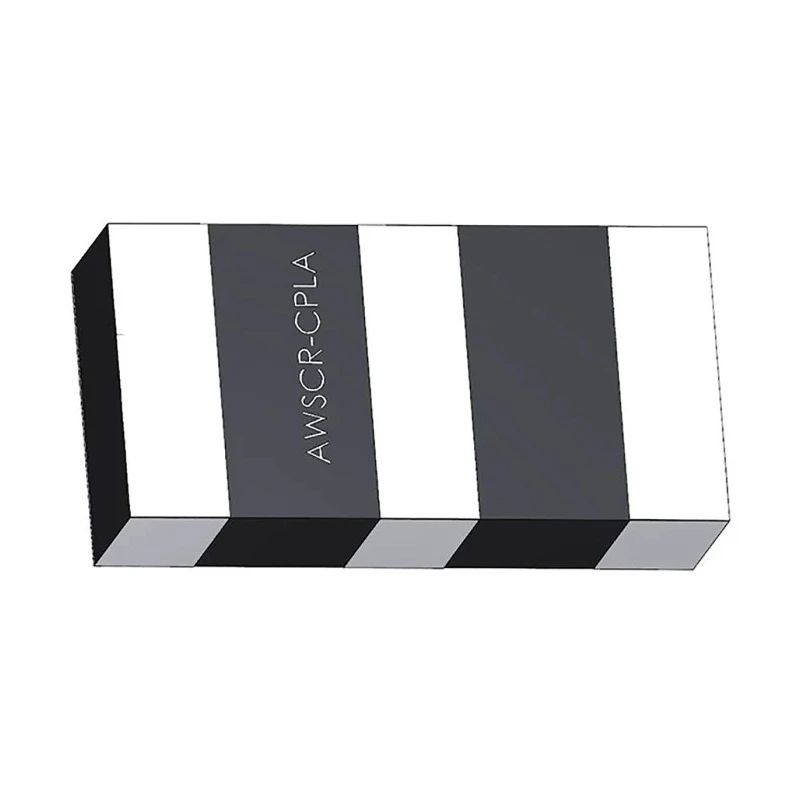

Abracon Ceramic Resonator 3.58 MHz 15 pF 3-Pin Tape & Reel AWSCR-3.58CPLA-C15-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-3.58CPLA-C15-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 15pF |
| Resonance Frequency | 3.58MHz |
| Resonance Resistance | 30Ω |
Key Features
- Industry standard footprint allows easy surface mounting.
- Low resonance impedance ensures precise oscillation.
- Wide operating temperature range from -40°C to 85°C.
- Packaged in tape and reel format for automated assembly.
- Resonance resistance rated at 30 ohms for stable performance.
- Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height.
- Termination type is solder for reliable electrical connection.
Product Description
Abracon AWSCR-3.58CPLA-C15-T4 ceramic resonator is a high-reliability surface mount electronic component designed for oscillation applications in metering systems, industrial controls, microprocessor circuits, and consumer electronics. It operates at a resonance frequency of 3.58 MHz with a load capacitance of 15 pF and a resonance resistance of 30 ohms, providing stable and precise frequency control.
This ceramic resonator is packaged in tape and reel format, suitable for automated manufacturing and assembly lines. It features 3 pins and a compact package size measuring 6 mm in length, 3 mm width, and 1.5 mm height. Its surface mount design supports ease of placement on printed circuit boards.
The device operates reliably within a wide temperature range of -40°C to 85°C and shows excellent frequency stability of ±0.3% and frequency aging of ±0.1%, making it suitable for demanding industrial and consumer applications. It is RoHS compliant, ensuring environmental safety and manufacturing quality.
Common applications include metering systems, remote control modules, industrial controls, microprocessor clock generation, and various electric appliances requiring frequency stabilization and timing control. It provides industry standard footprint compatibility to enable easy replacement or integration into existing designs.
Industry standard footprint allows easy surface mounting. Low resonance impedance ensures precise oscillation. Wide operating temperature range from -40°C to 85°C. Packaged in tape and reel format for automated assembly.
Resonance resistance rated at 30 ohms for stable performance. Frequency tolerance is ±0.5% with stability of ±0.3%. Frequency aging is ±0.1% ensuring long-term reliability. Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height.
Termination type is solder for reliable electrical connection. Explore the Electronics Components category in EnvMart for a full range of ceramic resonators and complementary oscillation devices.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of the Abracon AWSCR-3.58CPLA-C15-T4 ceramic resonator is 3.58 MHz.
This model has a load capacitance of 15 pF.
The resonance resistance is rated at 30 ohms, which contributes to its stable performance.
It operates reliably within a wide temperature range from -40°C to 85°C.
The device is packaged in tape and reel format, making it suitable for automated assembly.
The dimensions of this unit are 6 mm in length, 3 mm in width, and 1.5 mm in height.
It uses a solder termination type for reliable electrical connection.
This model features a pin count of 3.
The frequency stability is ±0.3%, with a frequency aging of ±0.1%.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
Common applications include metering systems, industrial controls, and microprocessor clock generation.
This unit supports surface mounting, allowing for easy placement on printed circuit boards.
