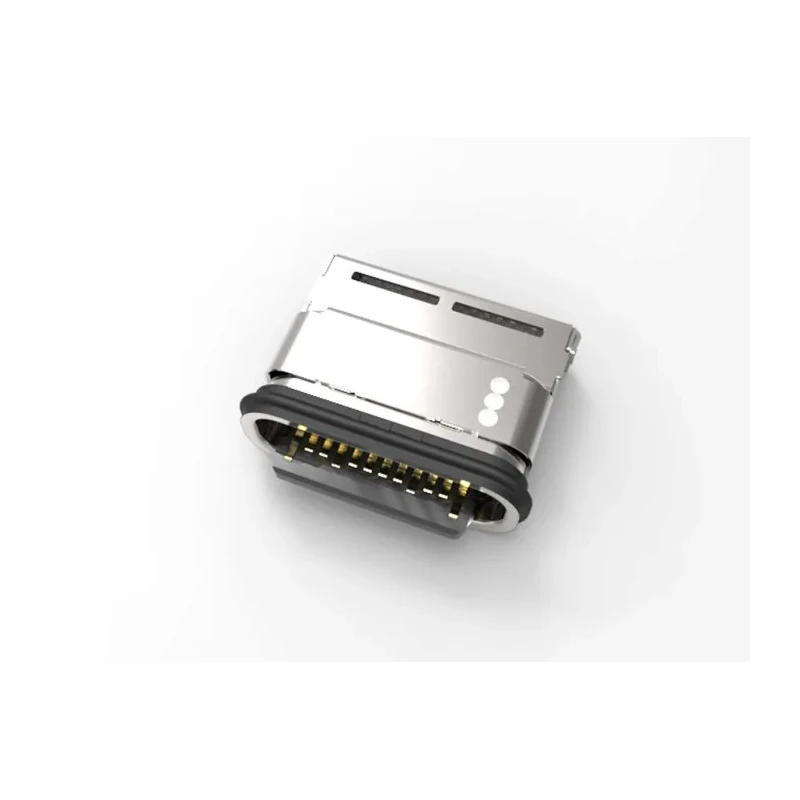

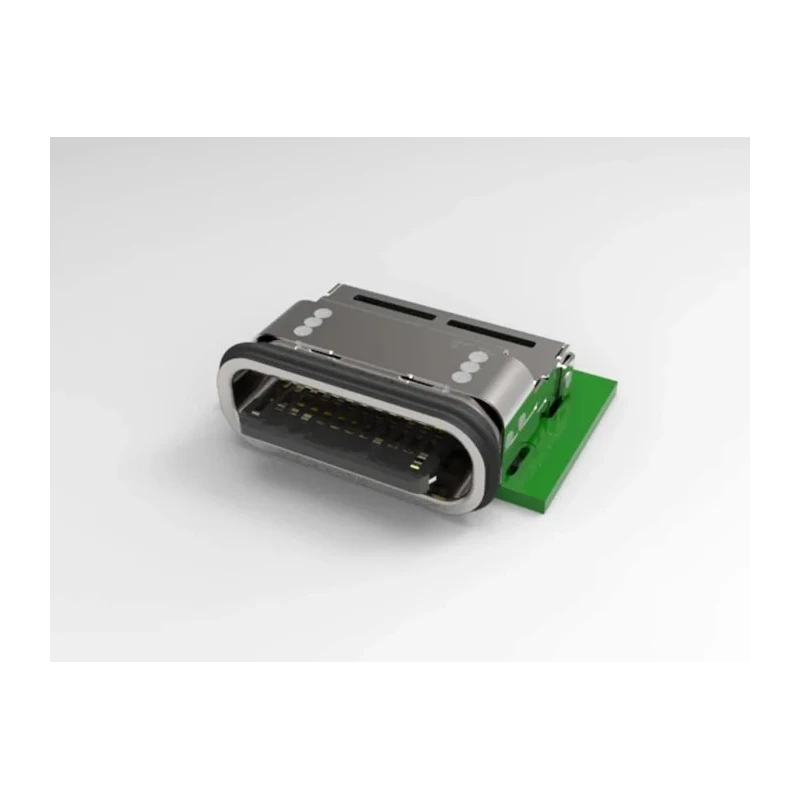

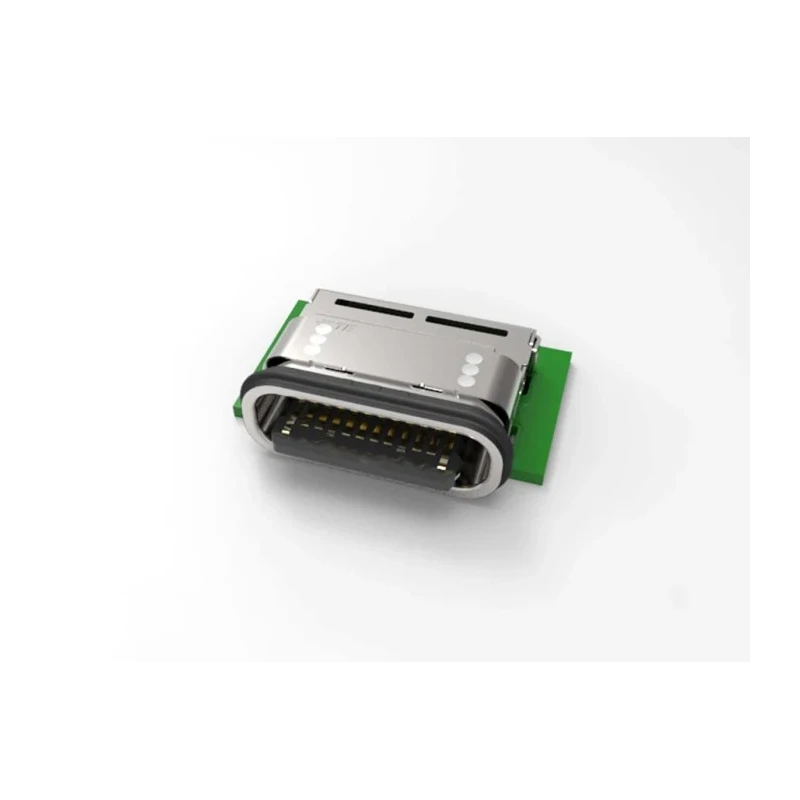

TE Connectivity Right Angle Surface Mount Female USB Type C Connector 1 Port 5A 30V IP68 2305018-2

TE Connectivity 2305018-2 is a high-quality right angle surface mount female USB Type C connector that conforms to USB 3.1 Gen 2 standards, designed for secure and reliable data and power connections in various electronic assemblies. It supports current ratings up to 5A and voltage up to 30V, making it suitable for power and signal transmission in demanding industrial, commercial, and communication equipment.

This connector features a right angle orientation to optimize PCB space and a surface mount termination type allowing easy soldering and integration on printed circuit boards. The housing is black with a nickel-plated shell providing robust corrosion protection and durability. It also boasts IP68 ingress protection, safeguarding the internal contacts from dust and water, which extends the product's operational lifetime in harsh environments.

The contact material uses copper alloy for excellent electrical conductivity, plated with 0.75 micrometers of nickel for enhanced reliability. The connector is rated for operation from -30°C to 85°C with a maximum soldering temperature of 260°C. With a rated mating cycle life of 10,000 cycles, this connector delivers long-lasting mechanical and electrical performance suitable for industrial automation, telecommunication, computing devices, and power distribution modules.

Packaged in reels of 800 pieces, the TE Connectivity 2305018-2 supports efficient pick-and-place assembly processes for high-volume manufacturing. The connector is compliant with IEC standards but does not have additional certifications or hazardous area approvals.

USB Type C connector with USB 3.1 Gen 2 support provides fast data transfer and power delivery. Right angle female receptacle with surface mount solder termination for PCB integration. Copper alloy contacts with nickel plating ensure conductivity and corrosion resistance.

IP68 rated for superior dust and water ingress protection suitable for harsh environments. Wide operating temperature range: -30°C to 85°C for versatile applications. Supports 5A current at 30V voltage rating, suitable for power and signal use.

Durable mechanical design rated for 10,000 mating cycles with controlled soldering temperature. Supplied in reels of 800 units for automated PCB assembly in electronics manufacturing.

This USB connector is ideal for use in industrial electronics, telecommunications, computer peripherals, and power management applications. Its rugged design and versatile mounting style make it a reliable component for demanding environments.
