Broyce Control NFC Monitoring Relay 3 Phase SPDT DIN Rail 243V AC 540V AC LPRC/2-NFC

Free Delivery in India | Lowest Global Shipping Charges

Broyce Control NFC Monitoring Relay 3 Phase SPDT DIN Rail 243V AC 540V AC LPRC/2-NFC

Name: Broyce Control NFC Monitoring Relay 3 Phase SPDT DIN Rail 243V AC 540V AC LPRC/2-NFC
Brand: Broyce Control
SKU: 158331
Price: 162.19 USD
Availability: InStock



Category Monitoring Relay Brand Broyce Control Condition New

Specifications

Country of Origin	United Kingdom
Brand	Broyce Control
Height	89mm
Length	66.5mm
Model	LPRC/2-NFC
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Series	L
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	UL, EMC, RoHS, IEC 60664, CE
Contact Current	5A
Supply AC Voltage	243, 540V ac

Key Features

Programmable via smartphone NFC app for flexible configuration.
Compact DIN rail mounting with only 17.5mm width.
Two independent SPDT relay outputs configurable for various monitoring functions.
Monitors own supply on 3 and 4-wire systems with customizable trip and time settings.
LED indication for operational status and tamperproof programming.
Wide operating temperature range with UL, EMC, RoHS, IEC 60664, and CE approvals.
Easy cloning of settings for multiple units ensuring uniform installation.
Contact current rating of 5A suitable for industrial control applications.

Product Description

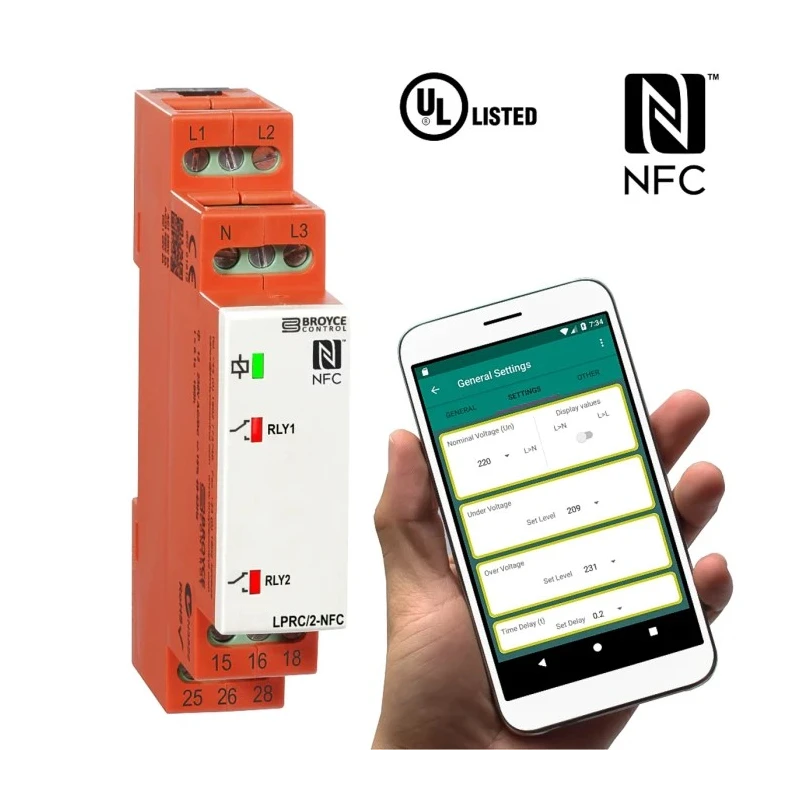

The Broyce Control LPRC/2-NFC is an advanced NFC Monitoring Relay designed for three-phase electrical systems requiring precise control and monitoring. Featuring a compact form factor with DIN rail mounting, this relay supports supply voltages of 243V AC and 540V AC. Its dual SPDT relay outputs provide versatile switching options with independent assignment for various monitoring and protection tasks.

This device can be programmed quickly and securely via a smartphone application using NFC technology, offering enhanced flexibility and tamperproof setting capabilities. It supports monitoring of its own supply on 3 and 4-wire configurations with fully customizable trip and timing parameters, ensuring optimal protection and diagnostics.

Thanks to intelligent LED indicators, operators receive clear visual feedback on device status. With robust construction, it operates reliably within an ambient temperature range up to 60°C and meets UL, EMC, RoHS, IEC 60664, and CE safety and performance standards. The narrow 17.5mm width allows space-saving installation in control panels.

This monitoring relay is ideally suited for industrial automation, electrical distribution, HVAC systems, and any applications requiring reliable phase monitoring and load protection. The ability to easily clone device settings simplifies commissioning of multiple units in large installations.

Programmable using smartphone NFC app for total flexibility. Two independent SPDT relay outputs for versatile control. Customizable monitoring of 3 and 4-wire supplies with timed trip functions. Compact design with 17.5mm width for DIN rail installation.

Users benefit from intelligent LED status indication and tamperproof settings. Certified to UL, EMC, RoHS, IEC 60664, and CE standards for safety compliance. Ideal for industrial, electrical automation, and building management systems.
