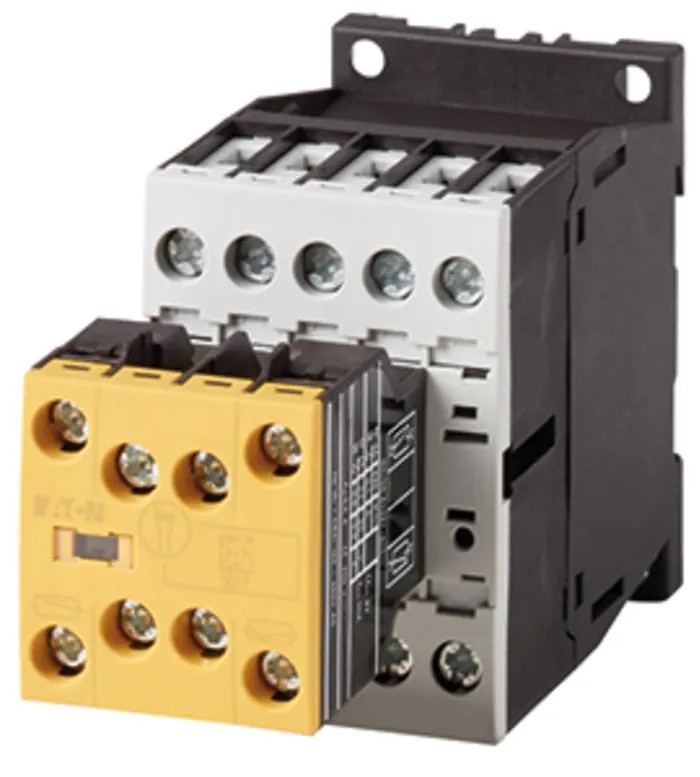

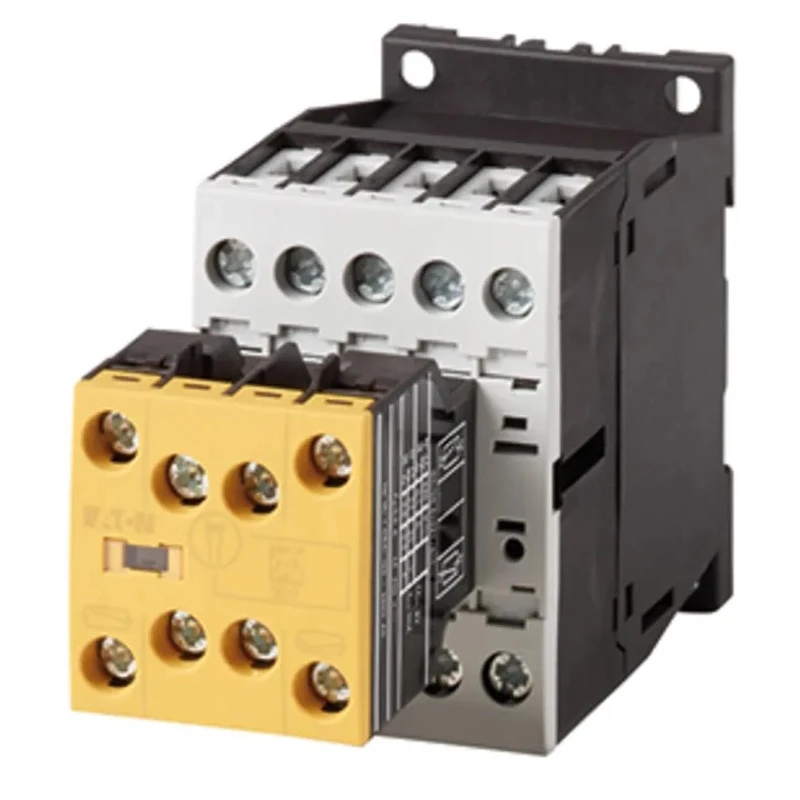

Eaton DILAS Safety Contactor 4-Pole 4 A 240V AC Coil 1.4W 110V Control 4 NO/4 NC 415V AC 191739 DILAS-44(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 45mm |
| Model | 191739 DILAS-44(230V50HZ,240V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILAS |
| Power Rating | 1.4W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 415V ac |
| Coil Voltage | 240V ac |
| Normal State Configuration | 4 NO/4 NC |
| Contact Current | 4A |
| Number of Auxiliary Contacts | 8 |
| Auxiliary Contact Configuration | 4 NO/4 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 110V |
| Contactor Application | Safety |
Key Features
- Equipped with top-mounted and non-detachable auxiliary contacts for enhanced safety.
- Integrated mirror contacts and interlocked opposing contacts for reliable operation.
- Yellow cover with built-in inspection window for monitoring operating status.
- Suitable for emergency stop applications with controlled start category 4.
- Reliable screw clamp terminals ensure secure connections.
- Operational temperature range from -25°C to 60°C for versatile use.
- Compliant with CSA, IEC, and UL standards for safety and quality.
- Designed for machine-control circuits requiring safe and self-monitoring operation.
Product Description
Eaton 191739 DILAS-44(230V50HZ,240V60HZ) safety contactor is designed with a 240V AC coil and provides 4 poles suitable for industrial electrical control applications. It supports a contact current of 4 A with a power rating of 1.4 W at 110V control voltage and standard contact voltage at 415V AC.
The contactor comes with a top-mounted auxiliary contact that is non-detachable, ensuring secure and safe operation. The integrated mirror contacts and interlocked opposing contacts enhance safety by preventing manual activation, further verified through a yellow colored cover and a built-in inspection window above the switch-position indicator.
This device is ideal for use in emergency-stop applications with controlled start mechanisms categorized as category 4, providing reliable and self-monitoring machine control circuits in various industrial environments.
Its screw clamp terminal type supports robust and reliable wiring connections. Operating temperatures range from -25°C to 60°C, allowing it to function in a wide variety of industrial and commercial conditions. It meets international standards including CSA, IEC, and UL, ensuring quality and compliance.
Its compact dimensions of 45 mm length, 117 mm width, and 68 mm depth facilitate easy installation on tables or panels. The Eaton DILAS series includes multiple sizes covering power ranges from 7 A to 150 A, with this model fitting the 4 A category.
Top-mounted and non-detachable auxiliary contact enhances safety. Integrated mirror and interlocking opposing contacts prevent unsafe manual activation. Yellow RAL1004 cover and inspection window improve visual status monitoring.
Suitable for category 4 emergency stop applications with controlled start. Reliable screw clamp terminals for secure connections. Compliance with CSA, IEC, and UL standards. Operating temperature between -25°C and 60°C supports diverse environments.
Compact size suitable for panel mounting. Designed for safety and self-monitoring in machine-control circuits.
This Eaton contactor is used widely in industrial automation, manufacturing plants, HVAC controls, and electrical safety systems. For more high-quality industrial automation and control gear, browse the relevant categories at EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 4 A.
This contactor operates with a coil voltage of 240V AC.
The dimensions of this unit are 45 mm in length, 117 mm in width, and 68 mm in depth.
It operates within a temperature range of -25°C to 60°C.
This model features 4 poles.
It uses screw clamp terminals for secure connections.
The contact voltage rating is 415V AC.
It has 8 auxiliary contacts configured as 4 NO and 4 NC.
It complies with CSA, IEC, and UL standards.
The power rating for this model is 1.4 W at a control voltage of 110V.
It is suitable for safety applications, particularly in machine-control circuits requiring self-monitoring operation.
The integrated mirror contacts enhance safety by preventing manual activation.
