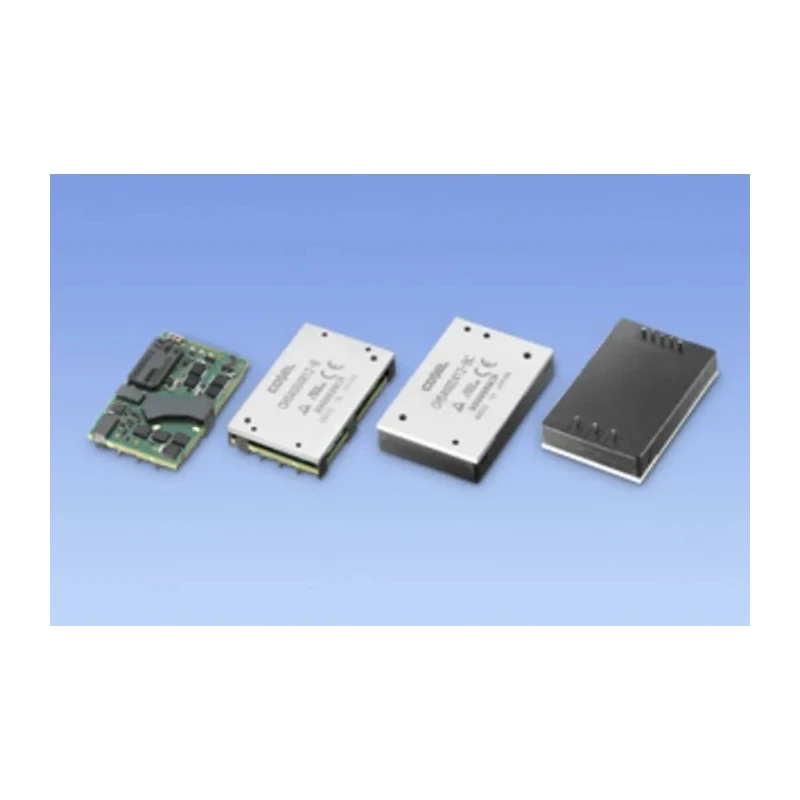

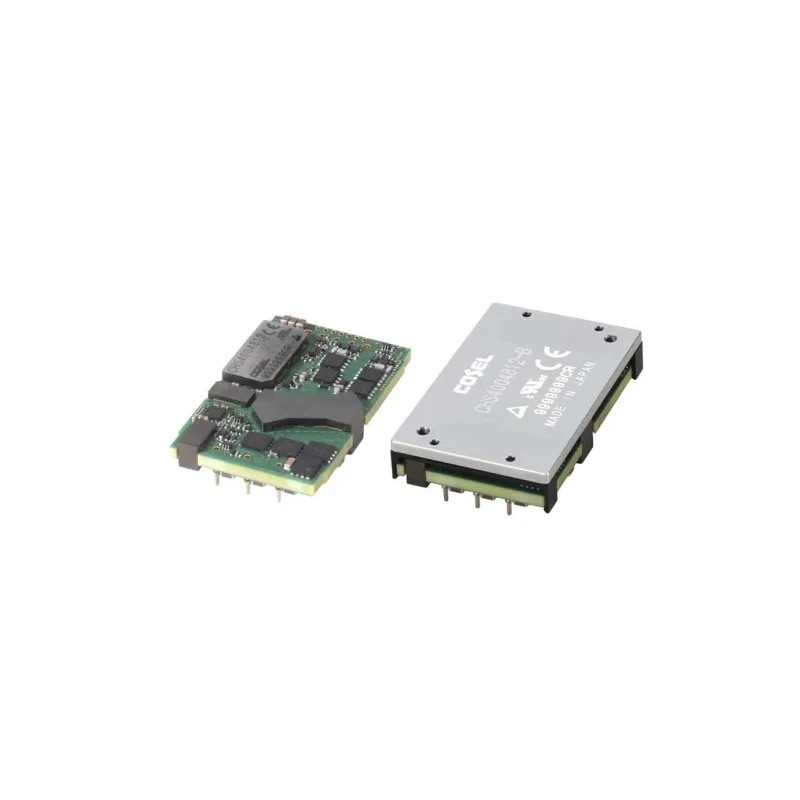

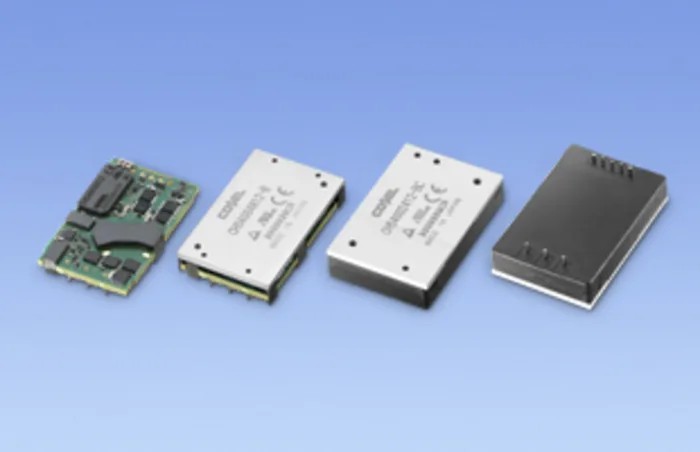

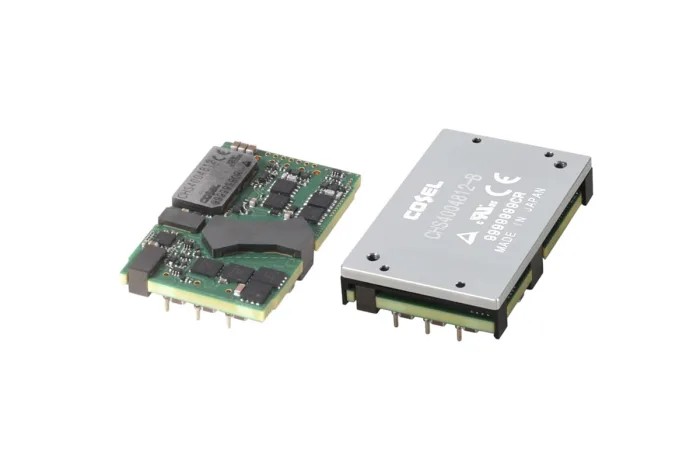

Cosel DC/DC Converter Through Hole 12V DC 26.5A 318W 18V-36V Input DIP Package CHS4002412-B
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel CHS DC/DC Converter, 12V dc/ 26 |
| Brand | Cosel |
| Efficiency | 93.5% |
| Length | 58.9mm |
| Model | CHS4002412-B |
| Depth | 37.3mm |
| Gross Weight | 90g |
| Width | 12.7mm |
| Mount Type | Through Hole |
| Series | CHS |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Number of outputs | 1 |
| Ripple and Noise | 180mV |
| Maximum Output Power | 318W |
| Maximum Input Voltage | 36V dc |
| Maximum Switching Frequency | 150kHz |
| Standards/Approvals | RoHS, cURus, CE |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 26.5A |
| Isolation Voltage | 500V dc |
Key Features
- High efficiency of 93.5% ensures low power loss during operation.
- Supports wide input voltage range from 18V to 36V DC.
- Provides a stable 12V output voltage at 26.5A output current.
- Designed with through-hole DIP package with 8 pins for easy PCB mounting.
- Includes built-in protections for overcurrent, overvoltage, and thermal safety.
- Operates reliably within a temperature range of -85°C to 85°C.
- Isolation voltage rating of 500V DC enhances electrical safety.
- Suitable for industrial power supply and voltage conversion applications.
Product Description
Cosel CHS4002412-B DC/DC Converter is a high-performance through-hole type power module designed for converting DC voltages in industrial, electronic, and manufacturing environments. It outputs 12V DC at a maximum current of 26.5A and delivers up to 318W of power, adapting to input voltages between 18V and 36V DC.
This converter features a DIP package with 8 pins, allowing easy integration onto printed circuit boards. With a compact size of 58.9mm in length, 12.7mm width, and 37.3mm depth, it fits efficiently in dense electronics assemblies.
Its robust design includes built-in protections for overcurrent, overvoltage, and thermal conditions, ensuring reliable and safe operation. The unit meets RoHS, cURus, and CE standards, confirming compliance with environmental and safety regulations.
The high isolation voltage of 500V DC improves operational safety by preventing electrical interference. High efficiency of 93.5% reduces energy waste and heat generation, optimizing system performance.
Operating temperature range from -85°C to 85°C supports a variety of thermal environments encountered in industrial and electronic system applications. This product is made in Japan, known for precision manufacturing quality.
High efficiency of 93.5% ensures low power loss during operation. Wide input voltage range from 18V to 36V DC. Stable 12V output voltage at 26.5A. Through-hole DIP package with 8 pins. Built-in overcurrent, overvoltage, and thermal protection circuits.
Compliance with RoHS, cURus, and CE standards. High isolation voltage of 500V DC. Compact dimensions with 58.9mm length, 12.7mm width, and 37.3mm depth. Operating temperature from -85°C to 85°C.
This DC/DC converter is ideal for power supply, voltage conversion, and industrial electronic applications requiring stable and reliable DC output. Explore more DC/DC Converters and power supply solutions in the EnvMart electronics category to find the best fit for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 26.5A.
It supports a wide input voltage range from 18V to 36V DC.
This unit has an efficiency rating of 93.5%, ensuring low power loss during operation.
The dimensions of this model are 58.9mm in length, 12.7mm in width, and 37.3mm in depth.
It is designed for through-hole mounting with a DIP package containing 8 pins.
The maximum output power is 318W.
It includes built-in protections for overcurrent, overvoltage, and thermal safety.
The isolation voltage rating is 500V DC, enhancing electrical safety.
It operates reliably within a temperature range of -85°C to 85°C.
It complies with RoHS, cURus, and CE standards, confirming its adherence to safety regulations.
The gross weight of this model is 90g.
The ripple and noise specification is 180mV.
