Samtec UMPT Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-03-01.5-G-V-S-W-TR

Free Delivery in India | Lowest Global Shipping Charges

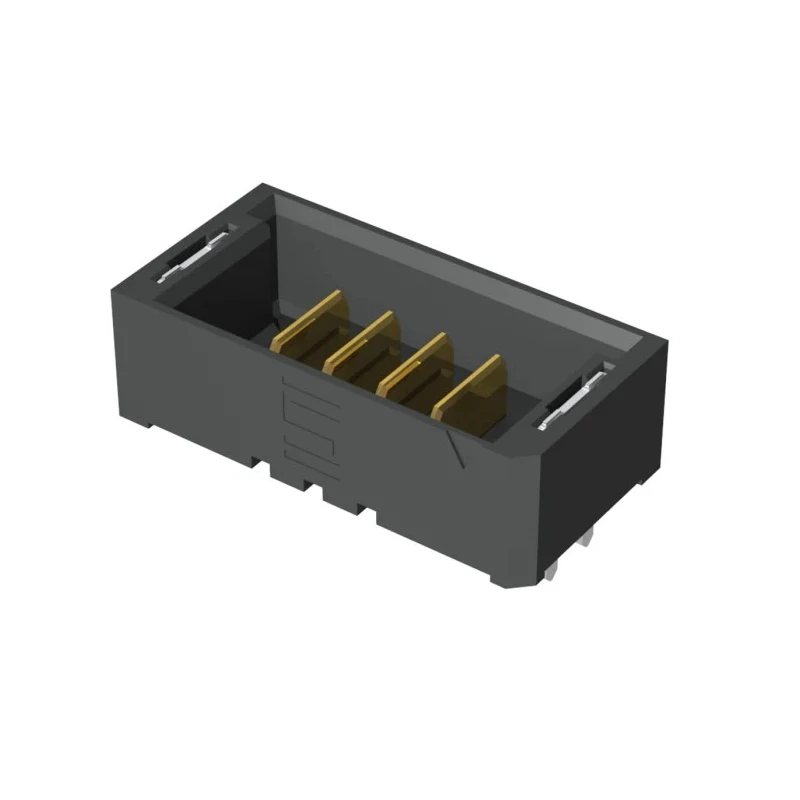

Samtec UMPT Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-03-01.5-G-V-S-W-TR

Name: Samtec UMPT Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-03-01.5-G-V-S-W-TR
Brand: Samtec
SKU: 157736
Price: 6.95 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	650V
Brand	Samtec
Orientation	Straight
Current	15.6A
Model	UMPT-03-01.5-G-V-S-W-TR
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	UMPT
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

High current rating of 15.6 A ensures robust power transmission.
Constructed with liquid crystal polymer housing for durability.
Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Designed as a straight orientation with through-hole mount type for sturdy installation.
Operates reliably within a temperature range of -55°C to 105°C.
Board-to-board connector system suitable for various electronic applications.
Solder termination type allows strong mechanical and electrical connections.
Shrouded configuration protects contacts and improves mating alignment.

Product Description

Samtec UMPT-03-01.5-G-V-S-W-TR is a high-quality PCB header designed for straight through-hole mounting on printed circuit boards. Featuring 4 male contacts arranged in a single row with a 2 mm pitch, this connector ensures precise and secure board-to-board connections essential in electronic assemblies.

The housing is made from liquid crystal polymer, providing excellent mechanical strength and thermal stability for demanding operating environments ranging from -55°C to 105°C. The contacts are copper alloy plated with gold to offer superior electrical conductivity and resistance against corrosion, ensuring long-term performance and reliability.

This shrouded header configuration protects the contacts, improving alignment during mating and reducing the risk of damage. Rated for 15.6 A current capacity and 650 V voltage, it is ideal for power and signal interchange applications in electronic devices.

Mount type is through-hole, which offers robust mechanical fastening for industrial-grade PCB assemblies. The solder termination ensures solid electrical contact and mechanical strength during wave soldering processes.

This connector is compatible with various Samtec high-speed connector systems, supporting flexible design configurations and stack heights ranging from 5 mm to 16 mm. It is widely used in industrial, communications, computing, and consumer electronics fields where durable board interconnections are required.

High current rating of 15.6 A ensures robust power transmission. Durable liquid crystal polymer housing provides excellent mechanical strength. Gold-plated copper alloy contacts for superior conductivity and corrosion resistance.

Straight male contacts with 2 mm pitch in 1 row configuration. Shrouded design protects contacts and aids in alignment. Rated for operation between -55°C and 105°C. Mounts securely by through-hole soldering to PCB. Rated voltage of 650 V suitable for power electronics applications.

Compatible with Samtec high-speed connector systems. Suitable for industrial, communication, and consumer electronic uses. Explore more high-quality PCB Headers and connectors in the Electronics Components category at EnvMart for reliable and efficient electronic designs.
