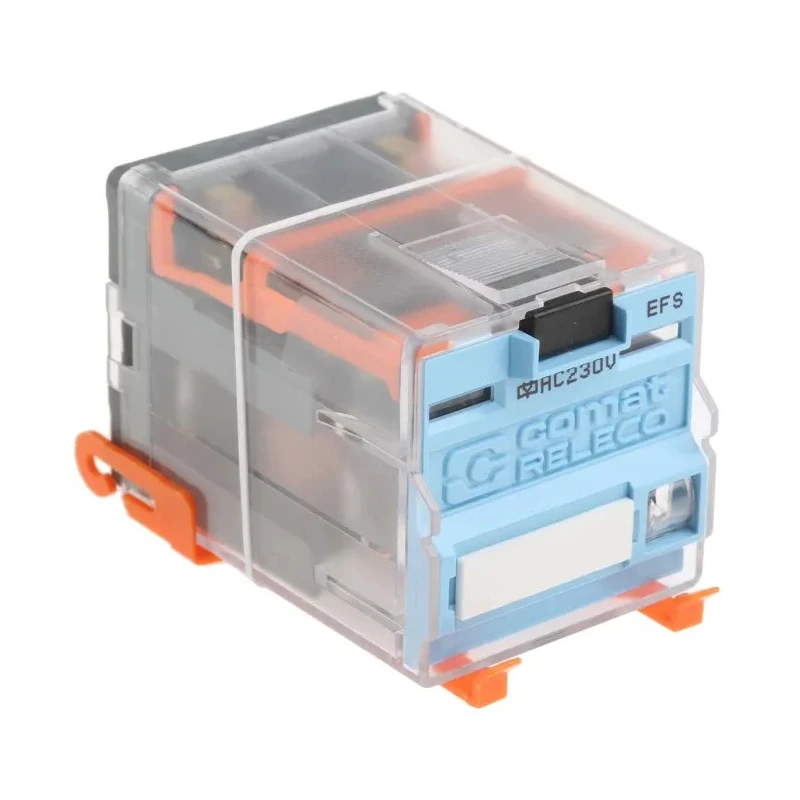

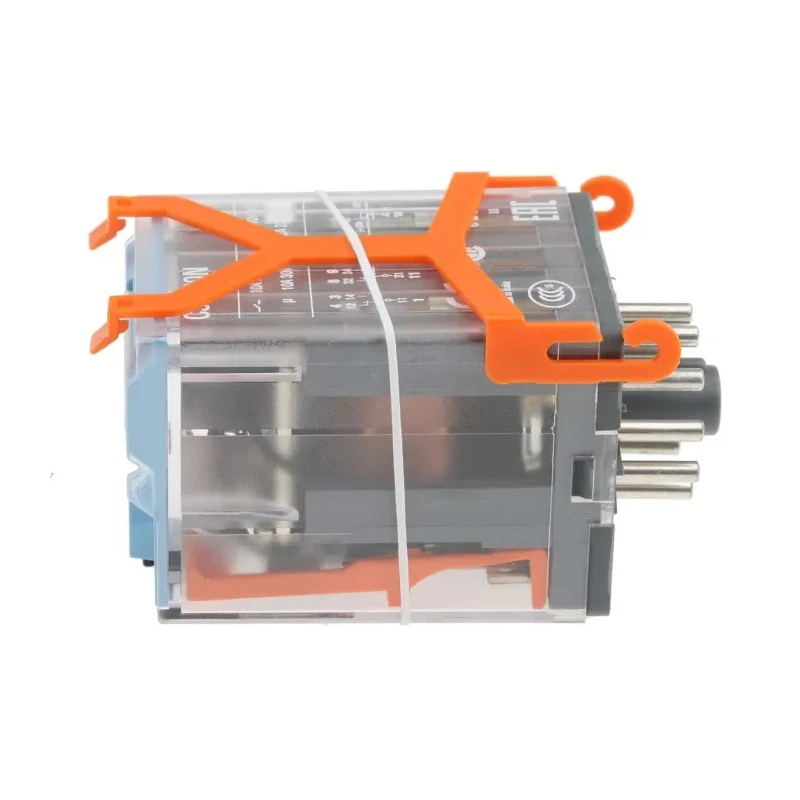

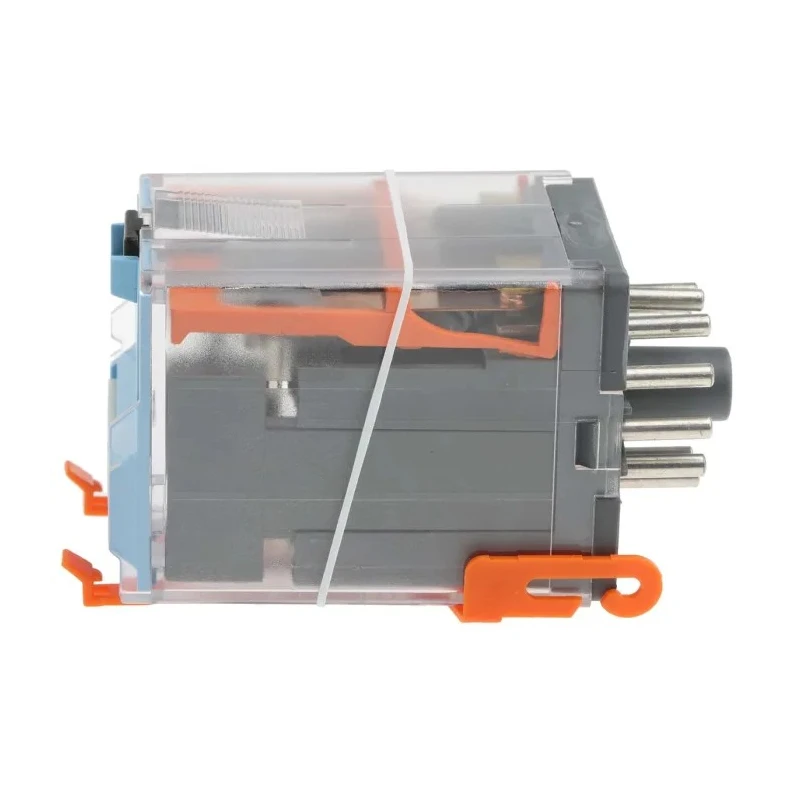

Releco Power Relay 230V AC Coil 10A Switching Current DPDT Through Hole Terminal C3-R20N/AC 230V

Releco C3-R20N/AC 230V power relay is an industrial-grade DPDT relay designed with a 230V AC coil voltage and capable of switching a current of 10A. Its robust silver alloy contacts and 1.5W coil power rating provide long-lasting performance in demanding environments.

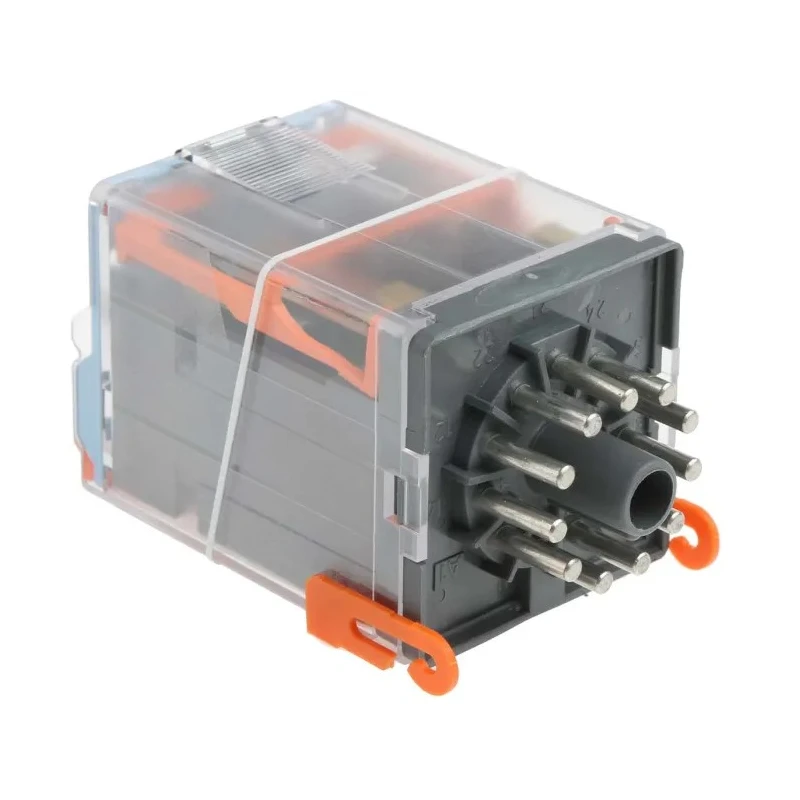

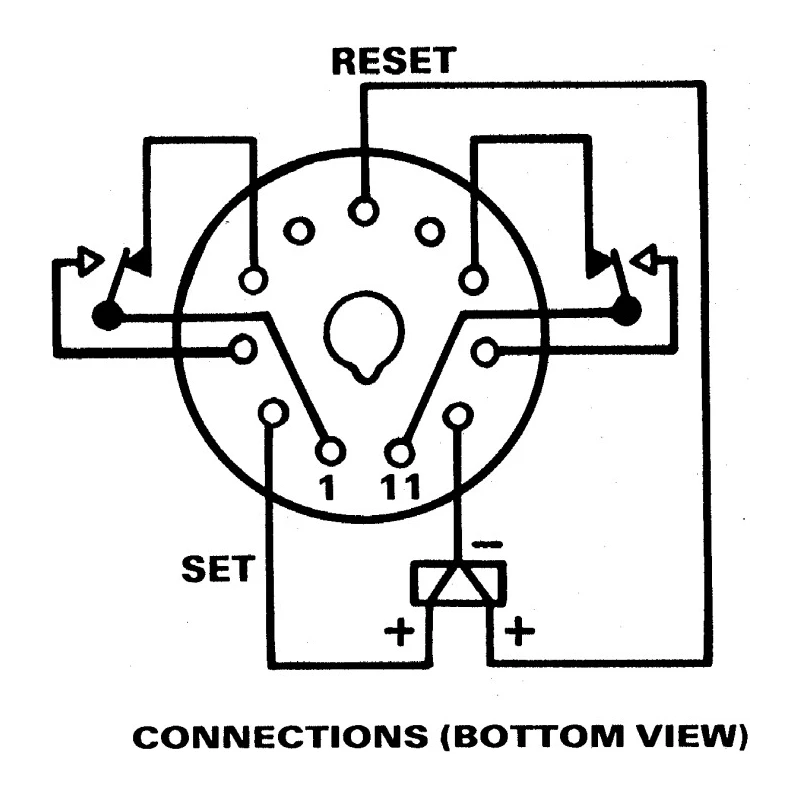

This relay features a through hole terminal type and an 11-terminal multipole connector compliant with IEC 67, suitable for various installation needs. It operates reliably across a wide temperature range from -40°C to 60°C, making it suitable for harsh industrial conditions.

The compact form factor with 35mm length and width, and 66mm height allows easy integration into control systems. Its mechanical flag indicator provides visual status feedback, while the test button supports push-to-test and lift-to-latch functions for maintenance convenience.

Designed as a bi-stable latching relay, the C3-R20N retains its switching state independently of coil power, increasing energy efficiency and reliability. Applications include HVAC systems, pumps, commercial cooking equipment, industrial cleaning, refrigeration, and anti-condensation devices.

Equipped with a 230V AC coil and 1.5W coil power rating. Double Pole Double Throw (DPDT) contact configuration ensures versatile switching. Mechanical flag indicator for visual operation status. Wide operating temperature range: -40°C to 60°C.

Silver alloy contact material for enhanced conductivity and durability. Compact dimensions of 35mm x 35mm x 66mm (LxWxH). Through hole terminal type for secure PCB mounting. Switching power rating of 2.5kVA suitable for industrial loads.

Complies with CSA, EN, IEC, RoHS, and UL standards. Ideal for industrial automation, HVAC, pumps, commercial cooking, and cleaning equipment. Explore high-quality relays like the Releco C3-R20N/AC 230V Power Relay in the EnvMart Electronics & Electricals category to ensure robust and reliable system control solutions.
