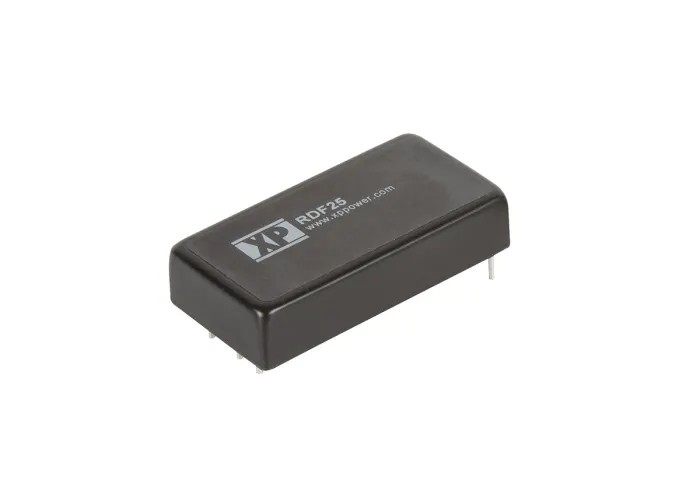

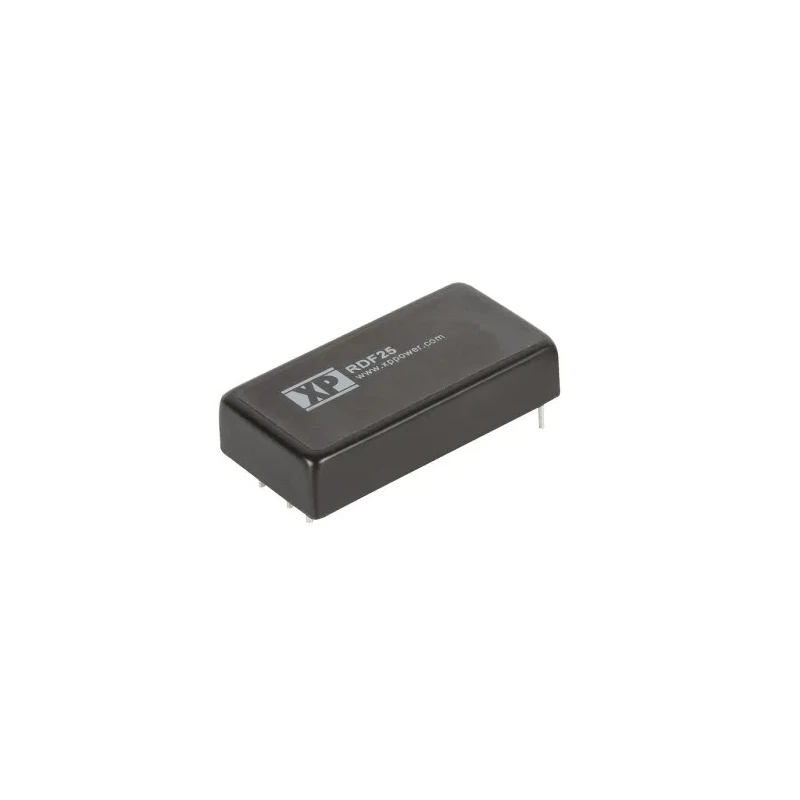

XP Power RDF25 DC/DC Converter 24V DC Output 1.04A 16-160V DC Input 25W Through Hole Mount RDF25
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power RDF25 DC/DC Converter, 24V dc/ 1 |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 50.8mm |
| Model | RDF25 |
| Depth | 11.5mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | RDF25 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 25W |
| Maximum Input Voltage | 160V dc |
| 10 | 1 |
| Minimum Input Voltage | 16V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 1.04A |
| Isolation Voltage | 3kV dc |
| Input Ratio | 10:1 |
| Input Ratio10 | 1 |
| The RDF25 series provides an exceptional 10 | 1 input voltage of 16-160V DC. The product features a robust design and includes a remote on /off function, output voltage trimming, protection against short circuit, undervoltage lockout, overtemperature, overload and overvoltage |
| Wide 10 | 1 Input Range |
Key Features
- Regulated single output ensures stable performance.
- High isolation voltage of 3kV DC for safety and reliability.
- Through hole mounting type suitable for PCB installation.
- Maximum output power of 25W with 85% efficiency.
- Operating temperature range from -40°C to 100°C.
- Output voltage trimming with ±10% adjustment available.
- Short circuit, overload, overvoltage, undervoltage, and overtemperature protections integrated.
- Ideal for industrial, railway, and embedded power supply applications.
Product Description
XP Power RDF25 DC/DC Converter RDF25 series offers a regulated 24V DC output at 1.04A with a wide input voltage range between 16V and 160V DC, making it suitable for diverse industrial and railway power supply applications.
Designed with robust construction, it features through hole mounting for easy PCB integration. The unit provides high 3kV DC isolation voltage ensuring protection and safety in demanding environments.
With a compact size of 50.8mm length, 25.4mm width, and 11.5mm depth, it delivers up to 25W output power efficiently at 85% efficiency, while maintaining stable operation across an operating temperature range from -40°C to 100°C.
This converter incorporates multiple protection mechanisms including short circuit, overload, overvoltage, undervoltage lockout, and overtemperature safeguards. Output voltage trimming ±10% allows fine adjustment of voltage output, and it includes a remote on/off control for convenient power management.
The RDF25 series fully supports industrial and embedded system power management needs, particularly for railway and transportation electronics that require wide input voltage tolerance and operational reliability over varied temperature conditions.
Regulated single output DC/DC conversion. Wide 10:1 input voltage range 16-160V DC. 3kV DC galvanic isolation for safety. High efficiency up to 85%. Robust protections including short circuit and thermal safeguards. Output voltage trim feature ±10% adjustment.
Remote On/Off control. Operating temperature -40°C to +100°C. Compact through hole mounting form factor. Ideal for industrial, embedded, and railway applications.
This product is manufactured in Taiwan, Province Of China, and comes with a 3 year warranty. Explore more DC/DC Converters and power supply solutions at EnvMart for reliable industrial electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RDF25 DC/DC Converter provides a regulated output voltage of 24V DC with a maximum output current of 1.04A.
It has a wide input voltage range of 16V to 160V DC, allowing for versatile applications in various environments.
The maximum output power of the RDF25 is 25W, making it suitable for various industrial applications.
This model operates with an efficiency of up to 85%, ensuring effective power conversion.
The dimensions of this unit are 50.8mm in length, 25.4mm in width, and 11.5mm in depth.
It includes multiple protection mechanisms such as short circuit protection, overload protection, overvoltage and undervoltage lockout, and overtemperature protection.
The isolation voltage for this model is 3kV DC, providing safety and reliability in demanding environments.
This unit features a through hole mounting type, suitable for easy PCB installation.
The RDF25 operates effectively within a temperature range of -40°C to 100°C.
Yes, it provides output voltage trimming with a ±10% adjustment feature for fine-tuning the output voltage.
Yes, it includes a remote on/off control for convenient power management.
This product is manufactured in Taiwan, Province Of China.
