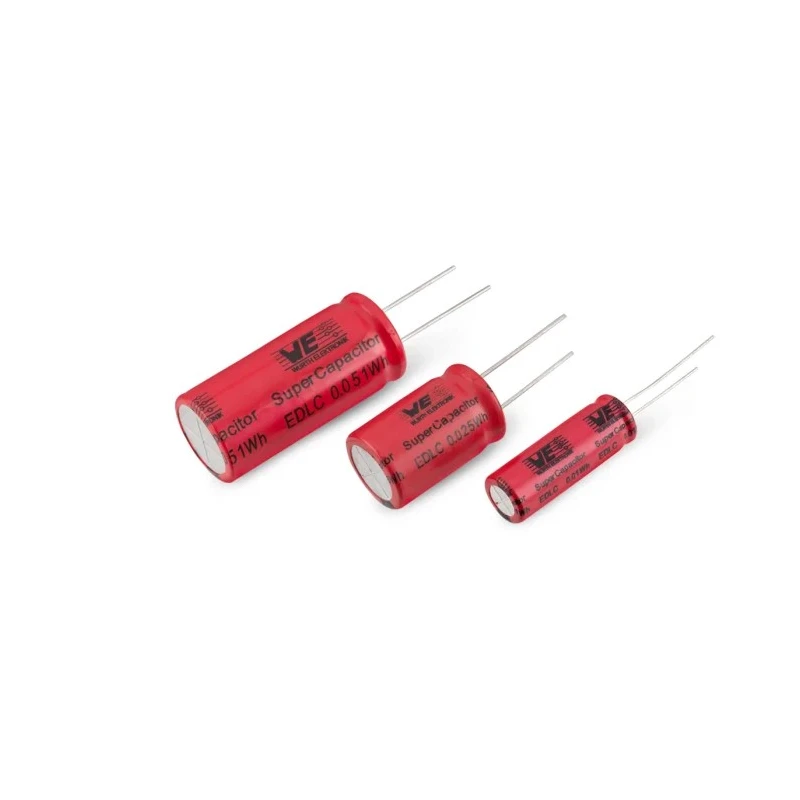

Wurth Elektronik 15F 2.7V DC Polar Through Hole Supercapacitor WCAP-STSC 850617021005
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 2.7V dc |
| Capacitance Range | 3 F - 50 F |
| Diameter | 13mm |
| Brand | Wurth Elektronik |
| Operating Temperature | -40 °C up to +65 °C |
| Height | 25mm |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | WCAP-STSC |
| Maximum Operating Temperature | 65°C |
| Tolerance | -10 to 30 % |
| Lifetime | 1000 h |
| Capacitance | 15F |
| Minimum Operating Temperature | -40°C |
| Polarity | Polar |
| Terminal type | Solder |
| Leakage Current | 60μA |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 2 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.6mm |
| Equivalent Series Resistance ESR | 33mΩ |
| Capacitor Family | Supercapacitor |
| Recommended soldering | Wave |
Key Features
- The supercapacitor features a capacitance of 15 farads with a tolerance range of -10% to 30%.
- It operates at a rated voltage of 2.7 volts DC, suitable for low-voltage circuits.
- Constructed with polar design and 0.6mm lead diameter pins for reliable through-hole mounting.
- Offers an equivalent series resistance (ESR) of 33 milliohms ensuring efficient charge/discharge cycles.
- The device is rated for operation between -40°C and +65°C for versatile environmental usage.
- Its lifetime expectancy is approximately 1000 hours, aligned with industrial endurance requirements.
- Complies with RoHS and REACH standards indicating environmental and safety compliance.
- Recommended wave soldering process ensures durability during PCB assembly.
Product Description
Wurth Elektronik model 850617021005 is a 15 farad, 2.7V DC polar supercapacitor designed for through-hole mounting, offering robust energy storage capabilities in compact form. Packaged in a bag, this supercapacitor presents a diameter of 13mm and a height of 25mm, with lead pitch of 5mm and solder terminals ensuring strong PCB integration. The device features a low leakage current of 60μA and an equivalent series resistance of 33mΩ, facilitating efficient performance in power-critical applications.
Engineered for industrial and commercial usage, it operates reliably within a -40°C to +65°C temperature range and has an expected lifetime of 1000 hours. This component meets RoHS and REACH regulations, aligning with environmental and safety standards required in modern electronics manufacturing.
Recommended for wave soldering, the Wurth Elektronik supercapacitor is widely applicable in applications such as memory backup, smart metering, network equipment, Uninterruptible Power Supply (UPS) systems, power assist, and energy harvesting solutions. Its polar design with 2 pins and 0.6mm lead diameter supports easy installation and replacement.
The 15F capacitance provides substantial charge storage capacity suitable for energy smoothing, peak power support, and backup power applications in electronic and industrial systems. Produced in the Republic of Korea, this high-quality supercapacitor combines longevity and reliability.
The supercapacitor features a capacitance of 15 farads with a tolerance range of -10% to 30%. It operates at a rated voltage of 2.7 volts DC, suitable for low-voltage circuits. Constructed with polar design and 0.6mm lead diameter pins for reliable through-hole mounting.
Offers an equivalent series resistance (ESR) of 33 milliohms ensuring efficient charge/discharge cycles. The device is rated for operation between -40°C and +65°C for versatile environmental usage. Its lifetime expectancy is approximately 1000 hours, aligned with industrial endurance requirements.
Complies with RoHS and REACH standards indicating environmental and safety compliance. Recommended wave soldering process ensures durability during PCB assembly. Applications include smart meters, UPS systems, energy harvesting, and power assist functionalities.
Manufactured in Korea Republic Of, ensuring high-quality production craftsmanship.
This Wurth Elektronik supercapacitor model 850617021005 is a robust electronic component ideal for industrial electronics, power management, telecommunications, and energy storage systems. Explore EnvMart categories for more electronic components and Supercapacitors from trusted manufacturers worldwide.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 15 farads with a tolerance range of -10% to 30%.
It operates at a rated voltage of 2.7 volts DC, making it suitable for low-voltage circuits.
The equivalent series resistance (ESR) is 33 milliohms, which ensures efficient charge and discharge cycles.
This unit is rated for operation between -40°C and +65°C, allowing for versatile environmental usage.
The expected lifetime is approximately 1000 hours, which aligns with industrial endurance requirements.
It has a diameter of 13mm and a height of 25mm, with a lead pitch of 5mm.
This model is designed for through-hole mounting, featuring a polar design with 2 pins.
The leakage current is specified at 60μA, which is beneficial for power-critical applications.
A wave soldering process is recommended to ensure durability during PCB assembly.
It complies with RoHS and REACH standards, indicating environmental and safety compliance.
It is widely applicable in memory backup, smart metering, network equipment, UPS systems, and energy harvesting solutions.
