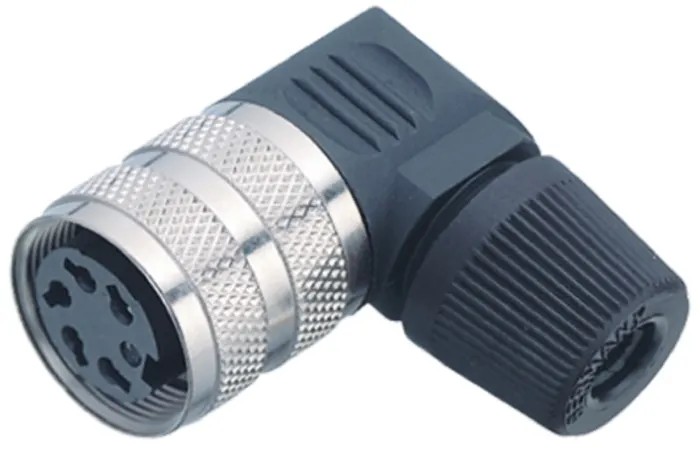

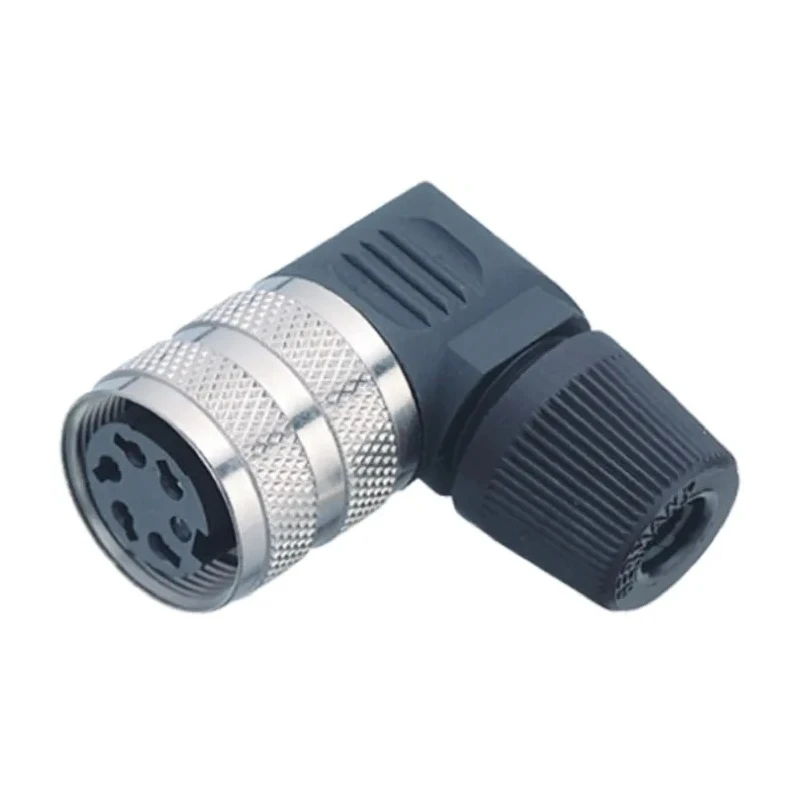

binder Circular Connector Cable Plug Female 8 Contacts M16 Connector IP40 Series 682 09-0154-70-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Right Angle |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Bronze |
| Series | 682 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 8 |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Shell Size | 18 |
| Mating Type | Screw-On |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- The connector is designed with a female contact gender and supports a current rating of 5A.
- It features a screw-on mating type ensuring secure connections in industrial environments.
- The housing is made of durable polymer material suitable for operating temperatures ranging from -40°C to 85°C.
- The connector complies with IEC 60130-9 standards and incorporates silver-plated bronze contacts for reliable conductivity.
- Its right-angle orientation and shell size 18 make it compact and suitable for cable outlet diameters of 4-6 mm.
- This series 682 connector offers an 8-pole format and is made in Germany, assuring high quality and performance.
Product Description
binder 09-0154-70-08 Circular Connector is an industrial-grade cable mount plug connector featuring 8 contacts and an M16 connector size, rated IP40 for protection and suitable for electronic and power connector applications.
Designed with female bronze contacts plated with silver, this connector supports currents up to 5A and voltages up to 60V. Its durable polymer housing ensures mechanical strength and stability over a temperature range of -40°C to 85°C, making it ideal for demanding industrial environments.
The connector utilizes a screw-on mating mechanism according to IEC 60130-9 standard, ensuring secure connection and easy installation. The right-angle orientation and shell size 18 provide compactness and ease of cable management. It accepts cables with outlets between 4-6 mm in diameter.
This binder series 682 connector is manufactured in Germany, conforming to high-quality standards for industrial circular connectors. Its IP40 rating protects against solid objects larger than 1 mm, suitable for controlled industrial indoor environments.
The connector provides secure electrical connections for industrial automation and control systems. Its solder termination type allows reliable contact fixing for cables. The use of polymer and metal components ensures durability and resistance in harsh conditions.
It is ideal for use in electronic components, power connectors, machinery, and automation equipment. Contact plating with silver enhances corrosion resistance and electrical conductivity. This connector is essential for engineers and procurement in manufacturing, industrial automation, and power electronics to ensure reliable and efficient connectivity solutions.
Explore more binder Industrial Circular Connectors and other electronic components at EnvMart to meet your application requirements with confidence and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The binder Circular Connector supports a current rating of 5A.
This connector is rated for a maximum voltage of 60V.
It has an IP40 rating, providing protection against solid objects larger than 1 mm.
The housing is made of durable polymer, and the contacts are bronze plated with silver for enhanced conductivity.
It can operate within a temperature range of -40°C to 85°C.
This model utilizes a solder termination type for reliable contact fixing.
The connector features a right-angle orientation, which aids in cable management.
It has a total of 8 contacts in its design.
The shell size for this connector is 18.
It employs a screw-on mating mechanism, ensuring secure connections.
This connector is classified as an M16 size.
This model is manufactured in Germany, ensuring high quality standards.
