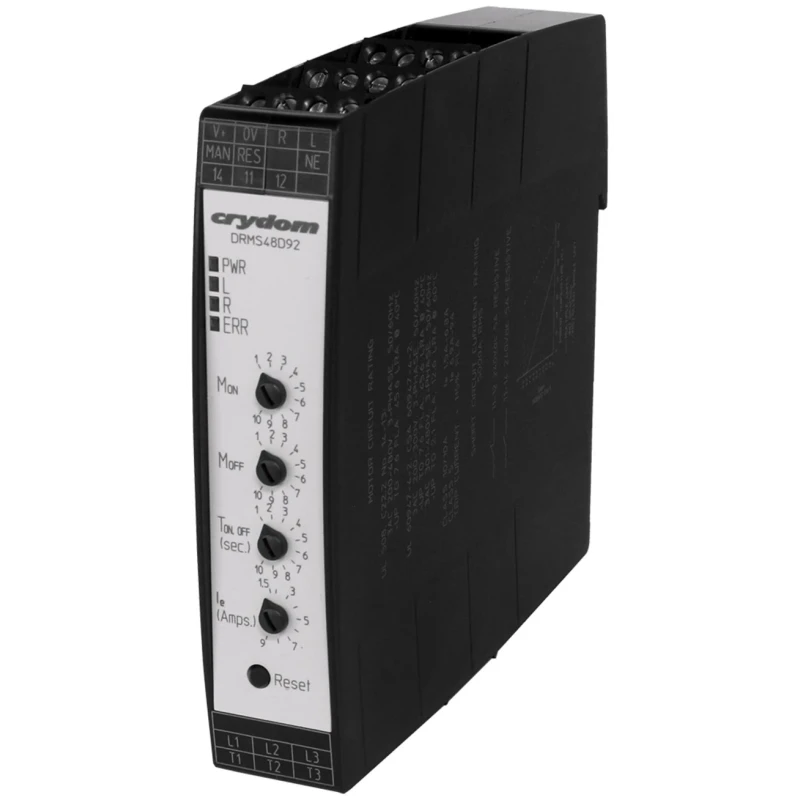

Crydom Star Delta Starter 3 Phase, 300V, 4 kW, 9A, DIN Rail Mount, IP40/IP20 DRMS48D92

Crydom DRMS48D92 Star Delta Starter is a high-quality motor starter designed for industrial and automation applications. It is rated for 3-phase motors with power capacities up to 4 kW and operates at a maximum voltage of 300V with a 9A current rating. The DIN rail mount design and IP40/IP20 protection ratings ensure suitability for a wide range of environments requiring robust motor control solutions.

This starter integrates a hybrid relay technology that combines the reliability of electromechanical relays with the longevity of semiconductor components, providing enhanced durability and operational performance. The unit allows precise control with four configurable dials to adjust starting torque, deceleration torque, soft start/stop functionality, and rated motor current.

The front-panel reset button, complemented by an external reset connection, facilitates simple manual intervention if needed, while the relay indicator and four LEDs provide clear operational feedback for maintenance and monitoring. Galvanic separation of the 24 VDC inputs ensures safe and effective forward/reverse motor control.

Certified under UL, CSA, and CE standards, this starter meets stringent safety and performance criteria. Its typical industrial applications include reversing operations for door and gate systems, bridge drives, lifting applications, and conveyor systems, all benefiting from blockage monitoring to prevent motor damage.

High reliability with hybrid relay combining electromechanical and semiconductor technology. Supports 3-phase motors reversing up to 4 kW output. Includes up to 4 dials for setting starting torque, deceleration torque, soft start/stop, and motor current.

Equipped with 4 LEDs for clear status indication. Galvanic separated 24 VDC inputs for forward and reverse motor control. Reset button on the front panel with external reset connection. Relay indicator output signals operational status.

Approved with UL, CSA, and CE standards for safety compliance. Suitable for reversing operations in industrial door/gate controls, conveyor systems, and process actuating drives with blockage monitoring.

This star delta starter is part of the DRMS series by Crydom, built to provide efficient motor control for diverse industrial sectors including manufacturing, HVAC, automation systems, and process controls.
