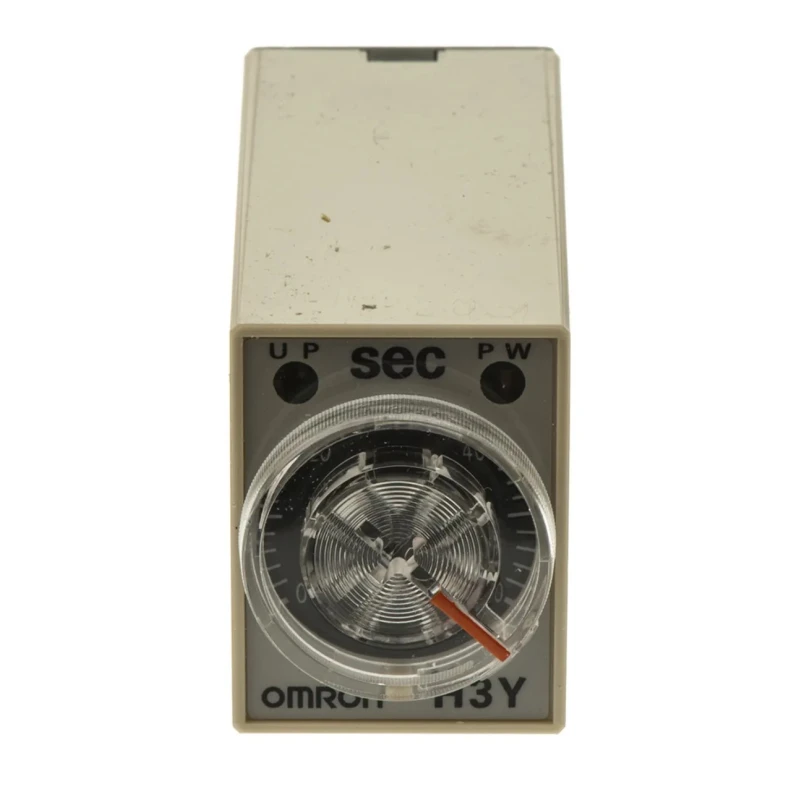

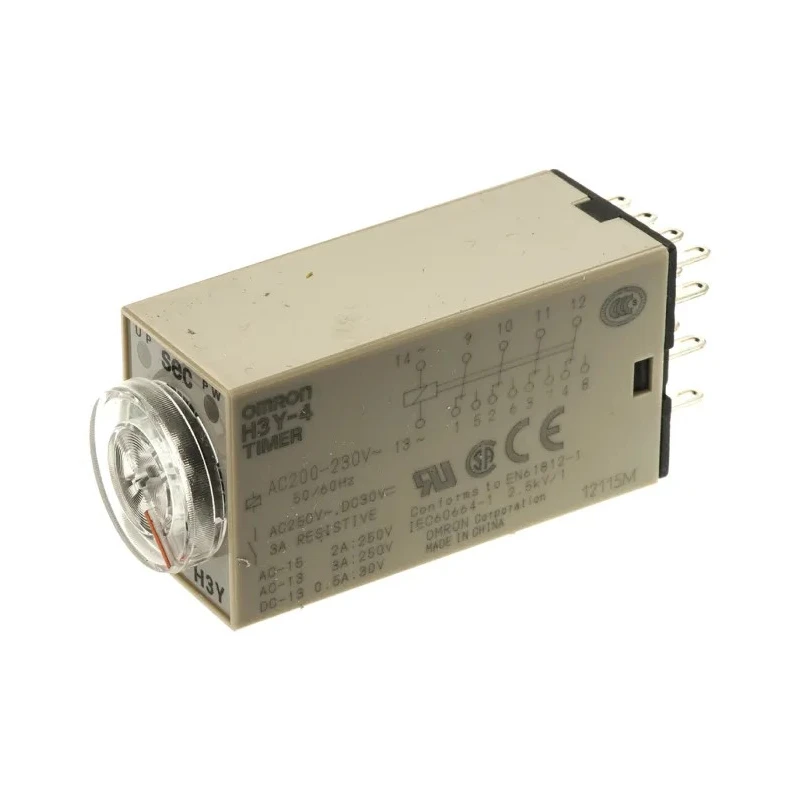

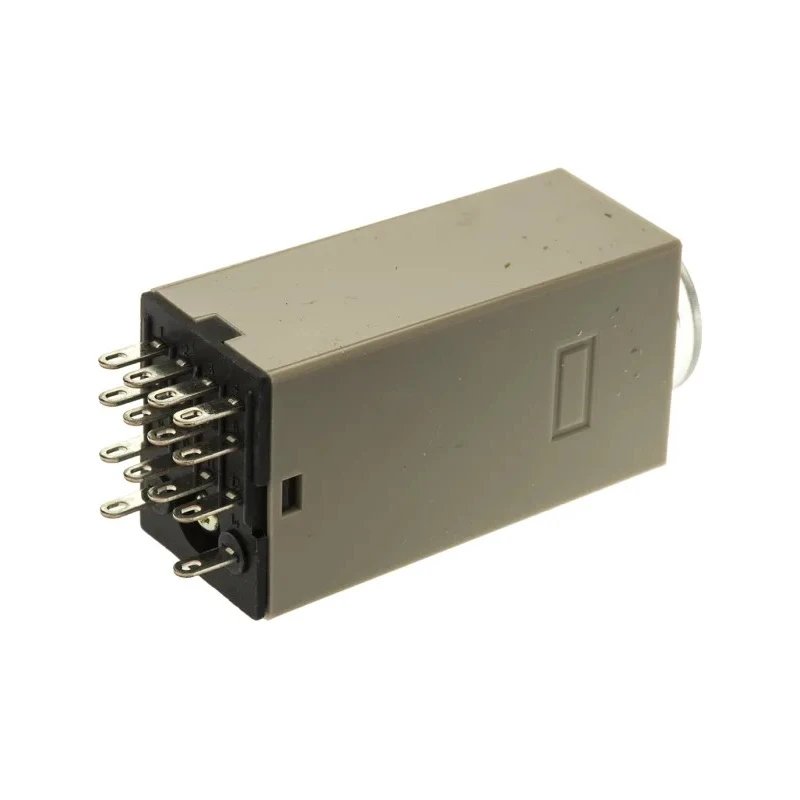

Omron Timer Relay, DIN Rail Surface Mount, 4-Contact 4PDT, ON Delay, 24 V DC 200-230 V AC, 2 to 60 s H3Y-4 AC200-230 60S

Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin India
Brand Omron
Height 63mm
Length 28mm
Model H3Y-4 AC200-230 60S
IP Rating IP40
Mode ON Delay
Width 21.5mm
Mount Type DIN Rail, Surface Mount
Series H3Y
Maximum Operating Temperature 50°C
Contact Configuration 4PDT
Minimum Operating Temperature -10°C
Time Range 2 to 60 s
Terminal type Plug-In
Standards/Approvals UL (File No. E41515), EN50082-2, EN50081-2, CSA (File No. LR22310)
Number of Contacts 4
Number of Timer Functions 1
Switching Voltage 250V ac
Contact Current 5A
Supply DC Voltage 24 V dc
Supply AC Voltage 200, 230V ac
4PDT on delay timer,1-60sec 240VacBrand NEUTRAL

Key Features

  • Compact plug-in design allows easy installation and maintenance.
  • Operates with 24 V DC or 200-230 V AC supply voltages.
  • Features a 4-contact 4PDT configuration for versatile switching.
  • Time delay range adjustable from 2 to 60 seconds.
  • LED indicators provide clear status of power and output operation.
  • IP40 rated for protection against solid objects over 1 mm.
  • Suitable for industrial automation, electrical distribution, and control systems.
  • Operational temperature range from -10°C to 50°C for reliable performance.

Product Description

Omron H3Y-4 AC200-230 60S Timer Relay is a high-quality DIN rail and surface mount timer relay with a 4-contact 4PDT configuration, providing precise ON Delay operation for time-sensitive applications. Designed to work with both 24 V DC and 200-230 V AC supply voltages, it offers a reliable time range adjustment from 2 to 60 seconds, suitable for various industrial automation and control system needs.

The compact and plug-in design simplifies installation and replacement, reducing downtime in industrial and manufacturing environments. LED indicators clearly display power status and output operation, enhancing usability and troubleshooting.

This timer relay is rated IP40, protecting internal components from solid objects larger than 1 mm, making it suitable for typical factory or electrical panel environments. It operates reliably within a temperature range from -10°C to 50°C, ensuring stable performance under different ambient conditions.

Designed in compliance with international safety standards including UL (File No. E41515), CSA (File No. LR22310), and EMC standards EN50082-2 and EN50081-2, the H3Y-4 AC200-230 60S provides assured safety and electromagnetic compatibility within industrial applications.

Common applications include timed controls in automation systems, synchronizing machine operations, delayed switching in electrical distribution panels, and integration with power relays for enhanced control functionalities. Its versatile mounting options allow effortless integration into DIN rail assemblies or direct surface mounting.

Compact plug-in design facilitates installation and maintenance. Operates with 24 V DC or 200-230 V AC supply voltages. 4-contact 4PDT configuration enables complex switching tasks. Time delay adjustable from 2 to 60 seconds for flexible control.

LED indicators provide clear visibility of power and output status. IP40 protection rating suitable for industrial environments. Wide operating temperature range from -10°C to 50°C. Certified for safety and electromagnetic compatibility.

Supports automation, manufacturing, and electrical distribution applications. Explore more Omron Timer Relays and related electrical components at EnvMart to empower your industrial automation projects with reliable and high-performance solutions.

Omron Timer Relay, DIN Rail Surface Mount, 4-Contact 4PDT, ON Delay, 24 V DC 200-230 V AC, 2 to 60 s H3Y-4 AC200-230 60S
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The time delay range for this model is adjustable from 2 to 60 seconds.

It operates with both 24 V DC and 200-230 V AC supply voltages.

This unit features a 4-contact 4PDT configuration, allowing for versatile switching tasks.

The timer relay is rated IP40, which protects it against solid objects larger than 1 mm.

The dimensions of the H3Y-4 are 63 mm in height, 28 mm in length, and 21.5 mm in width.

It operates reliably within a temperature range from -10°C to 50°C.

This timer relay can be mounted on DIN rail or directly on surfaces.

It is certified for safety and electromagnetic compatibility, complying with UL, CSA, and EMC standards EN50082-2 and EN50081-2.

The maximum contact current for this model is 5A.

It is suitable for industrial automation, electrical distribution, and control systems, including timed controls and delayed switching.

The timer relay features a plug-in terminal type for easy connection.

This timer relay has one timer function.
