TE Connectivity HDSCS Automotive Connector Female Black Plug-in 8 Way Crimp Termination 1-1564512-1

Free Delivery in India | Lowest Global Shipping Charges

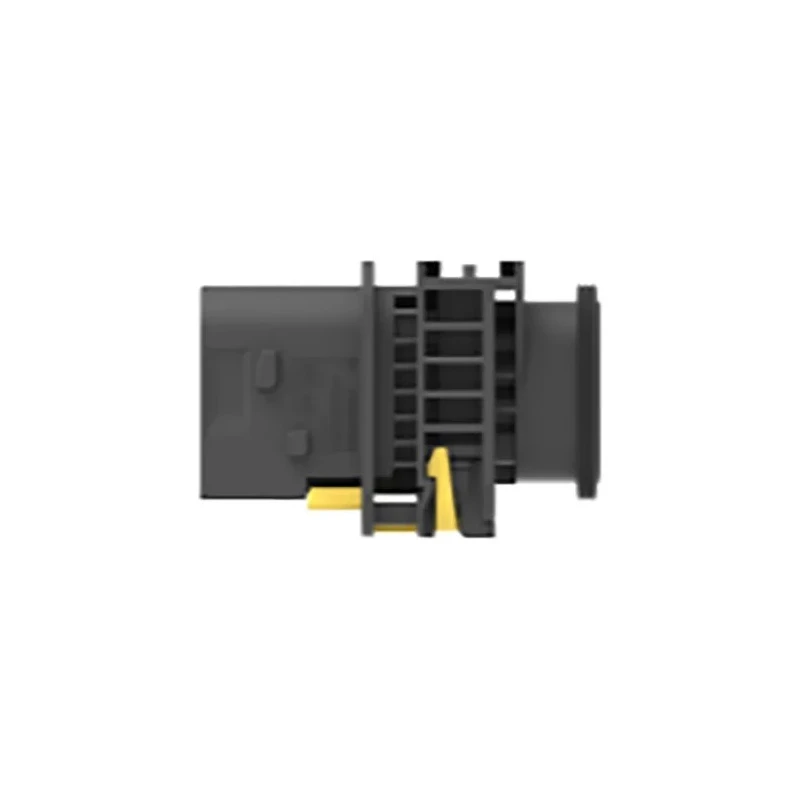

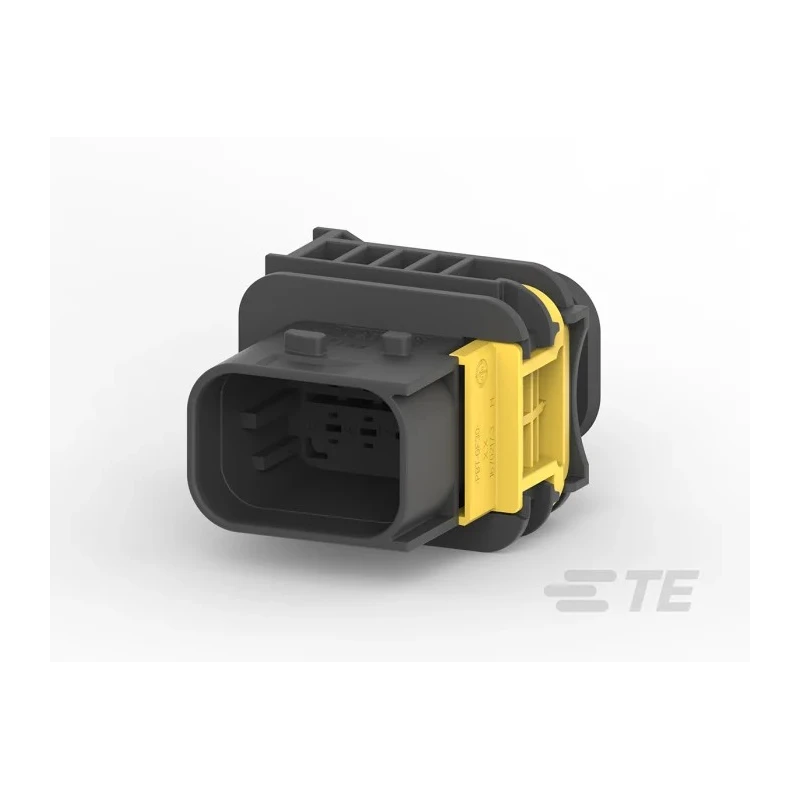

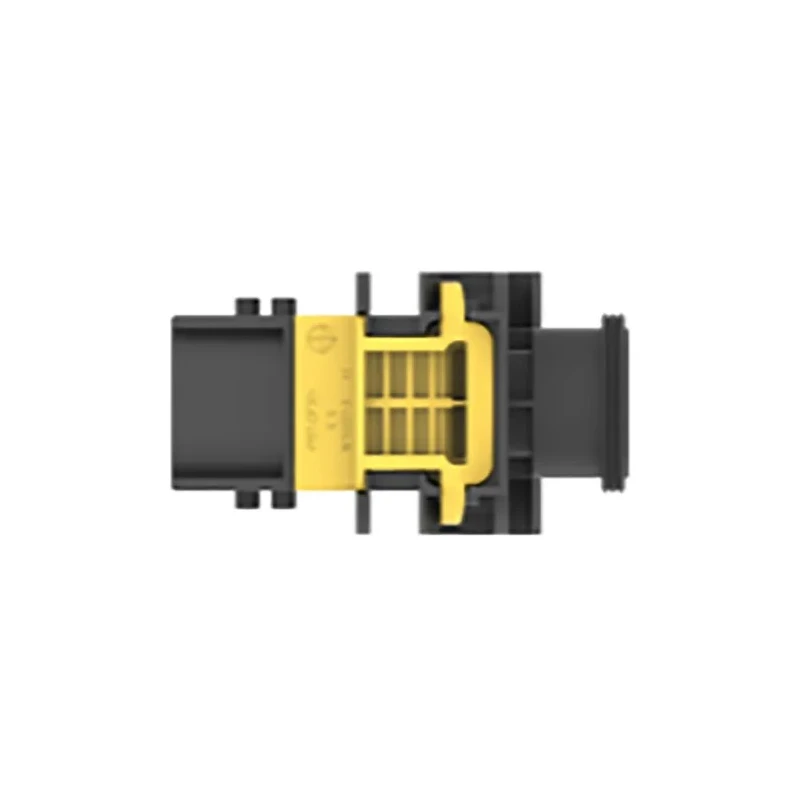

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 8 Way Crimp Termination 1-1564512-1

Name: TE Connectivity HDSCS Automotive Connector Female Black Plug-in 8 Way Crimp Termination 1-1564512-1
Brand: TE Connectivity
SKU: 156331
Price: 2.59 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	20A
Height	27mm
Depth	47.1mm
IP Rating	IP6K9K, IP67
Width	32.6mm
Gender	Female
Mount Type	Plug-in
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Series	HDSCS
Termination Type	Crimp
Maximum Operating Temperature	140°C
Sub Type	Tab Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU ELV, EU RoHS
Contact Plating	Tin
Number of Contacts	8

Key Features

Designed for automotive applications with 8 contacts.
Features a plug-in mount type with two rows of terminals.
Terminated by crimp method for secure connections.
Rated for 20 amperes current carrying capacity.
Constructed with fibreglass reinforced polybutylene terephthalate housing.
Contact plating is tin for corrosion resistance.
Sealed with IP6K9K and IP67 ratings for environmental protection.
Operates in temperature range from -40°C to 140°C.

Product Description

TE Connectivity 1-1564512-1 HDSCS Automotive Connector Female is a robust, environmentally sealed connector designed for demanding automotive electrical applications. It features an 8-way tab housing with plug-in mount type and crimp termination ensuring secure and durable connections.

The connector's housing is made from fibreglass reinforced polybutylene terephthalate providing high mechanical strength and resistance to harsh conditions. The tin plating on the contacts ensures reliable conductivity and corrosion resistance, supporting a maximum current of 20A.

Rated to IP6K9K and IP67 standards, this connector offers superior protection against ingress of dust and water, making it suitable for use in automotive and industrial environments. Operating temperature ranges from -40°C up to 140°C allow it to perform reliably under extreme temperature conditions.

This 1-1564512-1 connector is part of the HDSCS series known for heavy-duty performance, with two rows of contacts arranged in a compact design measuring 27mm in height, 47.1mm in depth, and 32.6mm in width. Its black color and design supports cable to cable and cable to device connections with a slide lock mechanism for secure mating.

Designed for 8 contact automotive electrical applications. Durable fibreglass reinforced polybutylene terephthalate housing. Tin-plated contacts for corrosion resistance and conductivity. IP6K9K and IP67 ratings for high ingress protection.

Wide operating temperature range from -40°C to 140°C. Complies with EU ELV and RoHS environmental directives. Plug-in mount type with crimp termination method. Heavy-duty HDSCS series connector suitable for harsh automotive environments.

Compact black tab housing with slide lock mechanism. Ideal for industrial, automotive, and manufacturing electrical systems. Explore more Automotive Connectors from TE Connectivity within EnvMart to fulfill all your professional electronics component needs.
