RS PRO 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1561
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 60V |
| Brand | RS PRO |
| Orientation | Vertical |
| Current | 3A |
| Frame Type | Closed Frame |
| Model | 183-1561 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper Alloy, Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.54mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 16 |
| Pin Type | Turned |
Key Features
- Features 16 way contacts with a 2.54 mm pitch for DIP package compatibility.
- Constructed with a closed frame to prevent solder wicking and flux intrusion.
- Current rating of 3A and voltage rating of 60V for reliable operation.
- Gold plated inner contacts with tin plating on the outer sleeve for durability and conductivity.
- Thermoplastic housing supports high temperature operations up to 105°C.
- Vertical orientation allows easy insertion and withdrawal of ICs.
- Machine pin socket designed for production line compatibility and repeated use.
- Made with beryllium copper alloy and brass contact materials for excellent conductivity.
Product Description

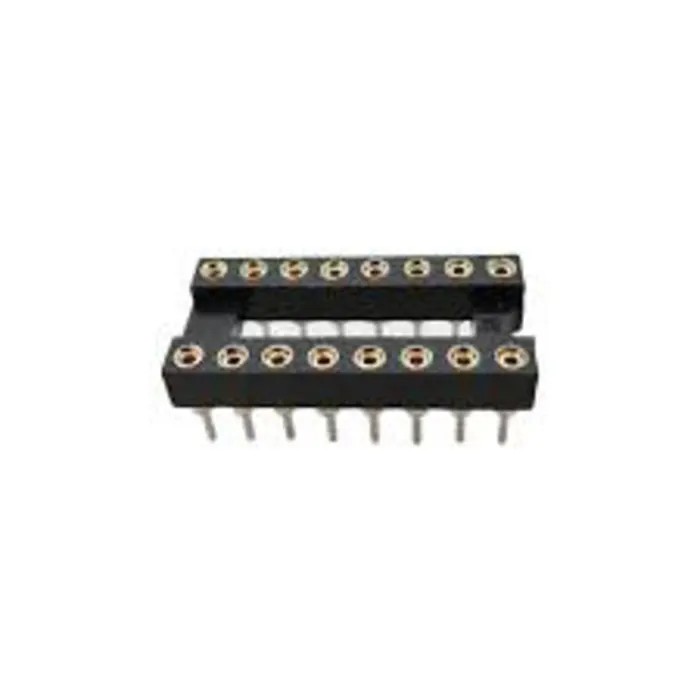

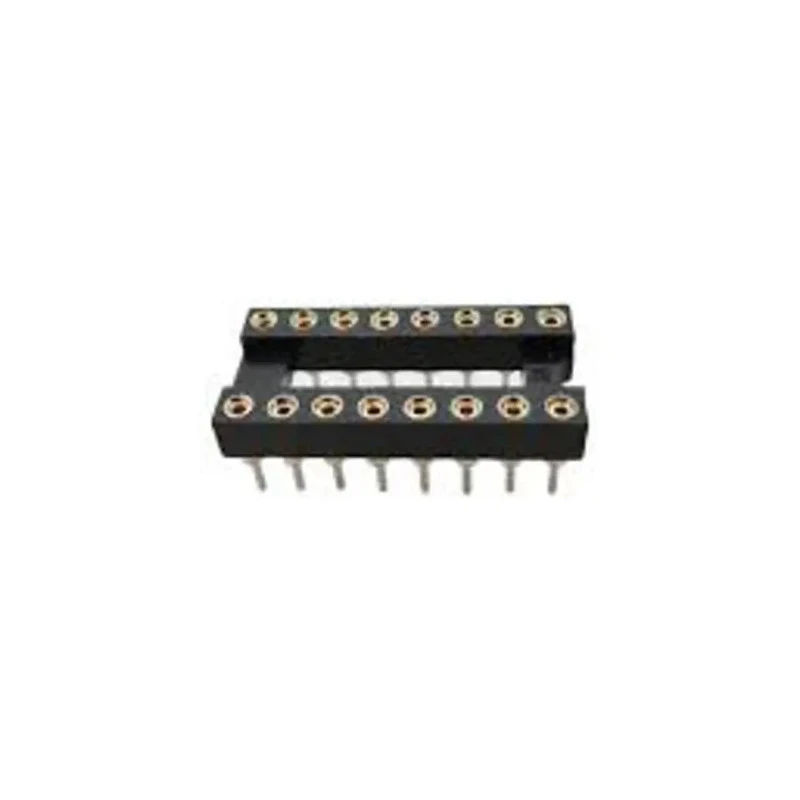

RS PRO 183-1561 is a 16 way vertical DIL (Dual Inline) socket with a 2.54 mm pitch designed for through hole mounting. This closed frame socket features turned pins and is constructed to offer precise and reliable connections for electronic components and ICs in various industrial applications.
The socket incorporates solid precision turned sleeves with a closed bottom design which effectively prevents solder wicking and flux intrusion during soldering, enhancing reliability on circuit boards. The internal stamped spring copper insert ensures excellent electrical contact and durability for repeated insertions and withdrawals of integrated circuits.
The contacts are plated with gold on the inner parts for superior conductivity, while the outer sleeves are tin plated to resist corrosion. The housing material is high temperature thermoplastic (UL94V-0 rated), enabling operation at temperatures up to 105°C, making it suitable for environments that require high temperature soldering processes.
This DIL socket supports a current rating of 3A and voltage rating of 60V. It is vertical in orientation, arranged in dual rows to accommodate DIP packages with 16 pins spaced at a 2.54 mm pitch. The machine pin feature allows compatibility with automated production line assembly, improving manufacturing efficiency.
16 way through hole design with 2.54 mm pitch. Closed frame construction for anti-solder wicking. Gold and tin plating on contacts for durability and conductivity. Beryllium copper alloy and brass contact materials. Thermoplastic housing rated for high temperature use.
Vertical orientation suitable for DIP ICs. Current rating 3A, Voltage rating 60V.
This DIL socket is ideal for use in electronic manufacturing, laboratory instrumentation, industrial equipment, and other applications requiring reliable IC socket connections. RS PRO products are rigorously tested to meet industry standards ensuring quality and performance.
Explore more RS PRO electronic components and DIL Sockets at EnvMart for your industrial and electronics project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This DIL socket has a current rating of 3A and a voltage rating of 60V.
The contacts in this model are spaced at a pitch of 2.54 mm.
It features a closed frame construction, which helps prevent solder wicking and flux intrusion during soldering.
The contacts are made from a combination of beryllium copper alloy and brass, providing excellent conductivity.
The maximum operating temperature for this socket is 105°C.
This socket is designed with a vertical orientation, making it suitable for easy insertion and withdrawal of ICs.
It utilizes a through hole mounting type for installation on circuit boards.
This model has 16 contacts arranged in dual rows for DIP packages.
This socket uses solder termination for secure connections.
The minimum operating temperature for this DIL socket is -40°C.
The contacts are plated with gold on the inner parts and tin on the outer sleeves for durability and conductivity.
Yes, the machine pin feature of this socket allows compatibility with automated production line assembly, enhancing manufacturing efficiency.
