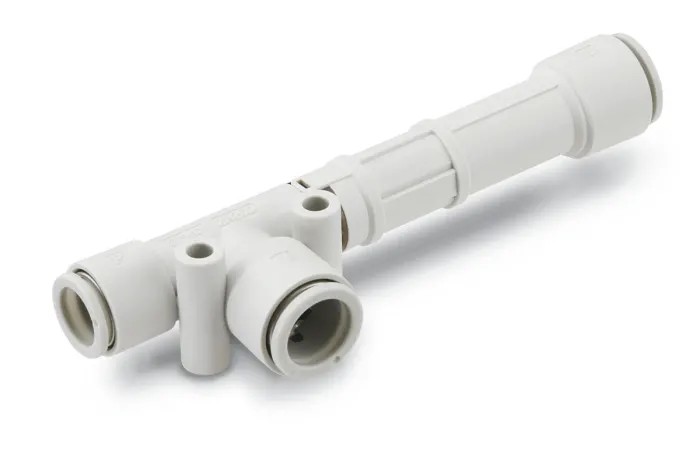

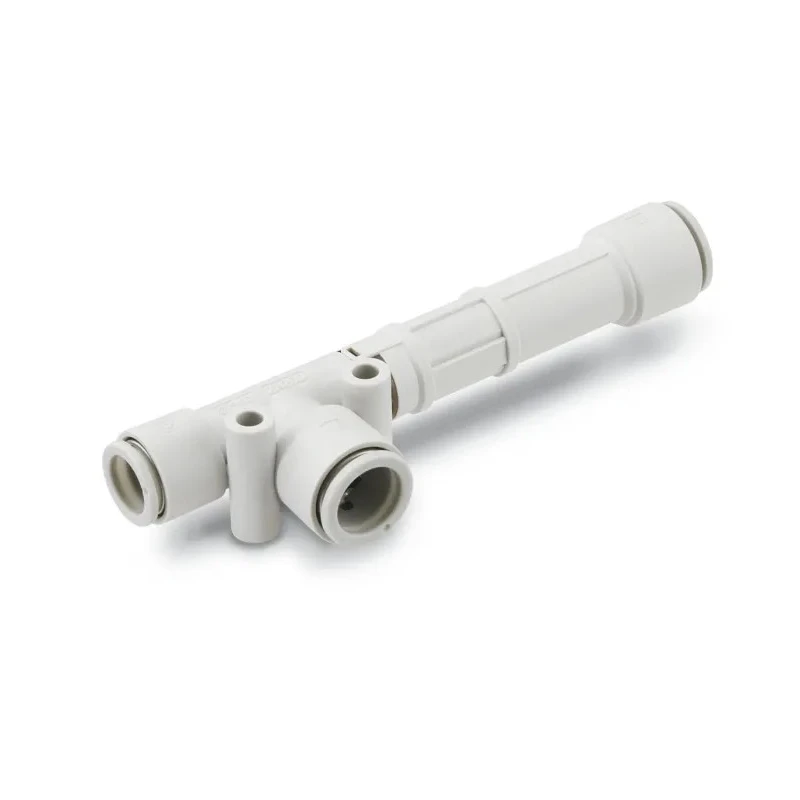

SMC Compact Pneumatic Vacuum Generator with 1mm Nozzle Diameter, -48 kPa Vacuum, 52 l/min Flow Rate ZH10DLA-06-06-08S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZH10DLA-06-06-08S |
| Standards/Approvals | Conform to the European RoHS Directive |
| SMC Vacuum Ejector, 10mm nozzle , -48kPa 34L/min, ZH seriesBrand | SMC |
Key Features
- This compact vacuum generator utilizes compressed air for automation and handling applications.
- Features a flow rate of 52 l/min (ANR), suitable for small assembly throughput.
- Includes one-touch Ø6/Ø8 fittings for supply, vacuum, and exhaust connections to simplify installation.
- Supports nylon and polyurethane tubing for flexible pneumatic circuit routing.
- Designed for industrial temperature range operation from -5 °C to 50 °C.
- Supplied with a mounting bracket and silencer to facilitate installation and reduce noise.
- Ideal for pick-and-place of light components, end-of-arm robotic tooling, and vacuum clamping in small fixture stations.
Product Description
SMC ZH10DLA-06-06-08S Vacuum Generator is a compact pneumatic device designed to generate vacuum using compressed air, featuring a 1mm nozzle diameter and delivering a maximum vacuum of -48 kPa with a flow rate of 52 l/min (ANR). Its advanced design supports automation and handling tasks, particularly where small bore tubing and rapid connection fittings are required.
Equipped with body‑ported configuration and one‑touch Ø6/Ø8 connections for supply, vacuum, and exhaust, this vacuum generator ensures quick and leak-free installation. It is compatible with nylon, soft nylon, and polyurethane tubing, offering flexible pneumatic routing options suitable for various industrial environments.
The unit operates effectively within typical industrial temperature ranges from -5 °C up to 50 °C, making it suitable for most manufacturing and automation settings. To aid installation and noise control, it comes supplied with a mounting bracket and a silencer, enabling quieter operation and handy mounting in machine systems.
Application areas include pick-and-place of light components in assembly lines, integration with robotic end-of-arm tooling for electronics board handling, pneumatic grippers, and vacuum clamping in small fixture stations. This vacuum generator supports moderate-hold tasks with consistent vacuum extraction performance and adequate flow throughput.
This Vacuum Generator uses pneumatic compressed air as the power medium for vacuum generation. It features a nozzle size of 1.0 mm enabling effective vacuum extraction performance. With a maximum vacuum level of -48 kPa, it supports moderate strength vacuum needs.
The flow rate of 52 l/min (ANR) allows efficient handling in small assembly lines and automation setups. One-touch connection ports of Ø6 and Ø8 mm reduce installation time and prevent leakages. Compatible with nylon and polyurethane tubing, it offers flexibility in pneumatic circuit routing.
Operating temperature range from -5 °C to 50 °C ensures suitability for most industrial conditions. The unit comes with a mounting bracket and silencer to facilitate easier installation and quieter operation. Applications include pick-and-place of components, vacuum clamping, and use with pneumatic grippers on robotic handlers.
Explore the full range of pneumatic vacuum components at EnvMart for industrial automation and fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model generates a maximum vacuum of -48 kPa, suitable for moderate strength vacuum needs.
It has a flow rate of 52 l/min (ANR), allowing efficient handling in small assembly lines and automation setups.
The nozzle diameter of this unit is 1mm, which enables effective vacuum extraction performance.
It is compatible with nylon, soft nylon, and polyurethane tubing, providing flexible pneumatic routing options.
The unit operates effectively within an industrial temperature range from -5 °C to 50 °C.
It is supplied with a mounting bracket and a silencer to facilitate installation and reduce noise during operation.
This vacuum generator features one-touch Ø6/Ø8 fittings for supply, vacuum, and exhaust connections, ensuring quick and leak-free installation.
It is ideal for pick-and-place of light components, end-of-arm robotic tooling, and vacuum clamping in small fixture stations.
It conforms to the European RoHS Directive, ensuring compliance with environmental regulations.
This model features a body-ported configuration, which aids in efficient vacuum generation and installation.
It uses pneumatic compressed air as the power medium for vacuum generation.
Yes, it is designed for typical industrial environments, operating within a temperature range of -5 °C to 50 °C.
