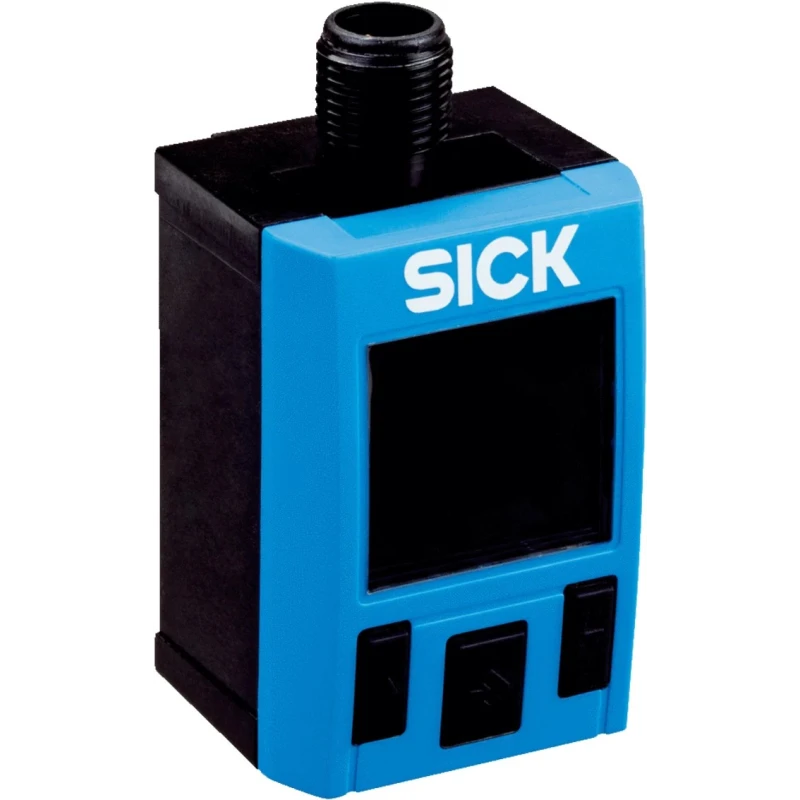

SICK Pressure Switch 0 bar to 10 bar, 30V DC, 40mA, DIN Rail Mount PAC50-DGB PAC50-DGB / 1062984
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 10 bar |
| Current | 40mA |
| Height | 63mm |
| Model | PAC50-DGB / 1062984 |
| Depth | 35mm |
| IP Rating | IP65, IP67 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50-DGB |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Gauge Pressure |
| Switch output | PNP, NPN, 0 to 10 V, Push Pull + 4 mA to 20 mA |
| Port Size | 1/4 in |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 0-10V, 4-20 mA |
| Connection Thread Standard | G |
| Minimum Operating Pressure | 0bar |
| Suitable Medias | Gas, Air |
| Standards/ApprovalsEN 61326-2-3, EMC Directive | 2004/108/EC |
Key Features
- Measures gauge pressure with operating range from 0 to 10 bar.
- Supports PNP, NPN, 0 to 10 V, Push Pull, and 4-20 mA switch outputs.
- Operates at 30 V DC with 40 mA current consumption.
- Features IP65 and IP67-rated rugged enclosure for industrial environments.
- Equipped with a large bi-color display for clear system pressure and output status indication.
- Includes three large function keys allowing for intuitive menu navigation.
- Suitable for gas and air media applications.
- Offers optional analog output and I/O-Link compatibility for ease of integration.
Product Description
SICK PAC50-DGB is a precision pressure switch designed for gauge pressure measurement ranging from 0 bar to 10 bar. It operates at 30 V DC with a current draw of 40 mA, making it suitable for industrial pneumatic and vacuum applications involving gases and air.
The device features a robust IP65 and IP67-rated enclosure, enabling reliable performance in harsh environments including dust and water exposure. Installation is convenient with options for DIN rail, wall mount, or switch panel placements.
A large bi-color display provides clear visibility of system pressure, output states, and switching points. User interaction is made simple with three large function keys facilitating intuitive menu navigation for quick configuration and commissioning.
The PAC50 series supports multiple output types including PNP, NPN, 0 to 10 V, Push Pull, and 4-20 mA analog outputs, allowing easy integration with various control systems. Optional IO-Link communication drastically reduces downtime by allowing fast sensor parameter transfer during format changes or sensor replacements.
This pressure switch offers flexibility with pressure connections located at the back and bottom, complemented by configurable output signals to support diverse installation requirements. It is ideal for compressed-air monitoring, pneumatic pressure measurement, vacuum system monitoring, and leakage detection in closed compressed air systems, commonly found in industrial, manufacturing, robotics, and HVAC applications.
Measures gauge pressure up to 10 bar with high reliability and rugged construction. Multiple switch outputs and analog outputs provide versatile signal interfacing. IP65 and IP67 enclosure ratings protect against dust and water ingress.
Large bi-color display aids quick system status assessment from a distance. Intuitive operation and easy commissioning reduce setup time and complexity. Flexible mounting options including DIN rail, wall mount, and switch panel.
Optional IO-Link for fast sensor configuration and replacement. Suitable for gas and air media in industrial pneumatic and vacuum systems.
Choose the SICK PAC50-DGB pressure switch for precise and reliable pressure monitoring in demanding industrial environments. Explore more pneumatic and hydraulic tools and Pressure Switches at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It supports PNP, NPN, 0 to 10 V, Push Pull, and 4-20 mA switch outputs.
This pressure switch operates at 30 V DC with a current consumption of 40 mA.
The operating temperature range is from 0°C to a maximum of 60°C.
It has an IP65 and IP67 rating, providing protection against dust and water ingress.
The dimensions are 63 mm in height, 35 mm in width, and 35 mm in depth.
It can be mounted on a DIN rail, wall mount, or switch panel.
It is suitable for gas and air media applications.
The connection thread standard is G, with a port size of 1/4 inch.
It complies with EN 61326-2-3 and the EMC Directive 2004/108/EC.
Yes, it offers optional analog output and I/O-Link compatibility for ease of integration.
