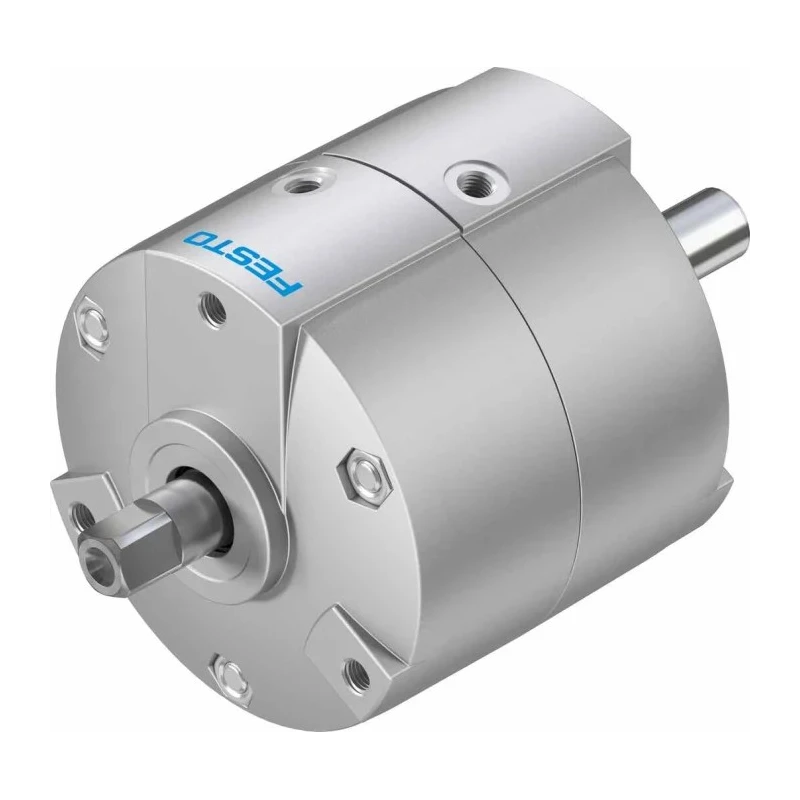

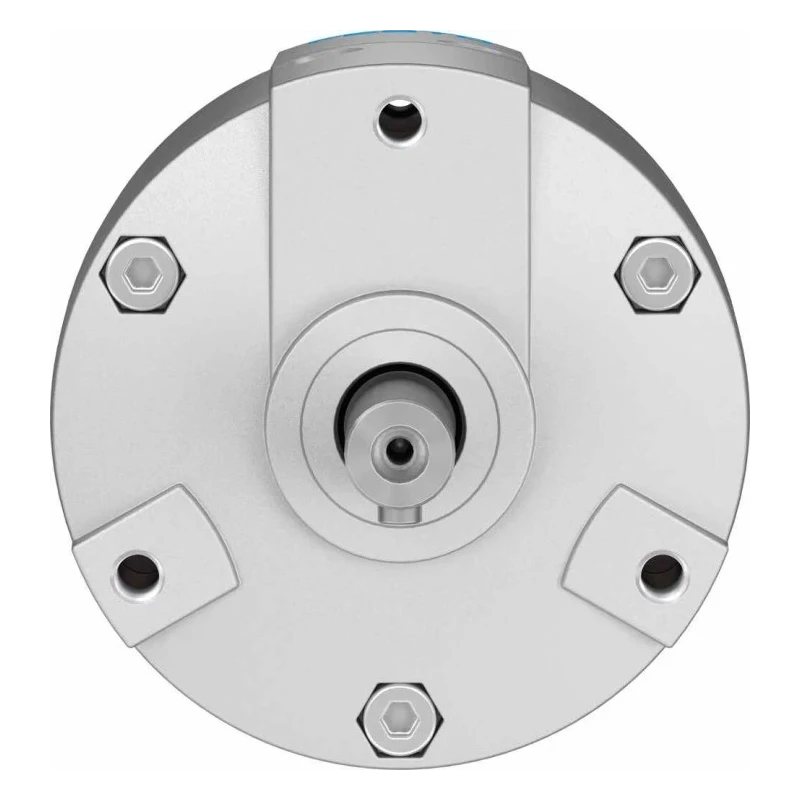

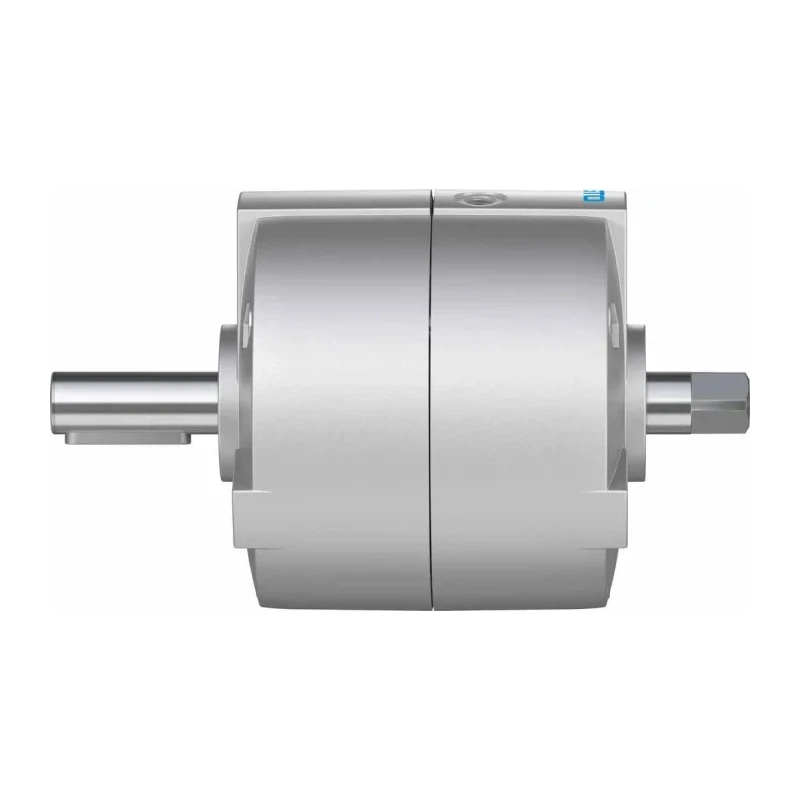

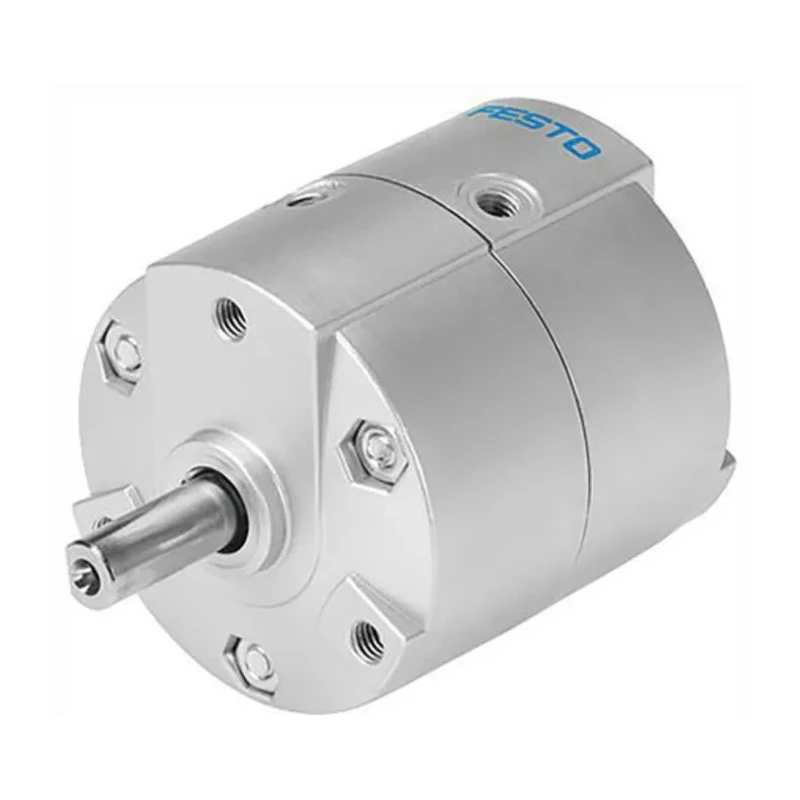

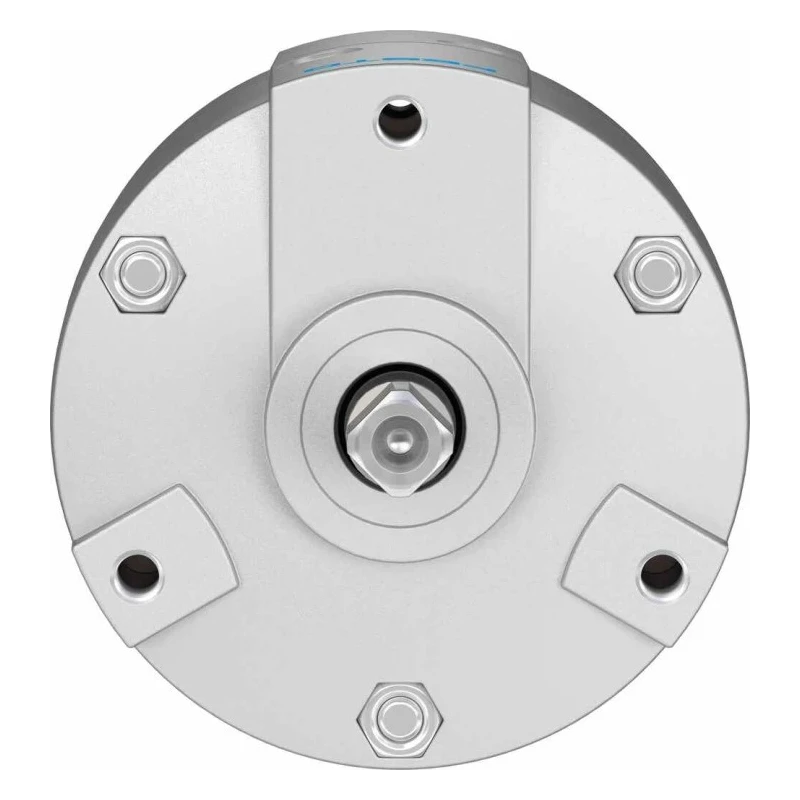

Festo Pneumatic Rotary Actuator Double Acting 25mm Bore 90° Rotation 8 bar Pressure DRVS-25-90-P

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Rotary Actuator Double Acting 25mm Bore 90° Rotation 8 bar Pressure DRVS-25-90-P

Name: Festo Pneumatic Rotary Actuator Double Acting 25mm Bore 90° Rotation 8 bar Pressure DRVS-25-90-P
Brand: FESTO
SKU: 145426
Price: 221.22 USD
Availability: InStock



Category Pneumatic Rotary Actuator Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Maximum Operating Pressure	8 bar
Height	65.7mm
Length	110.2mm
Model	DRVS-25-90-P
Gross Weight	502g
Series	DRVS
Maximum Operating Temperature	60°C
Minimum Operating Temperature	0°C
Shaft Diameter	10mm
Bore Diameter	25mm
Action Type	Double Acting
Standards/Approvals	RoHS
Better World Claim	Repairable by the End User
Cushioning Type	Elastic
Port Gender	Female
Port Thread Size	M5
Maximum Radial Force	40N
Maximum Torque Rating	2Nm
Angle of Rotation	90°

Key Features

Compact and lightweight aluminium die-cast housing suitable for harsh environments.
Double acting rotary actuator ideal for ball and plug valve automation.
Maximum operating pressure of 8 bar with elastic cushioning for impact force minimization.
Non-contacting end positions ensure reduced wear and long service life.
Operating temperature range from 0°C to 60°C for versatile use.
M5 port thread size compatible with standard pneumatic fittings.
Maximum torque rating of 2 Nm with a shaft diameter of 10 mm.
Fixed 90° swivel angle adjustable with accessories for precise positioning.

Product Description

Festo DRVS-25-90-P Pneumatic Rotary Actuator is a precision-engineered double acting actuator with a 25mm bore and 90° angle of rotation, designed to automate ball valves and plug valves efficiently. Its compact aluminium die-cast housing ensures durability and protection against splashes, water, and dust, making it fit for demanding industrial environments.

The actuator operates reliably between 0°C to 60°C and can handle maximum pressures up to 8 bar. Its elastic cushioning technology reduces impact forces at lower speeds, protecting the mechanism and extending lifespan. The unit features fixed swivel angles with the flexibility of adjustment via appropriate accessories, and end positions can be locked with a simple button click for stable operation.

Equipped with a 10mm shaft and M5 port threading, it provides easy connection compatibility in pneumatic systems. The actuator's lightweight design and a mass moment of inertia of 0.012 kg·m² allow for quick response during operation. Non-contacting end position sensing reduces wear and maintenance needs, ideal for automation tasks requiring consistent performance.

This model complies with RoHS standards and supports repairability by the end user, aligning with sustainable manufacturing practices. It is widely applicable across industrial automation, fluid power systems, manufacturing, and HVAC sectors where reliable rotary actuation is critical.

Compact aluminium die-cast housing delivers robust protection against environmental factors. Double acting mechanism suitable for high torque and speed applications. Elastic cushioning enhances durability by minimizing impact shocks.

Non-contact end position sensors provide longer service life and reduced wear. Simple installation with single connecting cable for quick setup. Operating pressure range of 2 to 8 bar offers versatile system integration.

M5 female port threads compatible with standard pneumatic fittings. Fixed 90° rotation angle adjustable with accessories for customization. RoHS compliant ensuring environmental safety standards. Designed for repairability, supporting sustainable maintenance practices.
