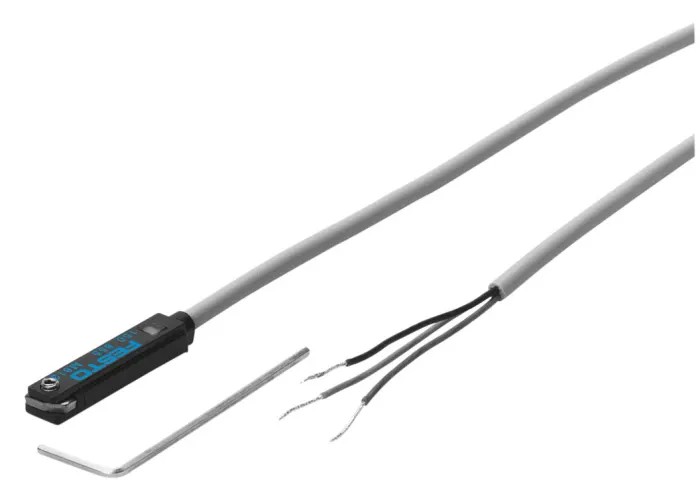

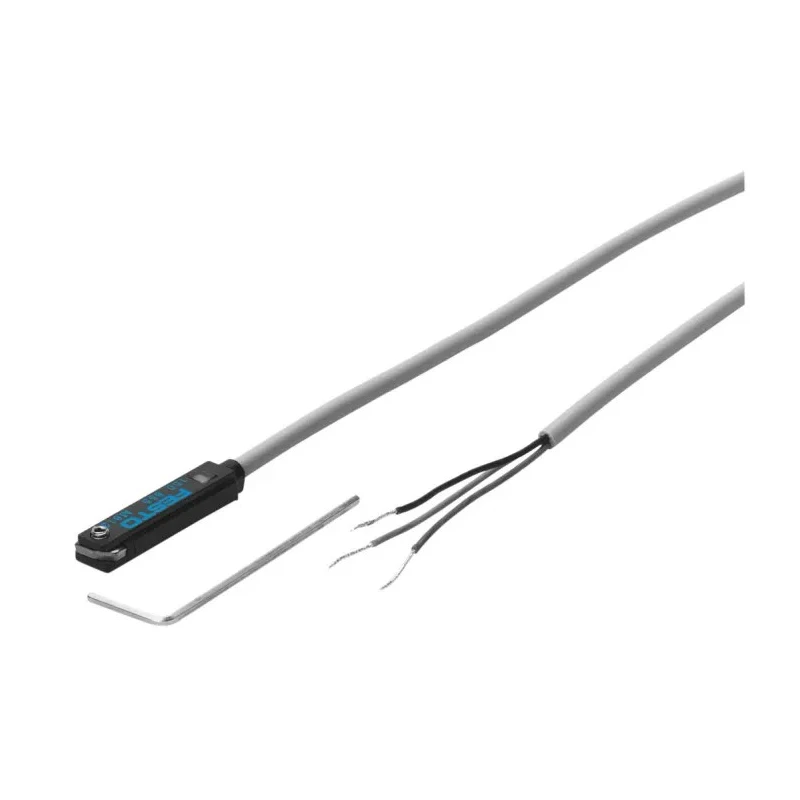

Festo Cable Pneumatic Position Detector Bipolar Output LED Indicator IP67 IP65 30 V AC/DC SME-8-K-LED-24
Specifications
| Country of Origin | Turkey |
|---|---|
| Voltage | 30, 30V ac |
| Brand | Festo |
| Model | SME-8-K-LED-24 |
| IP Rating | IP67, IP65 |
| Housing Material | Polyethylene Terephthalate, High Alloy Steel, Polycarbonate, Non-Corrosive, Epoxy Resin |
| Series | SME-8 |
| Maximum Operating Temperature | 60°C |
| Measurement Principle | Proximity Sensor |
| Minimum Operating Temperature | -40°C |
| For Use With | T-Slot |
| Output Function | Contact, Bipolar |
| Standards/Approvals | EN 60947-5-2, Conforms to RoHS, RCM, to EU EMC, CE |
| Electrical Connection Type | Cable |
Key Features
- Features a polyethylene terephthalate housing for chemical resistance and mechanical durability.
- Provides visual status confirmation via integrated LED indicator.
- Suitable for T-slot mounting and low-voltage (30 V AC/DC) control applications.
- Operates reliably in ambient temperatures ranging from -40°C to 60°C.
- Offers contact switching with bipolar output compatible with industrial automation systems.
- Meets international standards including EN 60947-5-2 and conforms to RoHS, RCM, and EU EMC directives.
- Designed for harsh environments with IP67 and IP65 ingress protection ratings.
Product Description
Festo SME-8-K-LED-24 is a cable Pneumatic Position Detector, designed for monitoring the piston position of pneumatic cylinders using a magnetic reed sensing principle. It features a bipolar output function with contact type switching, allowing detection of both polarities for enhanced control logic flexibility in automated systems.
The device housing is constructed from polyethylene terephthalate along with high-alloy steel, polycarbonate, and epoxy resin materials, providing resistance against chemicals and mechanical wear. The detector is built to withstand demanding industrial and commercial environments, supported by ingress protection ratings of IP67 and IP65, making it suitable for dusty and wet conditions including splashing and temporary immersion.
Operating at 30 V AC/DC voltage and compatible with T-slot mounting, the SME-8-K-LED-24 includes an integrated LED indicator that provides immediate visual feedback on switch status, facilitating onsite status verification in pneumatic actuator systems.
The sensor’s operational temperature range of -40°C to 60°C ensures reliable performance across broad thermal conditions. It meets globally recognized standards including EN 60947-5-2 and complies with RoHS, RCM, and EU EMC directives, confirming its suitability for modern automated and industrial control applications.
Polyethylene terephthalate housing ensures chemical resistance and durability. Bipolar contact output supports detection of both magnetic polarities. LED indicator offers clear, immediate visual status feedback. Ingress protection rated at IP67 and IP65 for harsh environment tolerance.
Wide operating temperature range from -40°C to 60°C. Complies with EN 60947-5-2, RoHS, RCM, and EU EMC standards. Designed for T-slot mounting on pneumatic cylinders.
This position detector is ideal for use in industrial automation equipment, pneumatic actuators, manufacturing processes, and electrical control panels requiring reliable piston position sensing with low voltage compatibility and visual status confirmation.
Explore our comprehensive portfolio for additional Festo pneumatic sensors and related industrial automation components to optimize your process controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 30 V AC/DC voltage.
The device has IP67 and IP65 ingress protection ratings, making it suitable for dusty and wet conditions, including splashing and temporary immersion.
It operates reliably in ambient temperatures ranging from -40°C to 60°C.
It features a bipolar output function with contact type switching, allowing detection of both polarities.
The SME-8-K-LED-24 is designed for T-slot mounting on pneumatic cylinders.
The housing is constructed from polyethylene terephthalate, high-alloy steel, polycarbonate, and epoxy resin, providing chemical resistance and mechanical durability.
It meets international standards including EN 60947-5-2 and conforms to RoHS, RCM, and EU EMC directives.
It operates using a proximity sensor measurement principle for monitoring the piston position of pneumatic cylinders.
Yes, it includes an integrated LED indicator that provides immediate visual feedback on switch status.
Specific dimensions and weight details are not provided in the product information.
This position detector is ideal for use in industrial automation equipment, pneumatic actuators, and electrical control panels requiring reliable piston position sensing.
It uses a cable type electrical connection.
