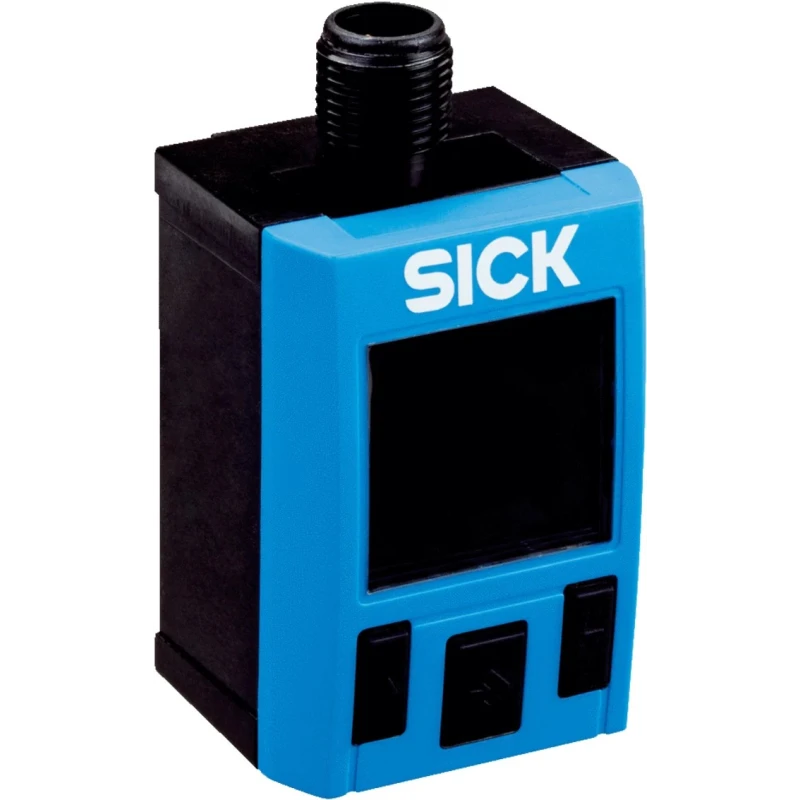

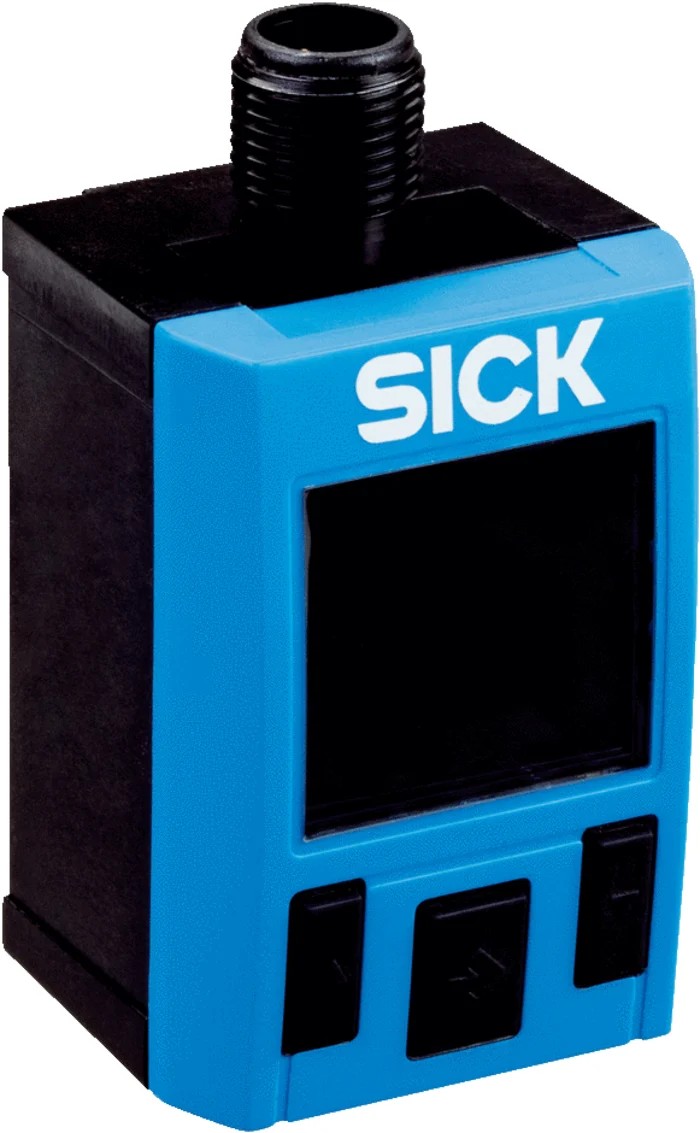

SICK Pressure Switch Gauge Pressure 30V DC, 0 to 10 V, NPN, PNP, Push Pull, 4 mA to 20 mA Output PAC50-BCB / 1062965

SICK PAC50-BCB pressure switch is engineered to provide precise gauge pressure measurement ranging from -1 bar to 1 bar with multiple configurable output signals including 0 to 10 V, NPN, PNP, Push Pull, and analog outputs of 4 mA to 20 mA or 0-10V. Operating at 30V DC, this device delivers dependable performance for industrial pneumatic and vacuum applications.

The large, bi-color display visibly indicates system pressure, output states, and switching points facilitating real-time monitoring from a distance. The user interface comprises three large function keys and an intuitive menu ensuring simple and efficient commissioning.

Designed for durability, the PAC50-BCB features an IP65 and IP67 rated enclosure assuring protection against dust and water ingress. Installation versatility is enhanced through pressure ports located on both the back and bottom, female 4 mm port size connections conforming to DIN ISO 16030 standards, and a practical DIN rail mounting option.

This pressure switch is suitable for air and gas media, making it ideal for compressed-air monitoring, vacuum monitoring in handling and robotics, leakage monitoring in closed systems, and pressure measurement in maintenance units and industrial machinery. Its rugged construction and advanced display functions bring reliability and operational clarity to critical measurement tasks.

With a temperature operating range of 0°C to 60°C and continuous current rating of 40 mA, the PAC50-BCB supports challenging environments. The device conforms to IEC 60529, EN 61326-2-3, and IEC 61298-2 standards ensuring compliance and enhanced operational safety.

Applications encompass compressed-air systems, vacuum grippers, air pressure monitoring in food slicers, and general industrial pneumatic pressure control. The optional IO-Link interface allows easy integration with automation systems, enabling quick parameter transfers and sensor replacement procedures, thereby minimizing downtime.

This high reliability Pressure Switch from SICK offers an all-in-one solution with fewer variants, reducing inventory costs while enhancing application flexibility. It is well-suited for laboratory, industrial, HVAC, manufacturing, and commercial pneumatic system monitoring scenarios.

Explore the full SICK product range and ensure your pneumatic systems operate efficiently and reliably with PAC50-BCB from EnvMart. Large bi-color display for clear pressure and output status. Multiple programmable switching outputs plus optional analog output.

Rugged IP65/IP67 protection for harsh environments. Easy commissioning via intuitive menu and function keys. Flexible installation with DIN rail mount and dual pressure ports. Measures gauge pressure from -1 bar to 1 bar.

Supports media including air and non-corrosive gases. Operating temperature range of 0°C to 60°C. Conforms to international IEC standards for safety. Optional IO-Link communication reduces downtime and simplifies sensor replacement.
