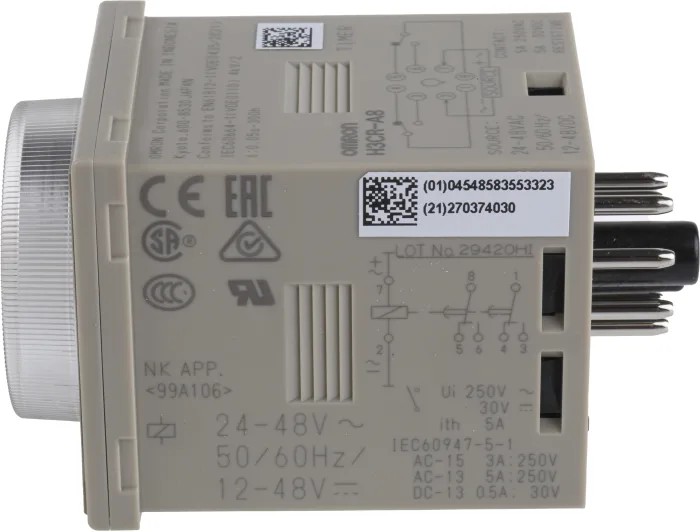

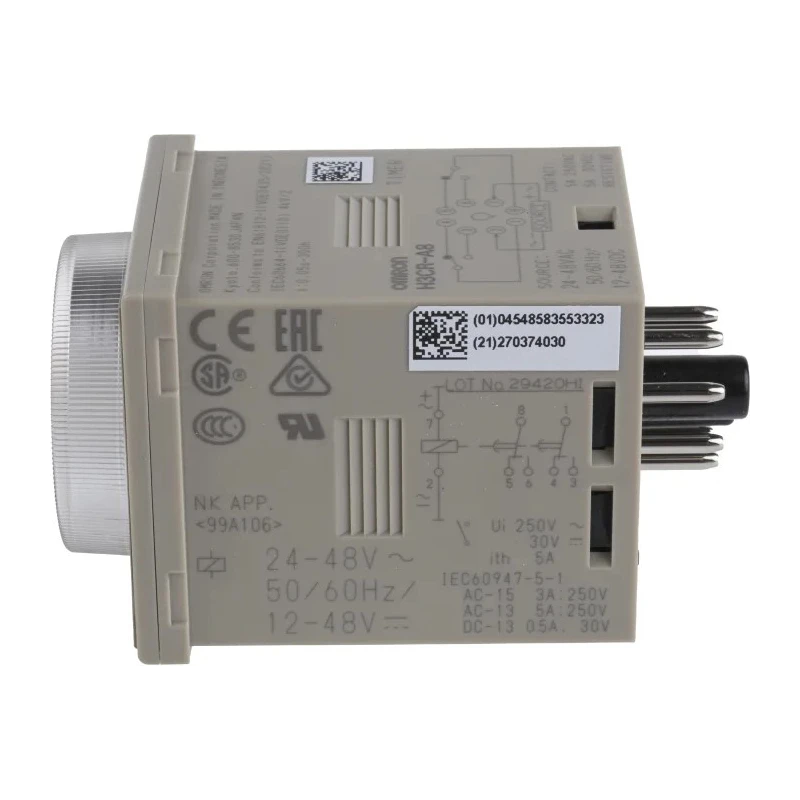

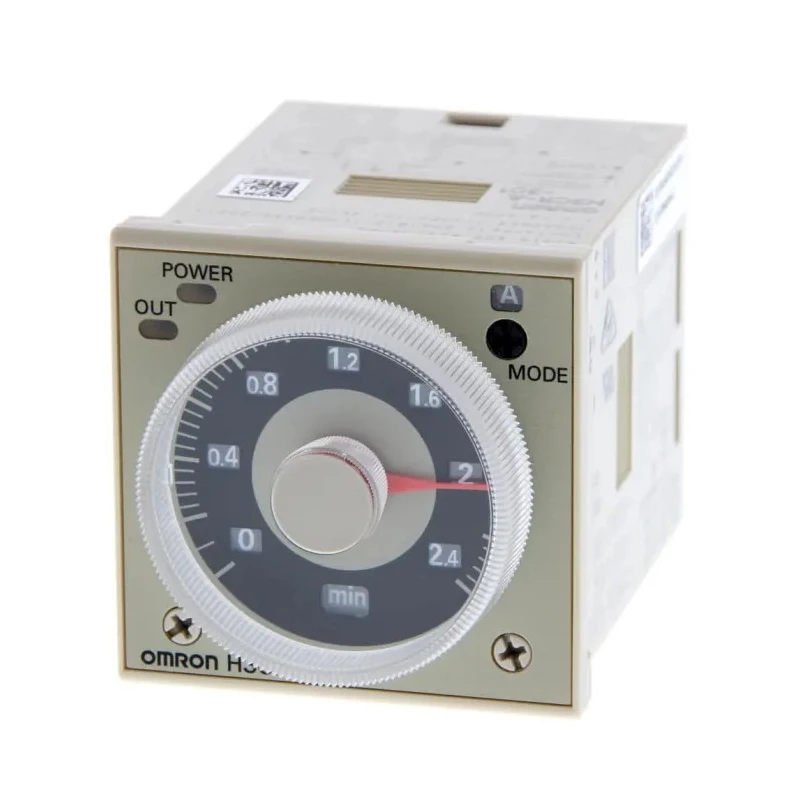

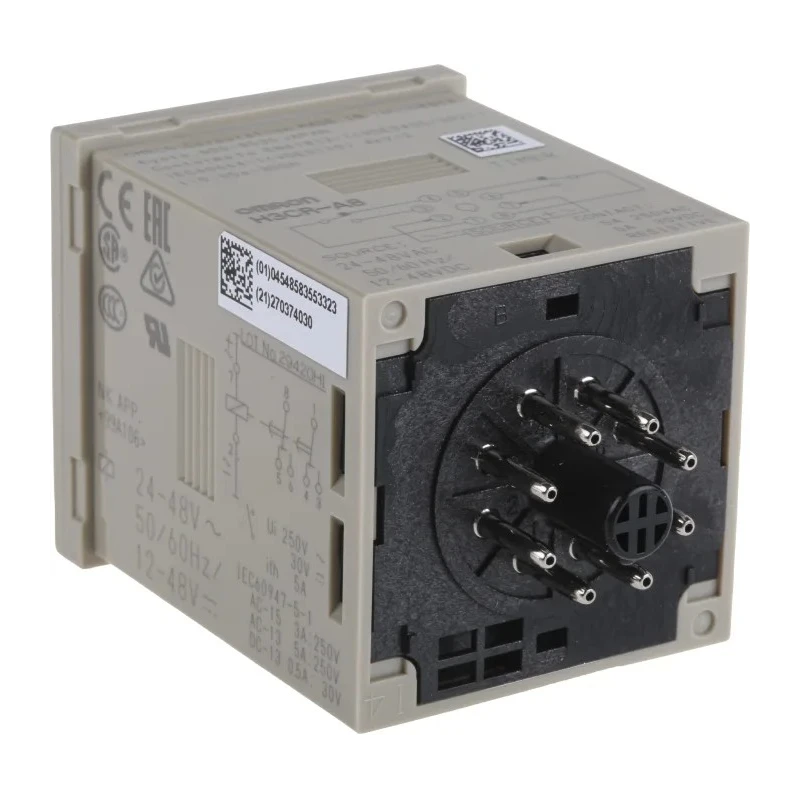

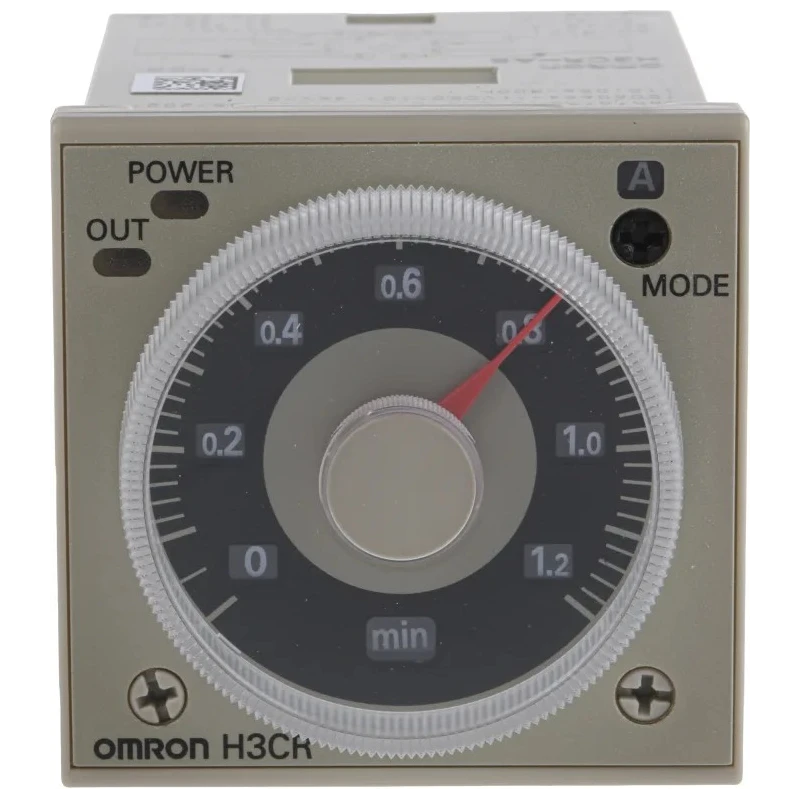

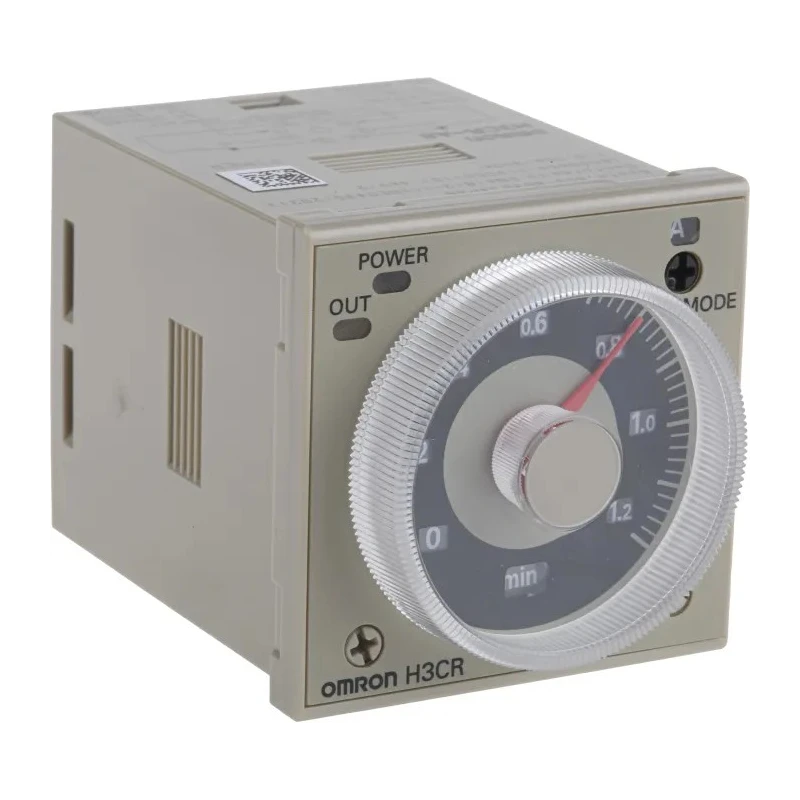

Omron Multifunction DIN Rail, Panel Mount Timer Relay 2-Contact 48 V dc, 24V/48V ac, 0.05 s to 300 h H3CR
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 81.6mm |
| Length | 48mm |
| Model | H3CR |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 48mm |
| Mount Type | DIN Rail, Panel Mount |
| Series | H3CR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.05 s to 300 h |
| Terminal type | 8-Pin |
| Standards/Approvals | UR, EN, CSA |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 24V ac |
| Contact Current | 3A |
| Supply DC Voltage | 48 V dc |
| Supply AC Voltage | 24, 48V ac |
| TIMER H3BA-8 24VACBrand | NEUTRAL |
Key Features
- Equipped with DPDT 2-contact configuration for versatile control.
- Multifunction mode supports various timing operations including flicker on/off and on/off delays.
- Compact design with dimensions 48 mm x 48 mm x 81.6 mm suitable for DIN rail and panel mounting.
- LED indicators enable quick power and contact status monitoring for maintenance efficiency.
- IP40 rating ensures protection against solid objects in industrial environments.
- Supports contact current up to 3A and switching voltage of 24 V ac.
- Operating temperature range from -10°C to 55°C for diverse applications.
- Constructed for resistance to vibrations and shocks, minimizing accidental disconnections.
Product Description
Omron H3CR-A8 AC24-48/DC12-48 is a high-quality multifunction timer relay designed for industrial and automation applications requiring precise timing control. This device supports both DIN rail and panel mounting, making installation flexible in compact control panels with its space-saving dimensions of 48 mm by 48 mm base and 81.6 mm height.
Operating within a wide voltage range, from 48 V dc to 24/48 V ac, this timer relay offers a broad timing range from 0.05 seconds up to 300 hours, allowing customization for numerous timed control processes in manufacturing lines, HVAC systems, medical imaging equipment, and industrial kitchens.
The relay features a DPDT 2-contact configuration facilitating multiple timer functions such as flicker on/off starts, intervals, and signal on/off delays. An LED indicator provides clear visual confirmation of power and contact status, simplifying troubleshooting and operational monitoring.
Its robust construction ensures reliability against vibrations and shocks commonly encountered in industrial environments, reducing service interruptions and enhancing system uptime. With an IP40 ingress protection rating, it is shielded against solid particles while meeting safety requirements under UR, EN, and CSA standards.
The timer relay’s 8-pin terminal block allows for secure connection and ensures safe electrical interfacing. It supports contact currents up to 3A and switching voltage of 24 V ac, suitable for medium load applications.
Equipped with multifunction timer capabilities for versatile applications. Dimensioned for compact panel and DIN rail mounting installations. LED power and contact status indicator for easy diagnostics. Wide timing range supports precise control from fractions of a second to several hours.
High reliability in harsh industrial environments with vibration and shock resistance.
Use this Omron H3CR timer relay to enhance control systems in industrial automation, manufacturing lines, medical equipment, HVAC installations, and other time-critical applications requiring reliable and accurate timing functions.
Explore more high-quality timer relays and control components in the Electronics & Electricals > Relays & Contactors > Timer Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a time range from 0.05 seconds to 300 hours, allowing for a variety of timing applications.
It operates within a voltage range of 48 V dc and 24/48 V ac, making it versatile for different electrical systems.
The timer relay features a DPDT (Double Pole Double Throw) 2-contact configuration, which allows for multiple timer functions.
It supports a maximum contact current of 3A, suitable for medium load applications.
This unit has an IP40 rating, providing protection against solid objects in industrial environments.
The dimensions are 48 mm x 48 mm x 81.6 mm, making it suitable for compact installations.
It can be mounted on DIN rail or panel, providing flexibility in installation.
The operating temperature range is from -10°C to 55°C, allowing it to function in various environments.
It meets UR, EN, and CSA standards, ensuring compliance with safety and performance requirements.

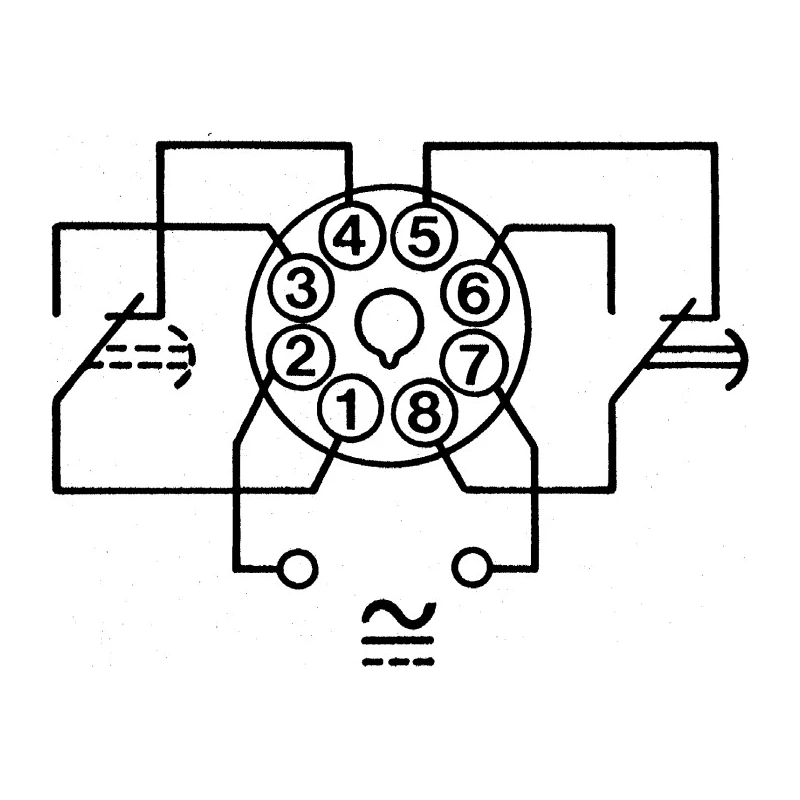

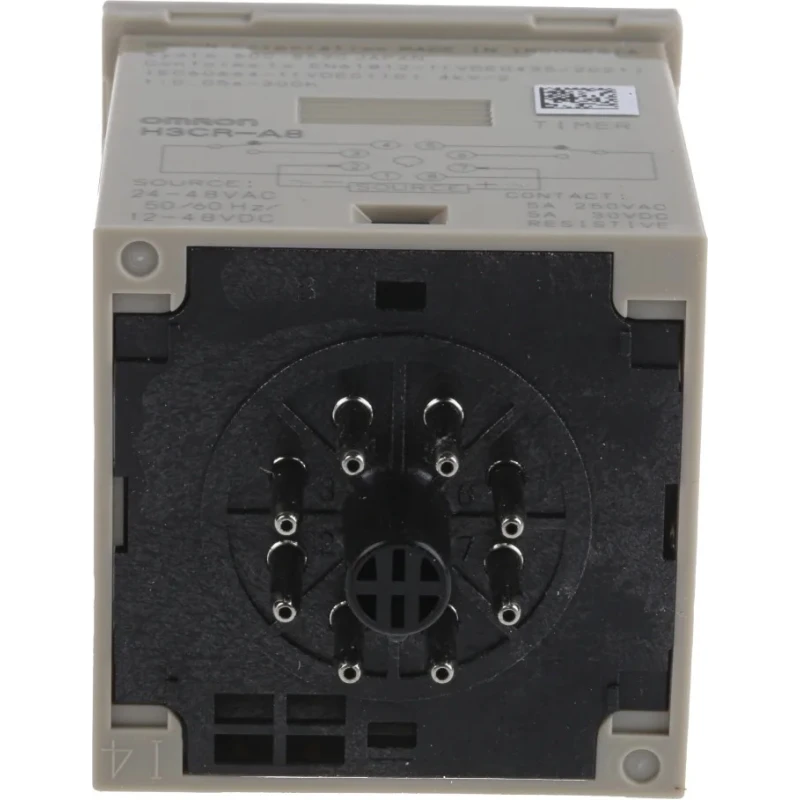

It features an 8-pin terminal block for secure electrical connections.
It supports various timing operations including flicker on/off and on/off delays, enhancing its versatility in control applications.
The country of origin for this model is Indonesia.
