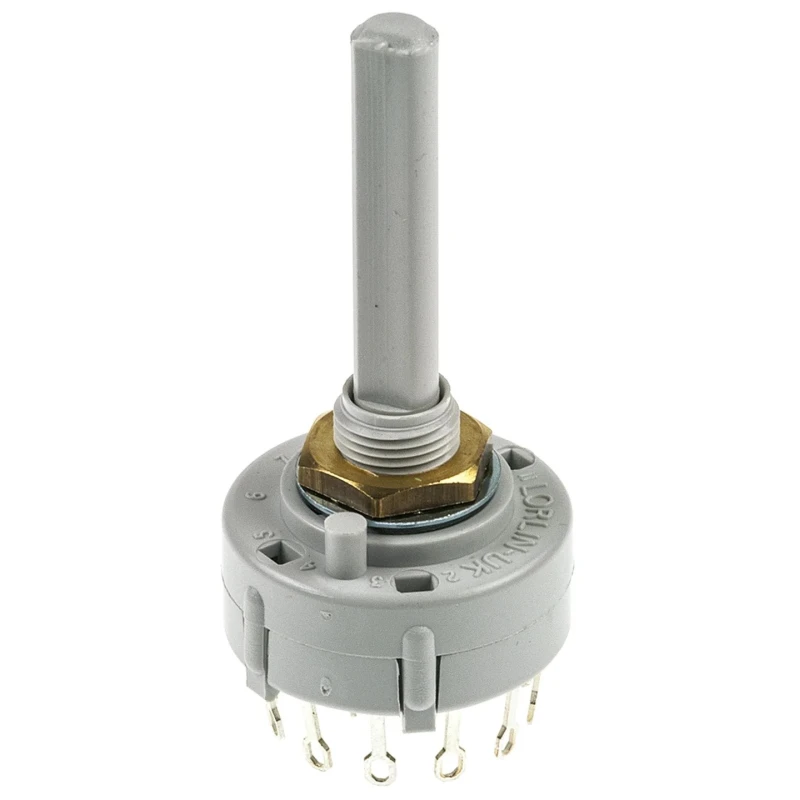

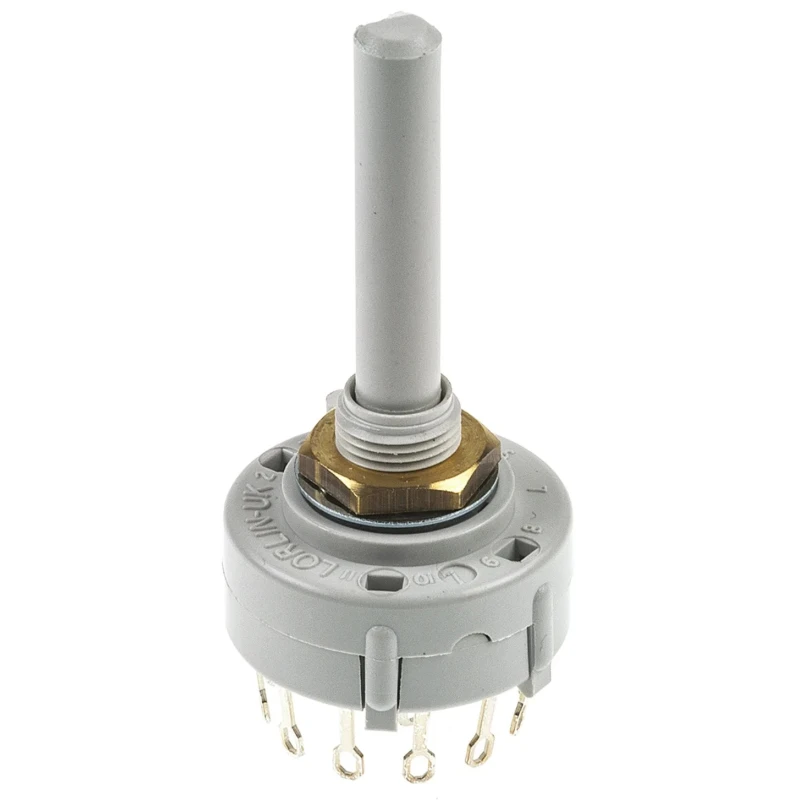

Lorlin 4 Position 3PST Rotary Switch, 150mA Current, Panel Mount, Solder Tab Terminals CK1036
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1036 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PST |
| Number of Positions | 4 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 3 Position 4PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- The switch features a robust polyamide housing ensuring durable performance.
- It has 4 distinct positions and 3 poles for versatile control applications.
- The operating temperature range spans from -30°C to 85°C, suitable for various environments.
- The mechanical life rating is 10,000 cycles, ensuring longevity in repetitive use.
- The actuator is silver colored with a 90° angle of throw for precise and tactile feedback.
- This switch is RoHS compliant, confirming adherence to environmental standards.
- The compact dimensions include a 27.5mm diameter and 59.1mm height, allowing for easy integration.
- The device includes a 1.5-inch long spindle with a 0.25-inch diameter and 30mm flat for secure knob mounting.
Product Description
Lorlin CK1036 4 Position 3PST Rotary Switch offers a compact and reliable electrical switching solution suitable for various industrial and electrical applications including automation, control panels, and instrumentation.
Featuring a durable polyamide housing and silver-colored actuator, this switch provides up to 150mA contact current at 250V AC or 24V DC, accommodating both low and medium power circuits.
The switch's contact configuration is triple pole single throw (3PST) with four selectable positions and a 90° angle of throw, ideal for selecting discrete operational states in control systems.
The device supports panel mounting with solder tab terminals for secure and easy connectivity. Its operating temperature range from -30°C to 85°C allows use in harsh or varying environmental conditions.

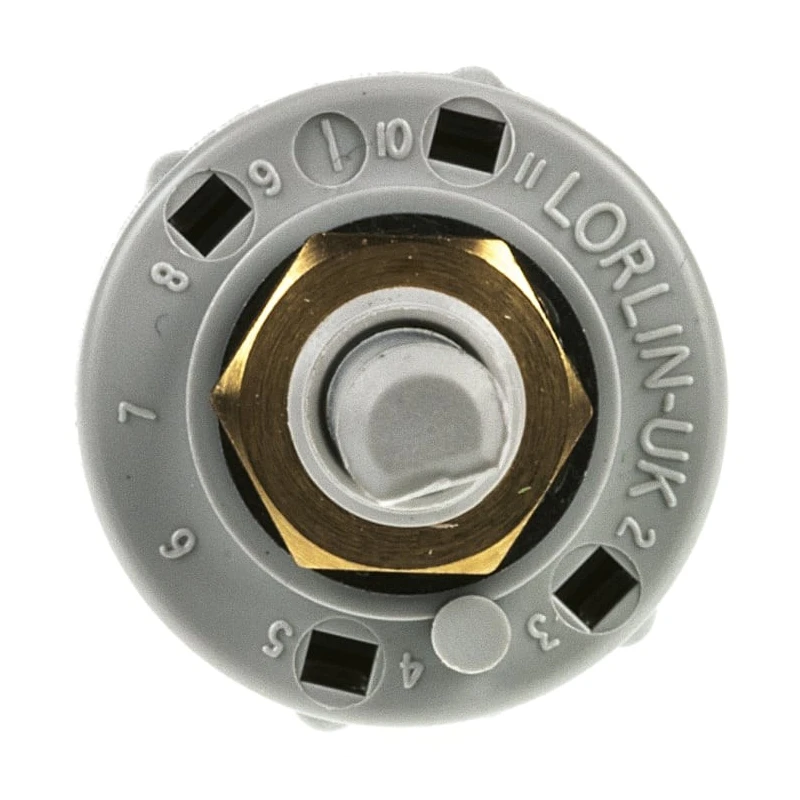

Mechanical life is rated at 10,000 cycles, ensuring durability in repetitive switching scenarios. The spindle includes a 1.5-inch length with a 0.25-inch diameter and a flat 30mm face for precise knob attachment. It features an 8mm long bush with a 9.52x32 TPI thread for mounting stability.
Designed and manufactured in the United Kingdom, the switch meets RoHS compliance standards. It also offers proof voltage of 1500Vac and UL-VO rating for electrical safety. The switch supports both make-before-break (MBB) and break-before-make (BBM) contact options, allowing flexible circuit design and protection.
The silver actuator provides a professional and highly visible interface for user operation. The compact 27.5mm diameter housing and 59.1mm height fit well into panel cutouts for space-efficient installation. This product is widely used in electrical control panels, automation equipment, test instruments, and communication devices.

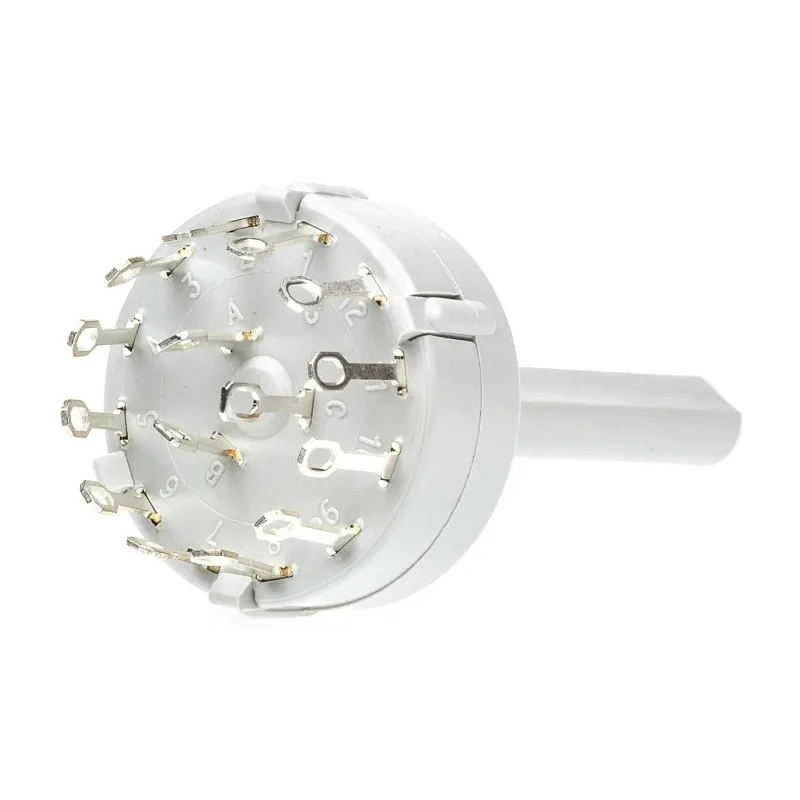

The solder tab terminals enable reliable wire or PCB connection for stable and maintenance-free operation. Explore EnvMart’s extensive range of Rotary Switches and electrical components to find compatible and complementary devices for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating for this model is 150mA.
This rotary switch features a triple pole single throw (3PST) contact configuration.
The operating temperature range spans from -30°C to 85°C, making it suitable for various environments.
The switch has a diameter of 27.5mm and a height of 59.1mm, allowing for easy integration into panels.
This model features 4 distinct positions for versatile control applications.

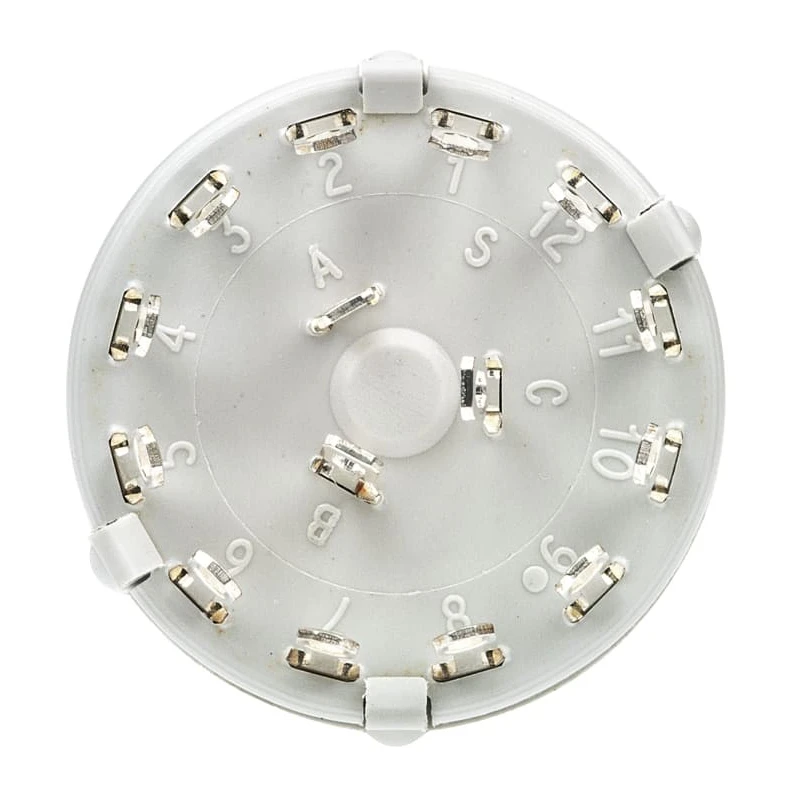

It is equipped with solder tab terminals for secure and easy connectivity.
The mechanical life rating of this rotary switch is 10,000 cycles, ensuring longevity in repetitive use.
The actuator has a 90° angle of throw, providing precise and tactile feedback during operation.
The switch features a robust polyamide housing, ensuring performance in various applications.
Yes, this rotary switch is RoHS compliant, confirming adherence to environmental standards.
The proof voltage for this model is 1500Vac, ensuring electrical safety during operation.
The spindle is 1.5 inches long with a diameter of 0.25 inches, featuring a 30mm flat for secure knob attachment.
