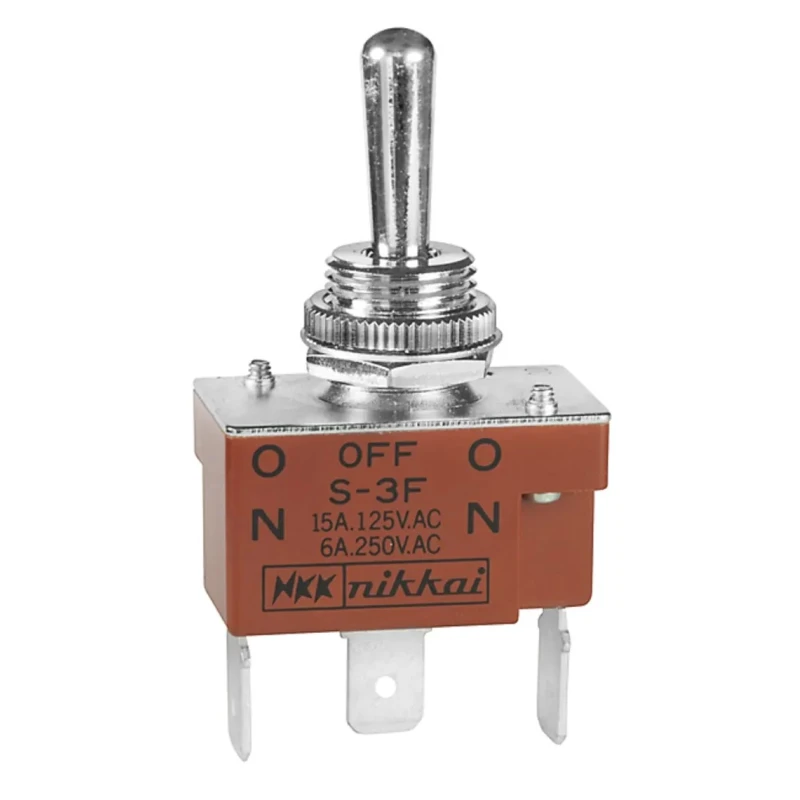

NKK Switches Toggle Switch Panel Mount On-Off-On SPDT Quick Connect Terminal 15A 30V DC 125V AC S3F

Name: NKK Switches Toggle Switch Panel Mount On-Off-On SPDT Quick Connect Terminal 15A 30V DC 125V AC S3F
Brand: NKK Switches
SKU: 155397
Price: 8.43 USD
Availability: InStock



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Philippines
Brand	NKK Switches
Height	57.2mm
Length	30mm
Model	S3F
IP Rating	IP67
Mount Type	Panel
Series	S
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	SPDT
Minimum Operating Temperature	-10°C
Panel Cutout Size	12.5 mm
Terminal type	Quick Connect
Standards/Approvals	CSA, cULus, UL
Switch Operation	On-Off-On
Actuator Length	17.5mm
Contact DC Voltage	30V dc
Switch Contact Current	15A
Mechanical Life	50000Operations
Contact AC Voltage	125V ac
Actuator Material	Chrome Plated Brass

Key Features

Features a 15A contact current rating for medium capacity electrical switching.
Operates with 30V DC and 125V AC voltage ratings suitable for various circuits.
Includes a chrome-plated brass actuator with 17.5 mm length for durable operation.
Rated IP67 for protection against dust and water ingress in harsh environments.
Designed for panel mounting with a required cutout size of 12.5 mm for easy integration.
Provides a mechanical life of 50,000 operations ensuring long-term reliability.
Complies with CSA, cULus, and UL standards for certification and safety.
Suitable for applications in industrial, automation, electrical control, and marine settings.

Product Description

NKK Switches S3F Toggle Switch is a high-quality panel mount toggle switch featuring an On-Off-On SPDT operation with quick connect terminals. It supports a contact current of 15A and contact voltages of 30V DC and 125V AC, making it suitable for medium capacity electrical control circuits. The switch's actuator is crafted from chrome-plated brass with a length of 17.5 mm, designed for durability and easy operation.

Its construction meets IP67 rating, ensuring full protection from dust and water, thus ideal for use in harsh environments including marine applications. The switch is designed to be mounted on panels, requiring a cutout size of 12.5 mm, facilitating straightforward installation.

This toggle switch boasts a mechanical lifespan of 50,000 operations, assuring long-term reliability for continuous use. Compliance with CSA, cULus, and UL standards guarantees its adherence to strict electrical and safety norms necessary for industrial and commercial deployment.

Typical use cases include electrical automation systems, control panels, construction equipment, transportation controls, as well as critical environments requiring dependable switch solutions. It is manufactured in the Philippines under the S series by NKK Switches, a trusted brand in electrical components.

15A contact current supports medium capacity switching needs. Quick connect terminals allow for fast and secure wiring connections. IP67 protection rating enables use in outdoor and marine conditions. Chrome-plated brass actuator offers a long-lasting robust control interface.

Panel mount form factor with 12.5 mm cutout size for integration. Mechanical life rated to 50,000 cycles for sustained durability. Certified by CSA, cULus, and UL for safety compliance. Compatible with automation, electrical, marine, and equipment control applications.
