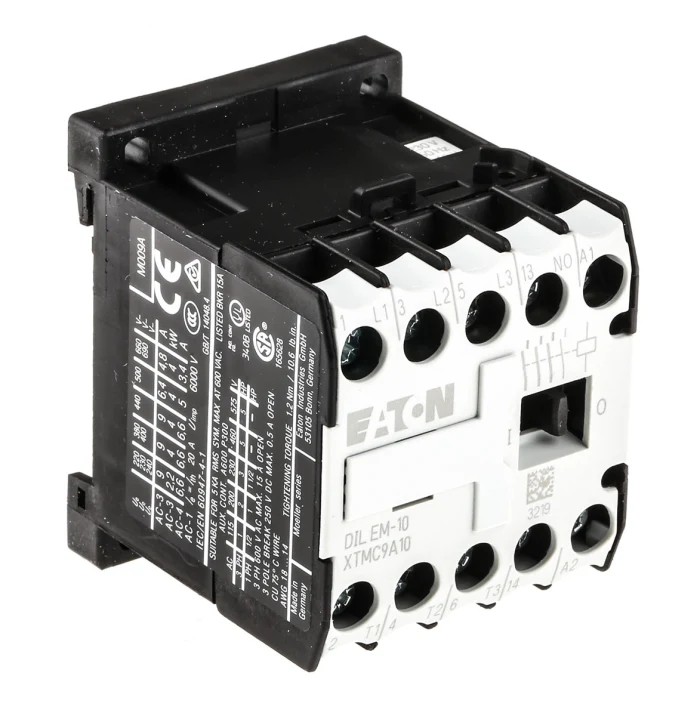

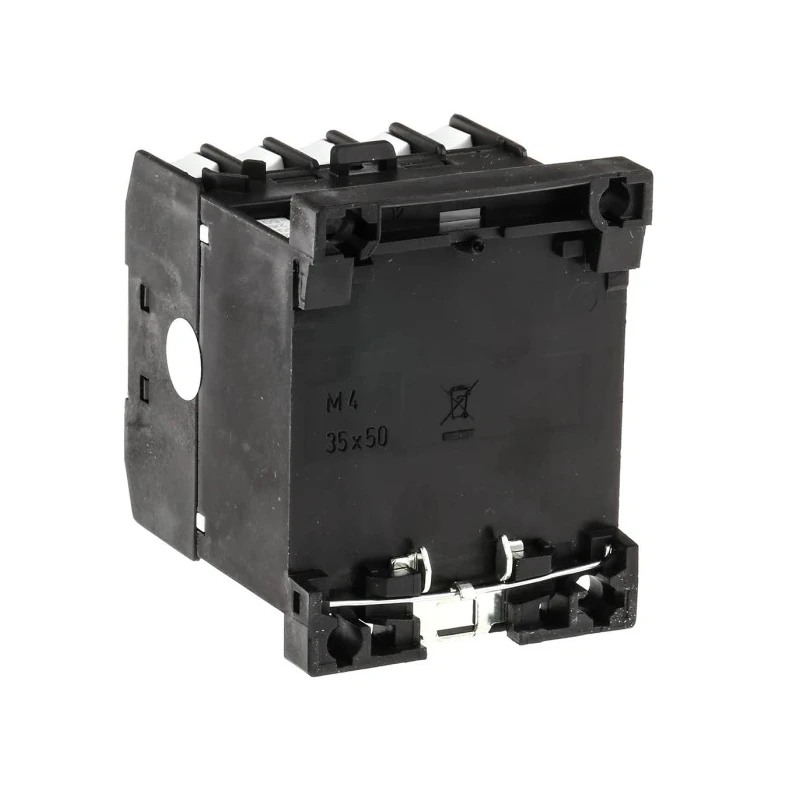

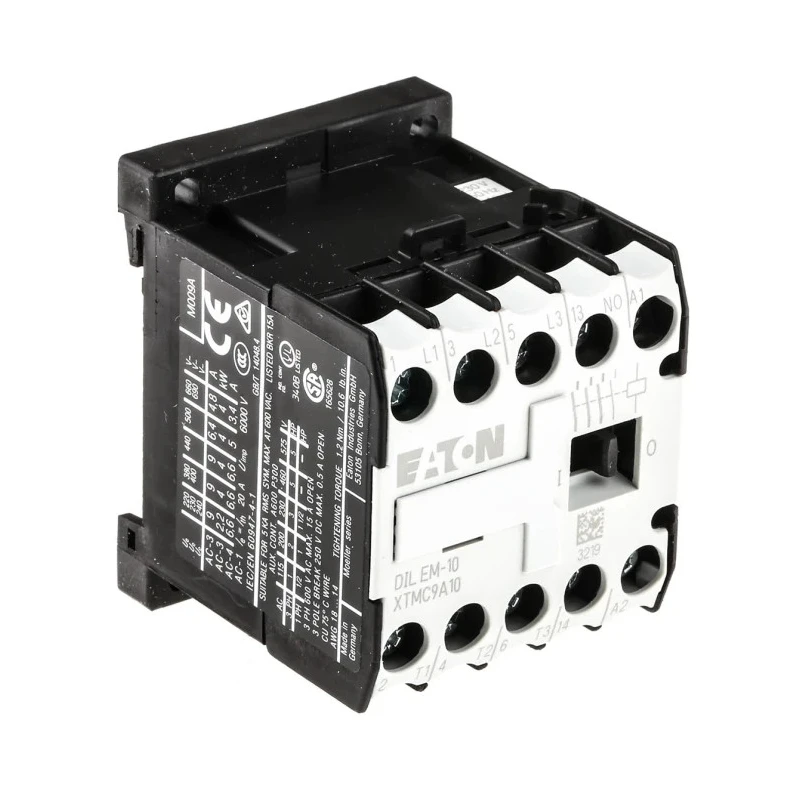

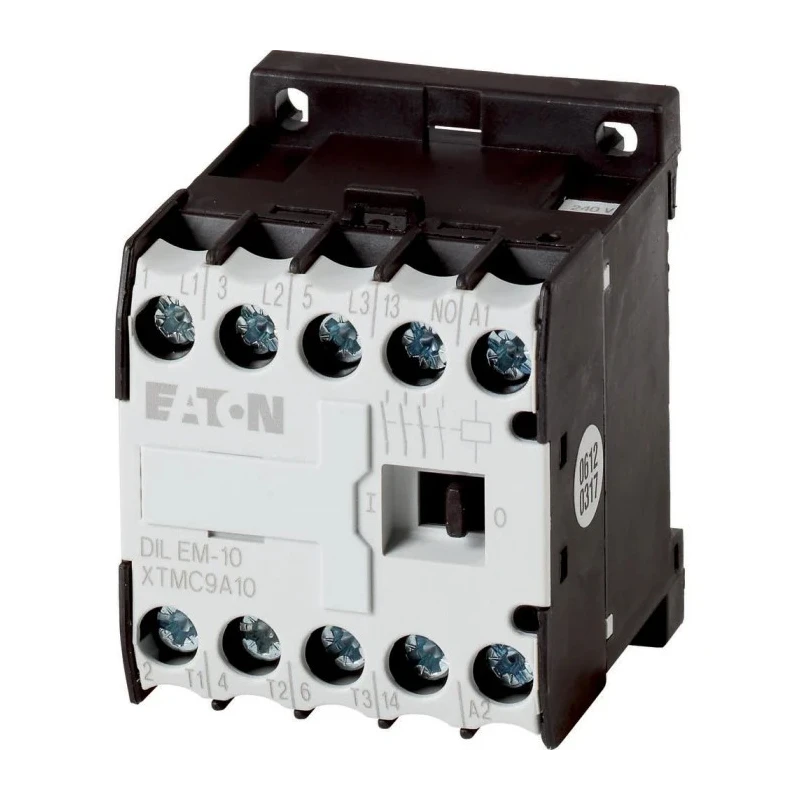

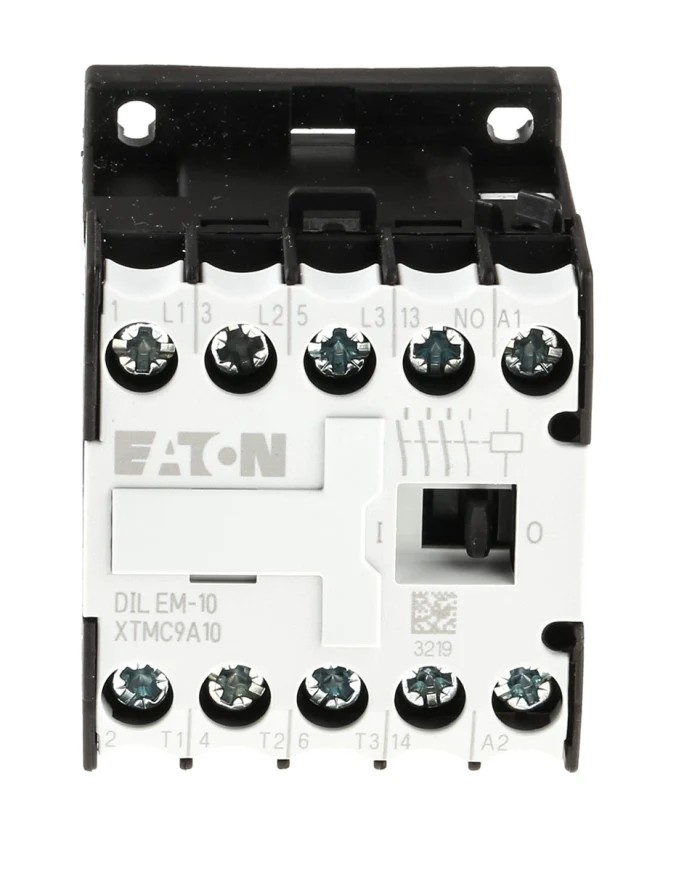

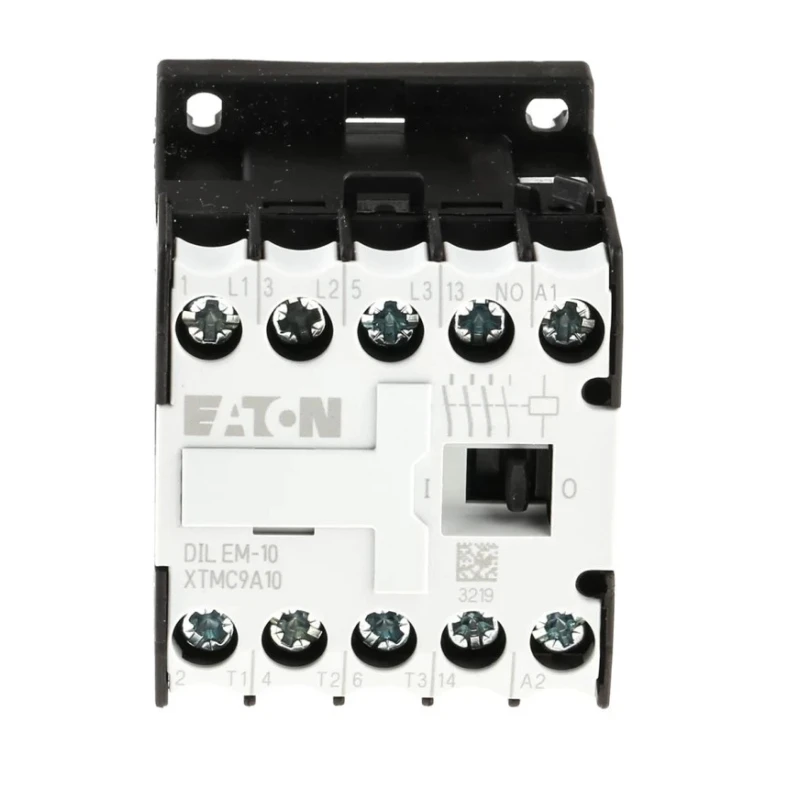

Eaton DILEM Contactor 3-Pole 9 A 4 kW 230V AC Coil, 3 NO, 400V AC 051786 DILEM-10(230V50HZ,240V60HZ)

Eaton 051786 DILEM-10(230V50HZ,240V60HZ) 3-Pole Contactor is engineered for reliable motor control and resistive load switching in various industrial settings. Featuring a robust 230V AC coil and the capability to handle contact currents of 9 A and contact voltages of 400V AC, it delivers efficient operation up to a power rating of 4 kW.

The contactor is installed with versatile screw terminals that support wire sizes from 0.75 to 2.5mm² (18 to 14 AWG), ensuring compatibility with a wide range of wiring requirements. Installation flexibility is enhanced with options for DIN rail or surface mounting to suit different panel designs.

Equipped with a normal state configuration of 3 normally open (NO) contacts and an auxiliary contact with 1 NO configuration, this contactor faithfully supports motor control and resistive load applications with precise switching.

Designed to withstand harsh industrial environments, it operates reliably between -25°C and +50°C in open installations and up to +40°C when enclosed, offering peace of mind for temperature-sensitive applications.

The mechanical lifespan of this Eaton DILEM series device extends to 10 million operations, reflecting its durability and suitability for continuous industrial use. With compact form factor dimensions of 58mm length, 45mm width, and 83mm depth, the contactor fits easily within control panels without occupying excessive space.

It complies with rigorous international standards such as VDE 0660, UL, IEC/EN 60947, and CSA, guaranteeing safety, quality, and compatibility worldwide. The contactor supports motor control and resistive load switching with a 230V ac coil voltage.

Features 3 poles and 3 normally open contacts with a 9 A contact current rating. Power rating of 4 kW and a control circuit voltage of 230V AC. Mount type is screw, offering DIN rail or surface mounting options. Operating temperature range from -25°C to +50°C open, and -25°C to +40°C enclosed.

Compact size with length 58mm, width 45mm, and depth 83mm. Meets VDE 0660, UL, IEC/EN 60947, and CSA standards for electrical equipment.

This Eaton DILEM contactor is ideal for industrial, manufacturing, automation, and electrical control applications where reliable switching and long service life are essential. Browse the Automation & Control Gear category at EnvMart for compatible products and accessories.
