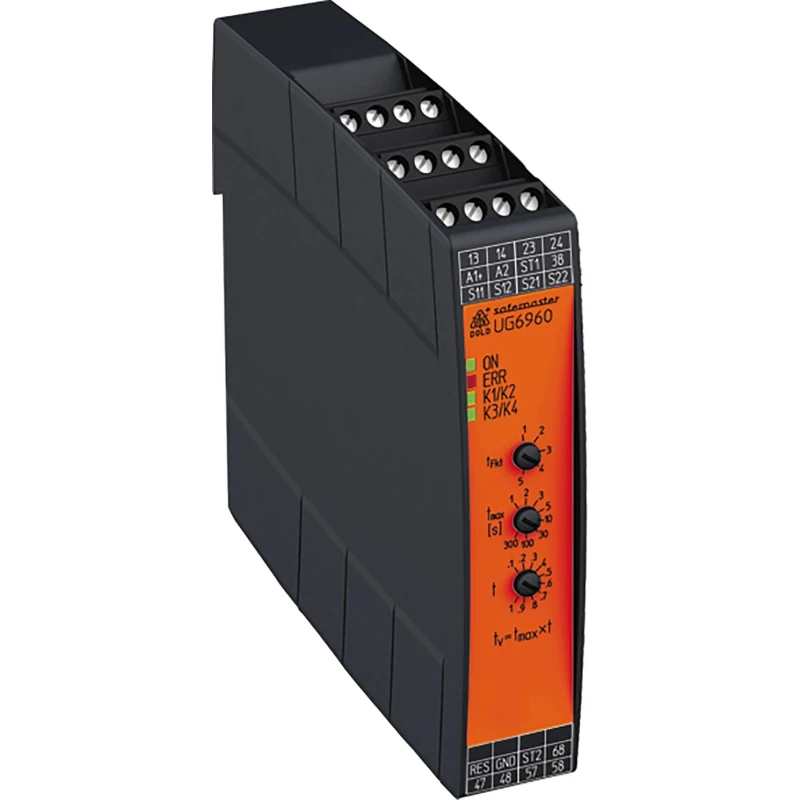

Dold UG6960 Series DIN Rail Timer Relay, 4-Contact, 24 V dc, 300 s, 5-Function, DPST Switch UG6960.04PS/100/61 DC24V 300s

Dold UG6960.04PS/100/61 DC24V 300s DIN Rail Timer Relay features a 24 V dc supply voltage and a 300-second timing range, making it ideal for precise time-dependent switching tasks in industrial and automation applications.

This timer relay includes 4 contacts configured as DPST, with 2 normally open (NO) instantaneous contacts and 2 NO time-delayed contacts to accommodate diverse control scenarios. The device supports 5 distinct timer functions which can be easily set via an integrated potentiometer, providing flexibility and adaptability for system requirements.

Its compact design with a mounting width of 22.5 mm allows space-saving installations on DIN rails. Terminal types include screw connections and optional cage clamp terminals, with pluggable terminal blocks available for simplified device exchange and maintenance. The relay is suitable for continuous operation over a wide temperature range from -25°C to +55°C.

Advanced safety functions integrated into the UG6960 series include emergency stop (E-Stop), safety gate monitoring, two-hand control protection, safety mats or edges, and exclusive-or contacts for light curtains. These features enhance safety compliance in industrial environments, supporting standards such as IEC/EN 60947-5-1, UL508, and EN ISO 13849-1.

Additional functionality comprises line fault detection on the On button with manual or automatic restart options and cross fault monitoring. LED indicators provide clear status feedback on operation, safety functions, delays, and faults to facilitate diagnostics.

Versatile delay functions including release delay, release delay retriggerable, on delay, and fleeting on make/break options. Forcibly guided output contacts meet safety requirements for control circuit applications. IP40 and IP20-rated protection ensures durability against dust ingress.

Compact DIN rail mounting suitable for industrial automation, electrical systems, and signal conditioning. Manufactured in Germany adhering to stringent quality standards.

This Dold UG6960 series timer relay is widely used in industrial automation, electrical control panels, machinery safety systems, HVAC control, and manufacturing process timing operations. It ensures reliable switching performance combined with comprehensive safety features suitable for modern industrial safety standards.
