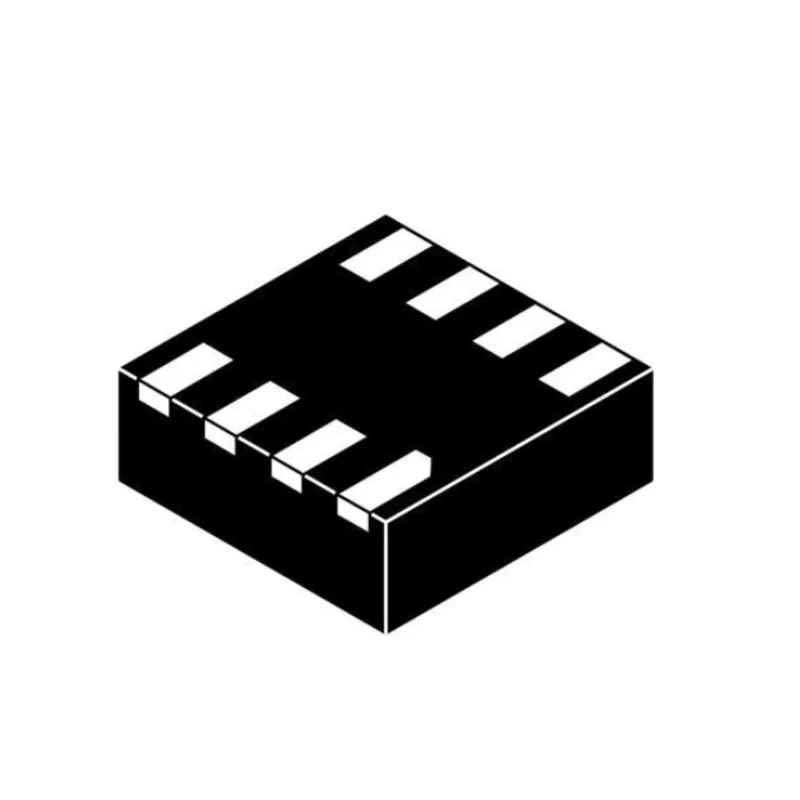

Infineon NOR 256 MB Quad-SPI Flash Memory 8-Pin WSON Package S25FL256LAGNFM010

Infineon S25FL256LAGNFM010 is a high-capacity NOR Flash Memory device offering 256 MB of organized non-volatile storage designed primarily for embedded systems and automotive electronics. Featuring a synchronous Quad-SPI interface, it facilitates high-speed data transfers with a maximum clock frequency of 133 MHz, optimizing performance for demanding industry applications.

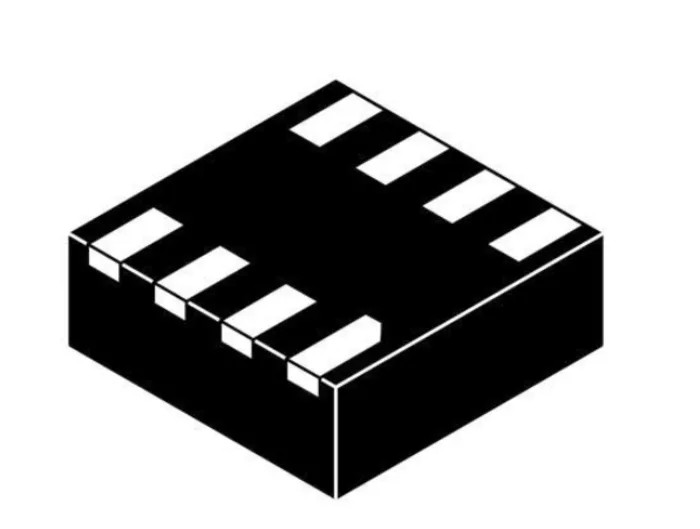

This device comes in an 8-pin WSON surface-mount package, allowing for compact PCB integration and compatibility with automated assembly processes such as pick-and-place and reflow soldering. The memory array is organized as 32 million words by 8 bits, enabling straightforward byte-oriented addressing and software mapping.

Operating within supply voltages from 2.7V to 3.6V and temperatures from -40°C to 125°C, the S25FL256LAGNFM010 ensures reliable function across harsh environments often encountered in automotive and industrial control units. The NOR cell architecture supports stable random access reads and execute-in-place capabilities important for embedded firmware operation.

Its maximum random access time is 8 nanoseconds, reducing latency in read operations. Compliance with the AEC-Q100 automotive standard validates its suitability for automotive-grade applications requiring durability and quality. Applications include memory expansion for real-time processing boards, firmware storage in telematics, and high-speed boot loaders in industrial controllers.

The compact WSON packaging supports automated manufacturing, enhancing volume production efficiency. This product is engineered for situations demanding reliable, fast, and durable flash memory solutions within industrial, automotive, and embedded system sectors.

Offers 256 MB of non-volatile memory suitable for embedded and automotive applications. Implements a Quad-SPI interface for efficient synchronous data transfers up to 133 MHz clock frequency. Designed in a compact 8-pin WSON package for surface mounting on PCBs.

Supports operation from 2.7V to 3.6V supply voltage within -40°C to 125°C temperature range. Structured as 32M x 8 bits for straightforward byte-oriented software mapping. Provides a maximum random access time of 8 ns ensuring low read latency.

Built with NOR cell technology enabling stable random read and execute-in-place capability. Qualified to AEC-Q100 automotive standard, assuring reliability in harsh environments. Ideal for automotive control units, industrial controllers, data logging, and firmware storage.

Supplied for automated PCB assembly with pick-and-place and reflow soldering compatibility. Discover more components and solutions in the Flash Memory category on EnvMart for your electronic and semiconductor needs.
