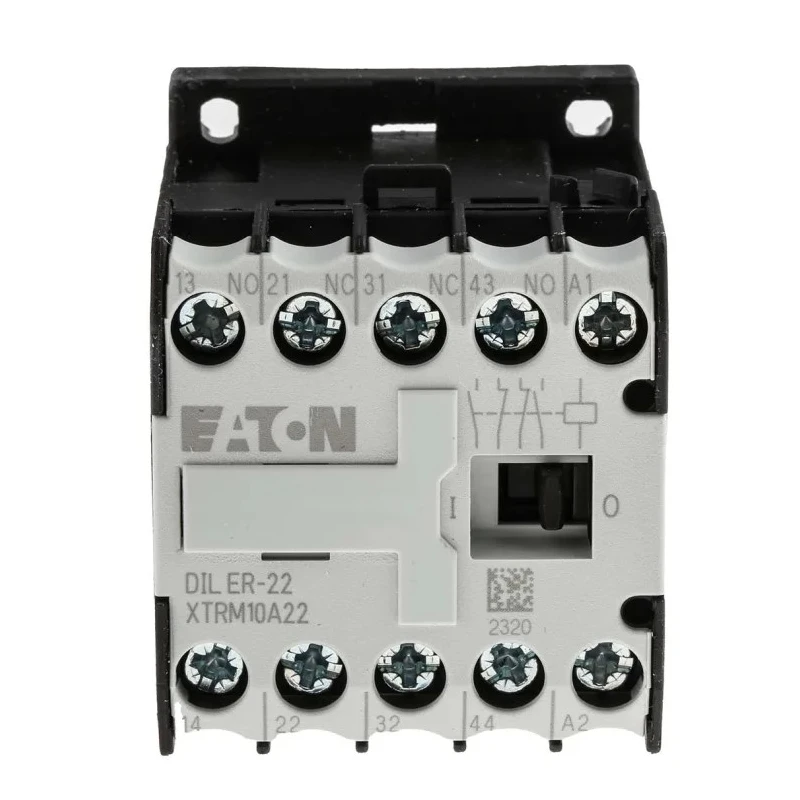

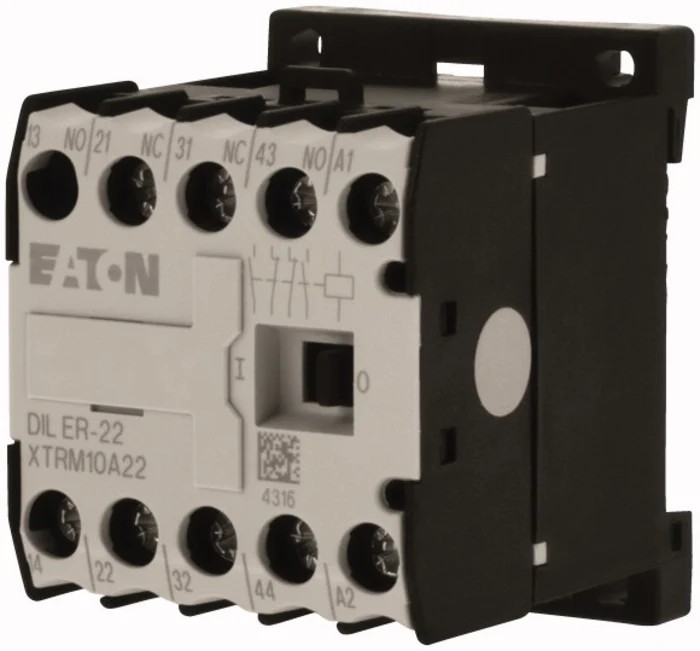

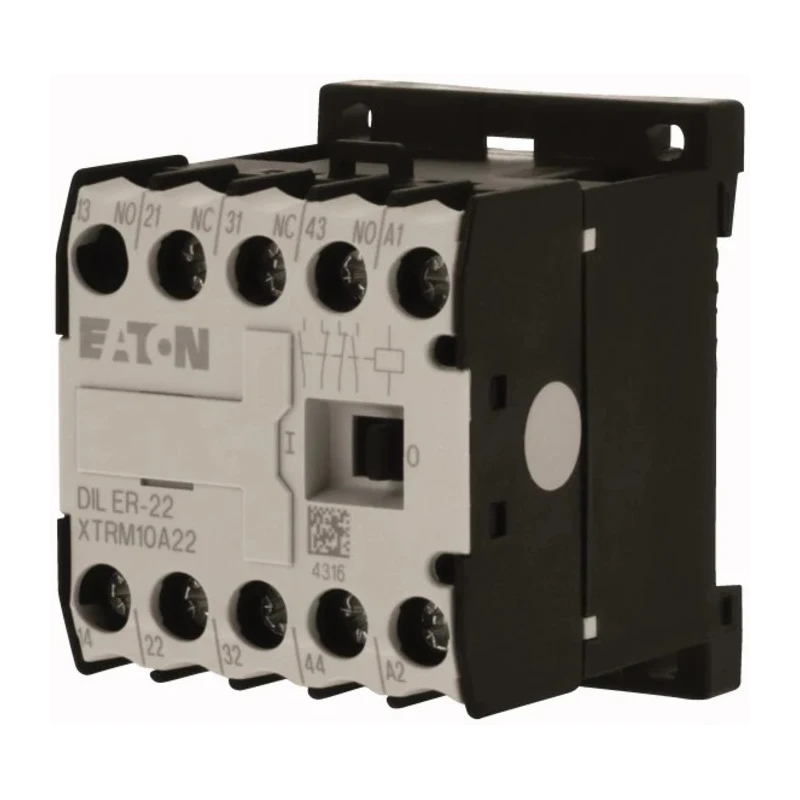

Eaton DILER Contactor Relay, 24V AC Coil, 4-Pole, 3A Contact Current, 2 NO/2 NC, 400V AC, DIN Rail 010344 DILER-22(24V50HZ)
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Function | Motor Switching, Power Switching |
| Length | 58mm |
| Model | 010344 DILER-22(24V50HZ) |
| Depth | 54mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILER |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 3A |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 10A |
| Contactor Application | Motor Switching, Power Switching |
| Pole and Throw Configuration | 4 |
| Eaton DILER Contactor, 24V dc Coil, 4-Pole, 3 A 24V dc, 4 NO, 400V acBrand | Eaton |
Key Features
- This contactor supports a contact current of 3 amperes at 400V AC.
- The device includes 2 normally open (NO) and 2 normally closed (NC) contacts.
- Mounting is facilitated via DIN rail with secure screw terminals.
- It operates reliably in temperatures from -25°C to 40°C.
- The contactor delivers a mechanical lifespan of around 10 million operations.
- It features an IP20 ingress protection rating for safety against accidental contact.
- This relay supports a maximum operational frequency of 9,000 mechanical operations per hour.
- Complies with CSA, UL, VDE 0660, and EN/IEC 60947 standards.
Product Description
Eaton 010344 DILER-22(24V50HZ) contactor is a precision-engineered relay designed for effective motor switching and power control applications. Featuring a 24V AC coil and 4 poles, it provides dependable switching of electrical currents up to 3 amperes with contact voltage rating at 400V AC. This model is a vital component in automation and control gear setups where reliable operation and protection of electrical circuits are paramount.
The contactor is engineered to withstand harsh environments with an operating temperature range from -25°C up to 40°C, enabling operational stability in diverse industrial conditions. Its durable mechanical lifespan extends to approximately 10 million operations, supporting intensive switching cycles common in manufacturing and commercial automation.
Installation is simplified by its DIN rail mounting and screw terminal design, allowing secure and swift integration into control panels. The 2 normally open and 2 normally closed contact configuration provides versatile switching options for complex circuit requirements. Ingress protection rating IP20 ensures safety against direct finger contact, making this suitable for environments demanding high safety standards.
Dimensionally compact at 58mm in length, 45mm width, and 54mm depth, this contactor saves space in panel installations while meeting rigorous standards like CSA, UL, VDE 0660, and EN/IEC 60947. Manufactured in Germany, it assures premium quality and compliance for industrial, commercial, and automation use cases.
This contactor is ideal for motor switching and power switching applications requiring precision control. It suits harsh and temperature-variable environments in industrial automation. Extensively approved for safe and reliable global deployment.
The compact modular design supports dense control panel layouts. Robust construction provides sustained performance in continuous operation scenarios. Explore more Eaton automation and control gear products and ensure efficient system performance with trusted, high-quality components from the DILER series on EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor supports a contact current of 3 amperes at 400V AC.
This model operates with a 24V AC coil.
It features a 4-pole configuration.
The maximum operating temperature is 40°C.
It is designed for DIN rail mounting with screw terminals for secure connections.
The contactor has a mechanical lifespan of approximately 10 million operations.
It has an IP20 ingress protection rating, ensuring safety against accidental contact.
The dimensions are 58mm in length, 45mm in width, and 54mm in depth.
This contactor has a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts.
It is suitable for motor switching and power switching applications.
It complies with CSA, UL, VDE 0660, and EN/IEC 60947 standards.
The operational current rating is 10A.
