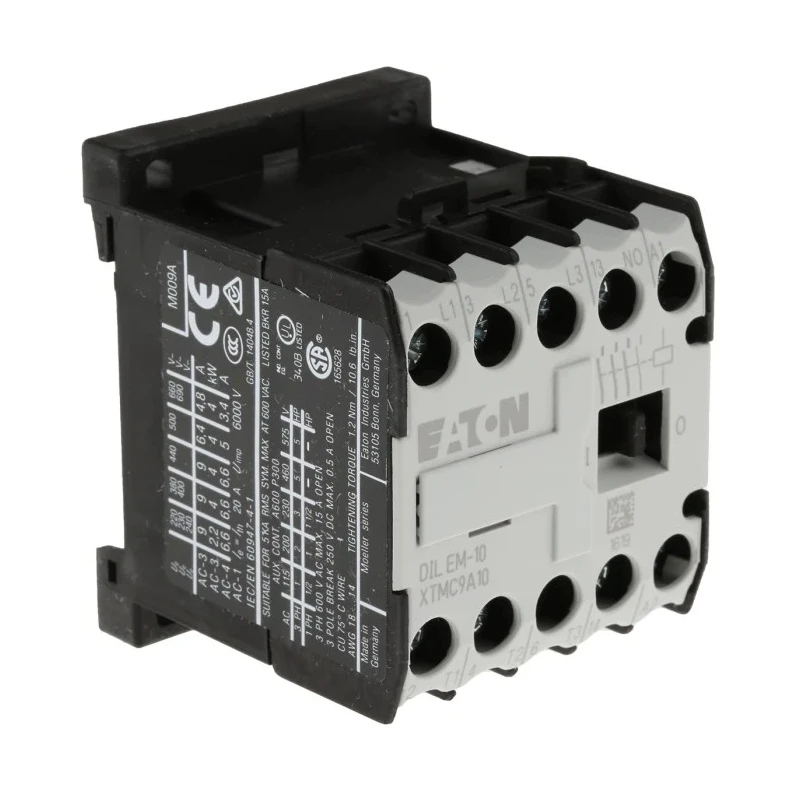

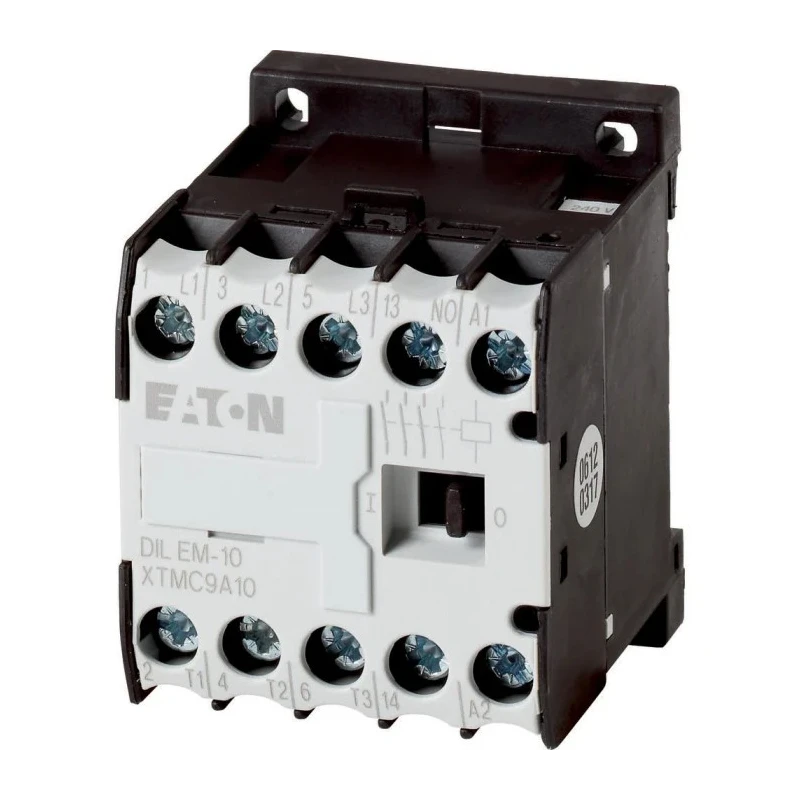

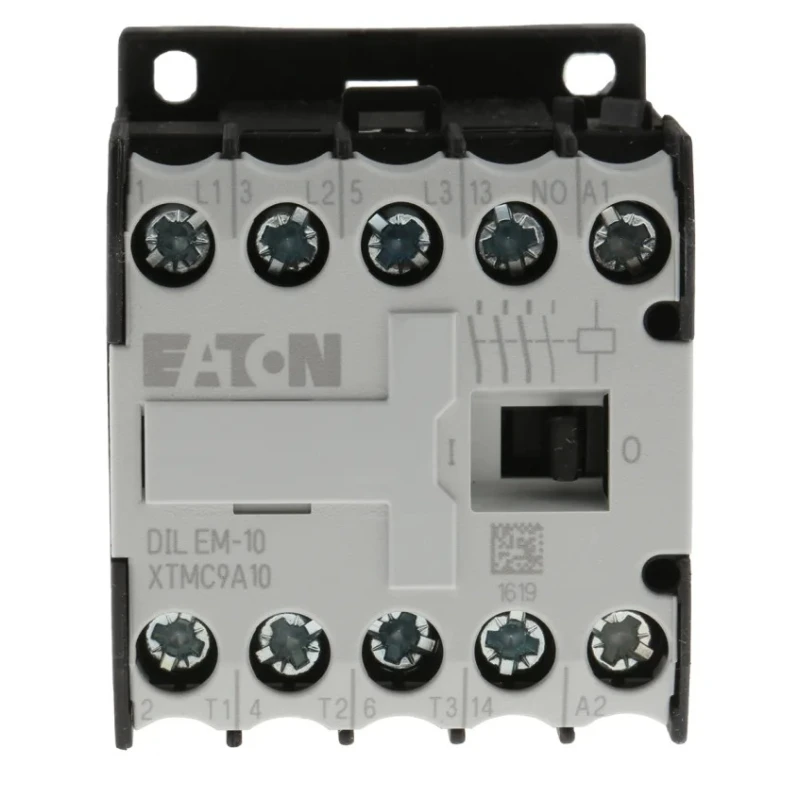

Eaton DILEM Contactor, 240V AC Coil, 3-Pole, 9 A, 4 kW Motor Control, 3 NO, 400V AC 010032 DILEM-10(240V50HZ)

Eaton 010032 DILEM-10(240V50HZ) contactor is a high-performance motor control device designed for switching both inductive and non-inductive loads efficiently. It supports a coil voltage of 240V AC and contact voltage of 400V AC, making it suitable for industrial and commercial electrical installations.

This 3-pole contactor delivers a contact current of 9 A and a power rating of 4 kW, ideal for motor control and resistive load applications. The device offers quick switching times with durable mechanical operation rated for 10 million cycles, providing reliable and long-lasting service.

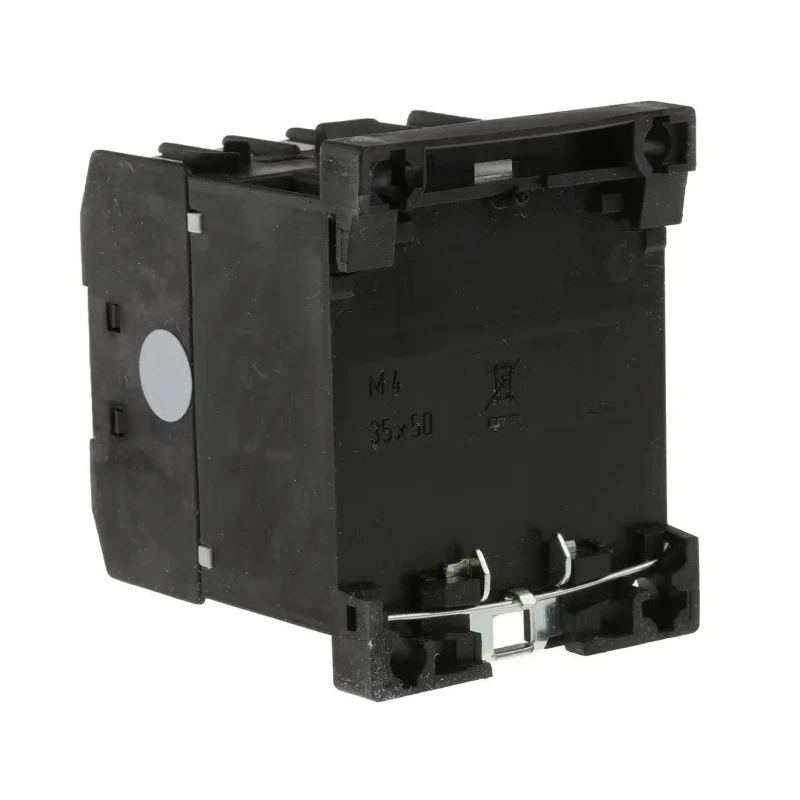

Installation is versatile with options for surface mounting using screws or clipping directly onto a 35mm DIN rail. The contactor’s IP20 rating ensures terminal safety and protects against accidental electric shocks in industrial environments. Operating temperature range from -25°C to +50°C allows use in harsh and varied workplaces.

Additional safety features include short-circuit protection and an impressive 6kV impulse withstand voltage, providing resilience against current and voltage faults. Suitable wire size range is 0.75 to 2.5mm² (18 to 14 AWG), accommodating diverse wiring requirements.

The compact design with dimensions 58mm (length), 45mm (width), and 52mm (depth) optimizes panel space. This contactor complies with international standards including CSA, IEC/EN 60947, UL, and VDE 0660, underlining its reliable performance and safety credentials. Manufactured in Germany, it meets stringent quality assurance criteria.

Designed for motor control and resistive load applications with reliable switching performance. Equipped with a 240V AC coil and 3 normally open contacts for versatile control. Supports contact current up to 9 A and contact voltage of 400V AC.

Can be mounted on DIN rail or surface-mounted using screws for flexible installation. Operates safely in temperatures ranging from -25°C to 50°C. Features a mechanical lifespan of 10 million operations ensuring long durability.

Rated for 6kV impulse withstand voltage and short-circuit protection for enhanced safety. Compact dimensions of 58mm length, 45mm width, and 52mm depth for space-efficient applications. Terminals are screw type with IP20 touch-proof rating protecting against electric shock.

Manufactured in Germany ensuring high-quality standards and compliance with IEC, UL, CSA, and VDE certifications. This Eaton DILEM contactor is ideal for industrial automation, manufacturing plants, and HVAC motor control systems, delivering dependable switching and durability.
