Bourns Wirewound Surface Mount Inductor, 47 μH, Ferrite DR Core, ±10 % Tolerance, 2.7 A, 1307 Package SDR1307

Free Delivery in India | Lowest Global Shipping Charges

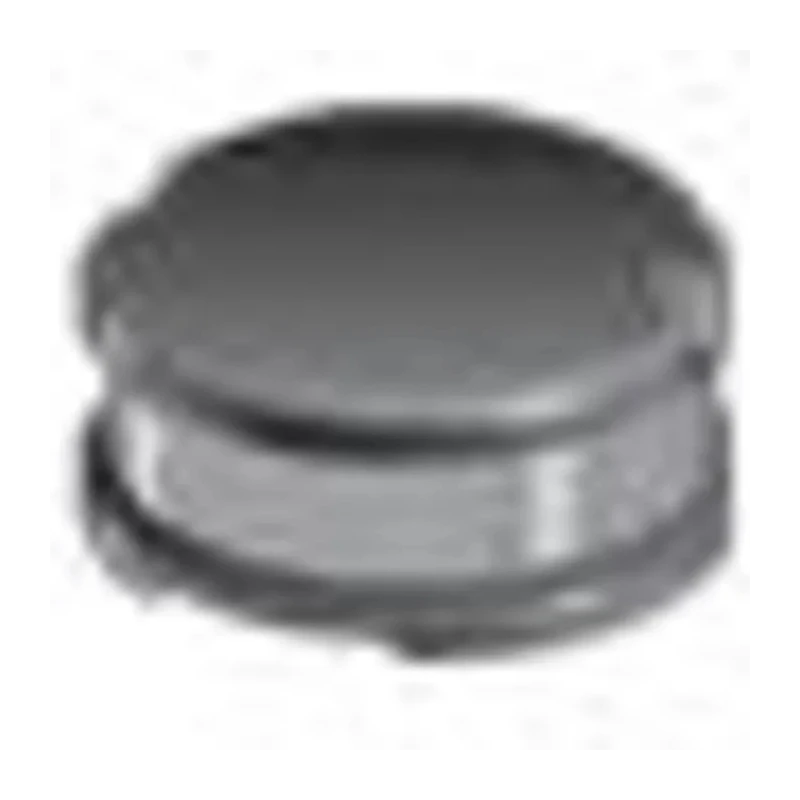

Bourns Wirewound Surface Mount Inductor, 47 μH, Ferrite DR Core, ±10 % Tolerance, 2.7 A, 1307 Package SDR1307

Name: Bourns Wirewound Surface Mount Inductor, 47 μH, Ferrite DR Core, ±10 % Tolerance, 2.7 A, 1307 Package SDR1307
Brand: BOURNS
SKU: 155047
Price: 0.86 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Diameter	13mm
Brand	Bourns
Height	7mm
Length	13mm
Model	SDR1307
Depth	13mm
Packaging	Tape & Reel
Series	SDR1307
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite DR
Inductance	47μH
Standards/Approvals	RoHS
Package/Case	1307
Maximum DC Current	2.7A
Maximum DC Resistance	82mΩ
Inductance Tolerance	±10 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	7.5MHz
Minimum Quality Factor	24
Inductor Construction	Ferrite Core

Key Features

Rated for a maximum DC current of 2.7 amperes.
Compact 1307 package with 13 mm diameter and 7 mm height.
Maximum DC resistance of 82 milliohms ensures minimal power loss.
Designed for operation between -40°C and 125°C ambient temperatures.
Maximum self-resonant frequency of 7.5 MHz ideal for high-frequency applications.
Available in tape and reel packaging for automated assembly.
RoHS compliant with unshielded ferrite core construction.
Suitable for input/output of DC/DC converters and power supplies in portable electronics.

Product Description

Bourns SDR1307 wirewound Surface Mount Inductor combines a ferrite DR core with a compact 1307 package size, measuring 13 mm in diameter and 7 mm in height. It provides 47 microhenry inductance with ±10 % tolerance, making it suitable for precise current filtering applications.

The inductor supports a maximum DC current of 2.7 amperes with a low resistance of 82 milliohms, minimizing energy losses during operation. It is designed to perform reliably in temperature ranges from -40°C to 125°C, and its maximum self-resonant frequency of 7.5 MHz ensures stability in high-frequency circuits.

This unshielded surface mount component is RoHS compliant and comes packaged in tape and reel for ease of automated PCB assembly processes. Its ferrite core construction enhances magnetic performance for applications such as DC/DC converter input and output stages, power supply filters for portable communication equipment, camcorders, LCD televisions, and CD players.

The SDR1307 series is engineered to support industrial, commercial electronics, and laboratory uses, providing effective inductance in compact surface mount form. This inductor enables designers to efficiently filter and regulate currents in space-constrained devices.

Rated for a maximum DC current of 2.7 amperes. Maximum DC resistance of 82 milliohms. Operating temperature range from -40°C to 125°C. Self-resonant frequency up to 7.5 MHz. Ferrite DR core material with unshielded construction.

Compliant with RoHS directives. Tape and reel packaging suitable for automated manufacturing. Explore Bourns inductors and other electronic components for precise industrial and commercial electronics solutions on EnvMart.
