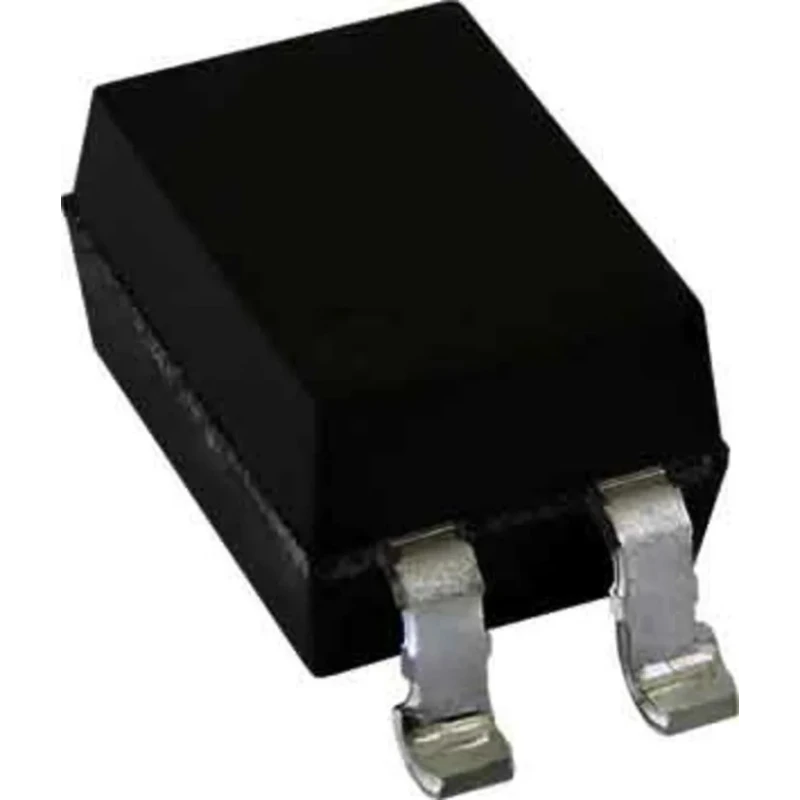

Vishay Single Channel Surface Mount Optocoupler 4-Pin SMD LH1546ADF
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Model | LH1546ADF |
| Mount Type | Surface |
| Series | LH1546 |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577 |
| Maximum Forward Voltage | 1.45V |
| Number of Pins | 4 |
| Typical Rise Time | 0.13ms |
| Typical Fall Time | 0.05ms |
Key Features
- Single channel solid state relay with SPST normally open switch configuration.
- Uses GaAlAs LED for control and MOSFET output switches for fast switching.
- Maximum forward voltage of 1.45 V ensuring efficient LED operation.
- High isolation voltage of 5300 VRMS for robust electrical isolation.
- Typical rise and fall times of 0.13 ms and 0.05 ms respectively for quick response.
- Maximum input current rating of 50 mA suitable for typical control circuits.
- Operates reliably in a temperature range from -40°C to 85°C.
- Package type is SMD with 4 pins for compact and easy PCB mounting.
Product Description
Vishay LH1546ADF is a single channel solid state relay configured as a 4-pin Surface Mount Device (SMD) optocoupler. It features a gallium aluminum arsenide (GaAlAs) LED for input actuation and MOSFET switches at the output to provide a reliable, fast, and low-noise switching solution. This solid state relay replaces electromechanical relays in various applications requiring electrical isolation and long service life.
The device offers a maximum forward LED voltage of 1.45 V with a maximum input current of 50 mA. It has a high isolation test voltage of 5300 VRMS that provides safety and prevents electrical leakage between input and output circuits. The typical rise and fall times are 0.13 ms and 0.05 ms respectively, enabling fast switching performance in telecommunications, metering, and security equipment.
This optocoupler operates efficiently in a temperature range from -40°C up to 85°C, suitable for industrial and commercial environments. The compact 4-pin SMD package facilitates automated PCB assembly and space-saving designs. The component complies with UL1577 standards ensuring reliability and safety.
Single channel SPST normally open solid state relay reduces mechanical wear. GaAlAs LED and MOSFET combination allow low switching noise and high switching speed. High isolation voltage of 5300 VRMS provides robust electrical isolation.
Wide operating temperature range enables use in harsh conditions. Compact 4-pin surface mount design supports modern PCB layouts. Typical rise time of 0.13 ms and fall time of 0.05 ms assure fast response. Maximum forward voltage of 1.45 V ensures LED efficiency.
Maximum input current of 50 mA suits common driver circuits. Meets UL1577 standards for industrial quality and safety. Manufactured in Malaysia maintaining consistent quality control.
This optocoupler is ideal for use in industrial automation, telecommunications switching, metering, and security equipment applications requiring reliable solid-state electrical isolation. Explore the wide range of Vishay optocouplers available for advanced electronic systems with high performance and durability.
Browse more Optocouplers and Vishay products on EnvMart for your electronic component needs.
